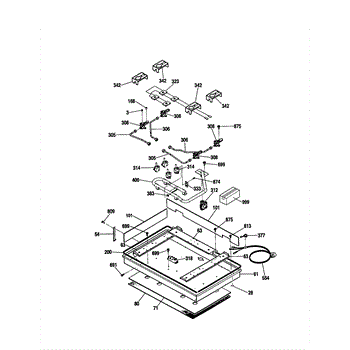

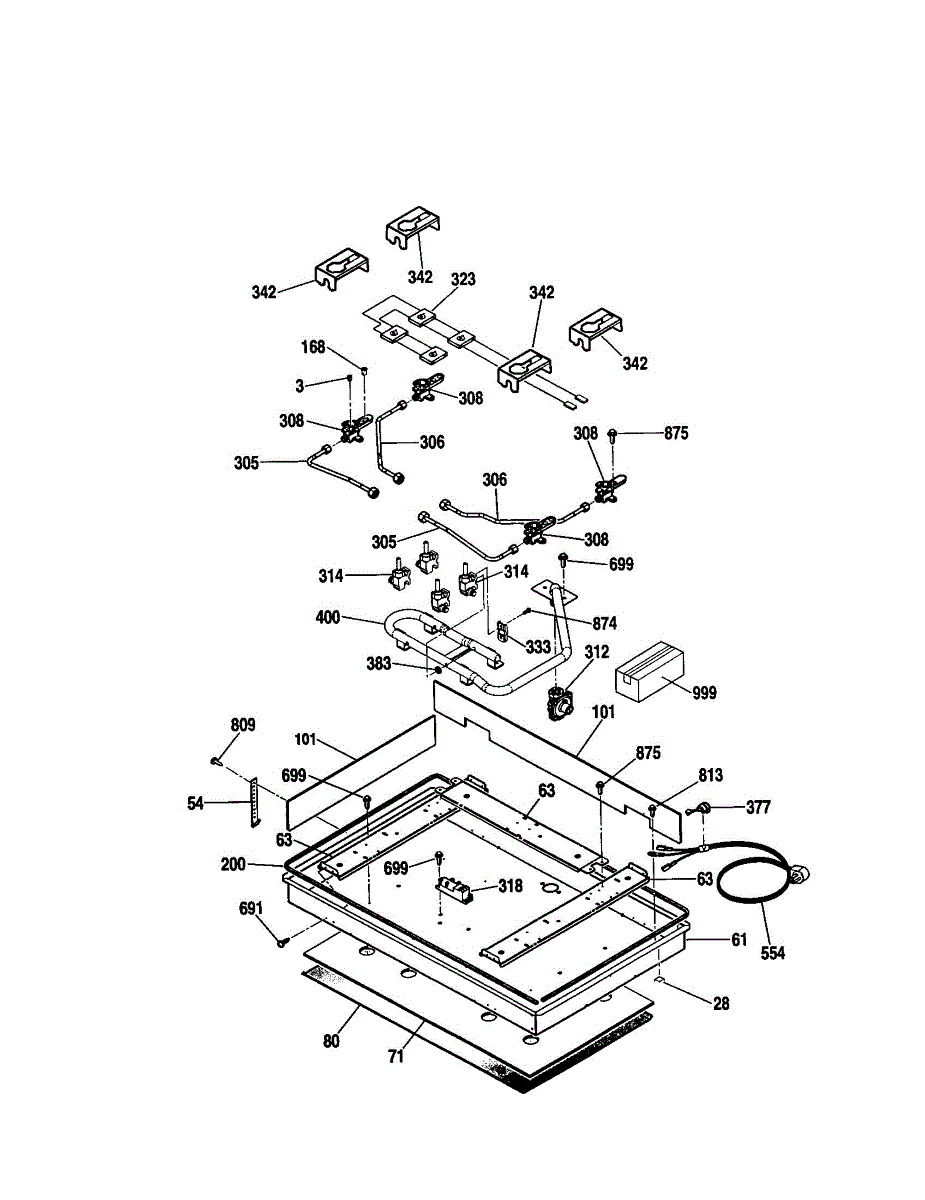

Parts for Kenmore 911.32222101 (91132222101, 911 32222101): Burner Parts

Natural gas

Liquid propane

Liquid propane

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right front

Left front

Left rear

Right rear

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

Right angle

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a replacement mounting screw used to secure panels and components on compatible appliances. It restores proper fit and prevents rattling or loose parts for a safe, stable appliance. What it does:

• Secures panels, trim, brackets or small components in place
• Replaces missing or stripped fasteners that cause rattling or loose parts
• Helps maintain appliance alignment and safe operation when installed properly
• Small fastener for interior or exterior appliance assemblies

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver and hand-start threads to avoid cross-threading
• Do not overtighten; snug until secure to prevent stripping or damaging parts

Black. 8-18 AB HXW 3/8
