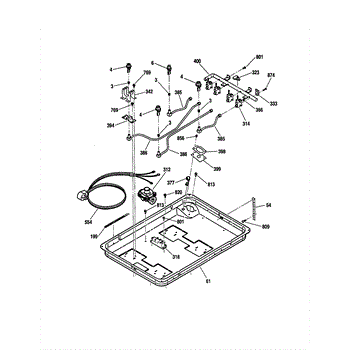

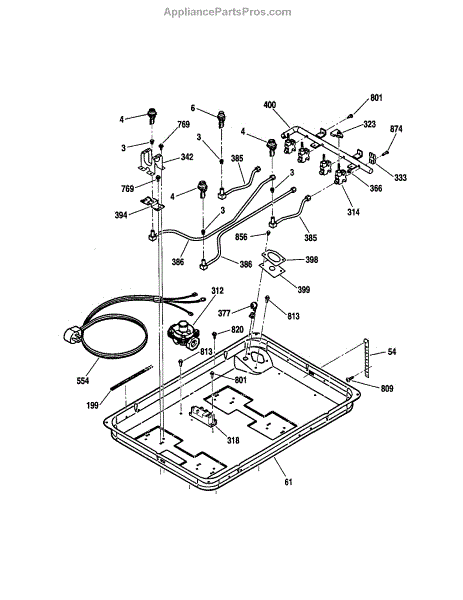

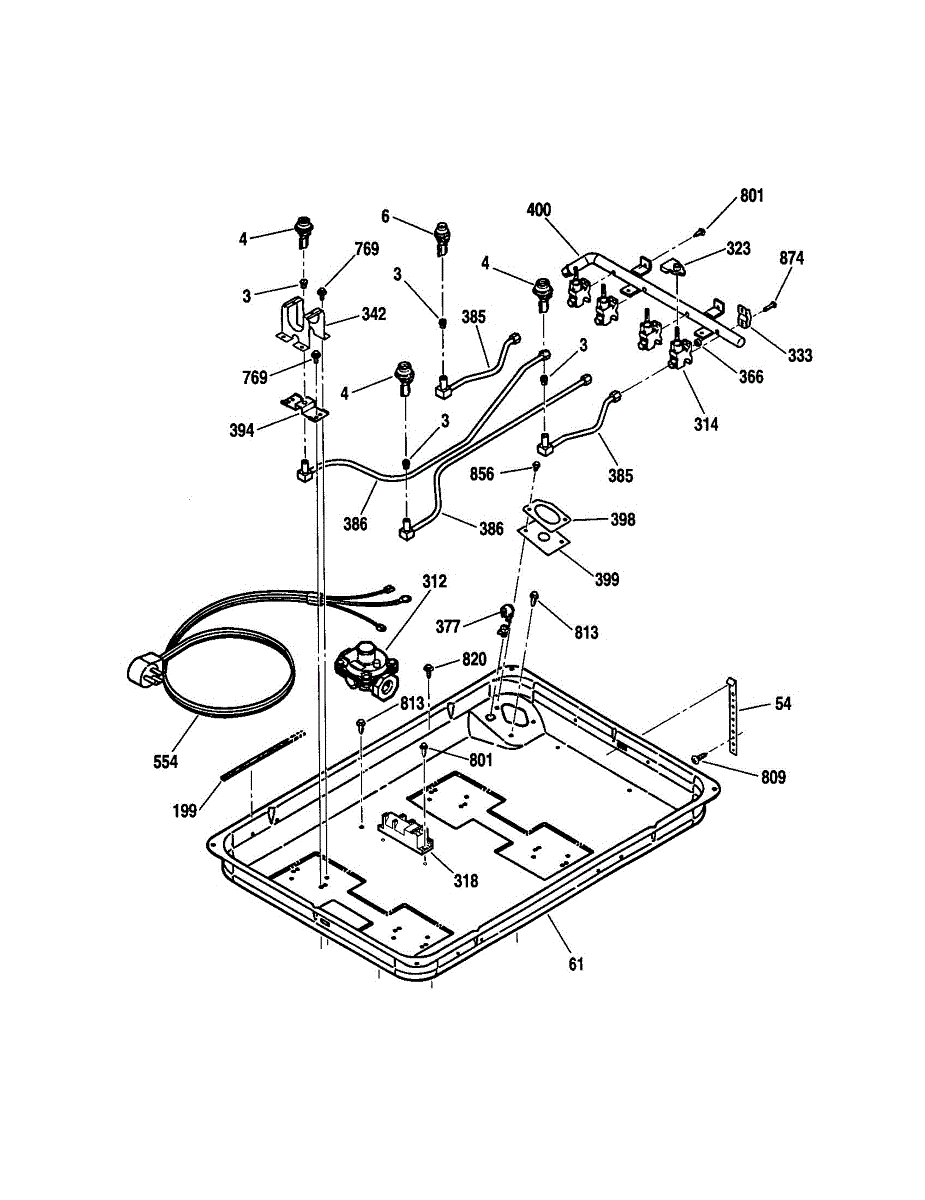

Parts for Kenmore 911.32385100 (91132385100, 911 32385100): Burner Parts

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

This insulator protects and cushions the appliance control module, helping prevent electrical shorts and physical damage to the board. It's a simple replacement that supports reliable control operation. What it does:

• Separates the control/module from the chassis to prevent shorting and rubbing
• Cushions the module to reduce vibration-related connector issues
• Helps keep wiring and components positioned correctly for consistent electrical contact
• Can reduce intermittent control problems caused by loose or damaged insulation

• Disconnect power before beginning any repair to avoid shock or damage
• Access the control panel or console per your appliance's service instructions
• Fit the insulator under/around the module as shown in the parts diagram; ensure correct orientation and secure mounting hardware
• Avoid touching circuit board components; if connectors were removed, reseat firmly before reassembly

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

The Switch Gas Valve is an OEM part for GE ranges. It is responsible for controlling the flow of gas to the burners, allowing them to ignite and maintain a steady flame for cooking.

Causes of a bad switch gas valve can include wear and tear over time, buildup of debris or grease, or damage from repeated use or accidental impact. These issues can hinder the valve's ability to regulate gas flow effectively.

Symptoms of a bad switch gas valve include:

• Burners not igniting
• Irregular or weak flame
• Gas odor near the stove
• Inconsistent burner performance

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement mounting screw used to secure panels and components on compatible appliances. It restores proper fit and prevents rattling or loose parts for a safe, stable appliance. What it does:

• Secures panels, trim, brackets or small components in place
• Replaces missing or stripped fasteners that cause rattling or loose parts
• Helps maintain appliance alignment and safe operation when installed properly
• Small fastener for interior or exterior appliance assemblies

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver and hand-start threads to avoid cross-threading
• Do not overtighten; snug until secure to prevent stripping or damaging parts
