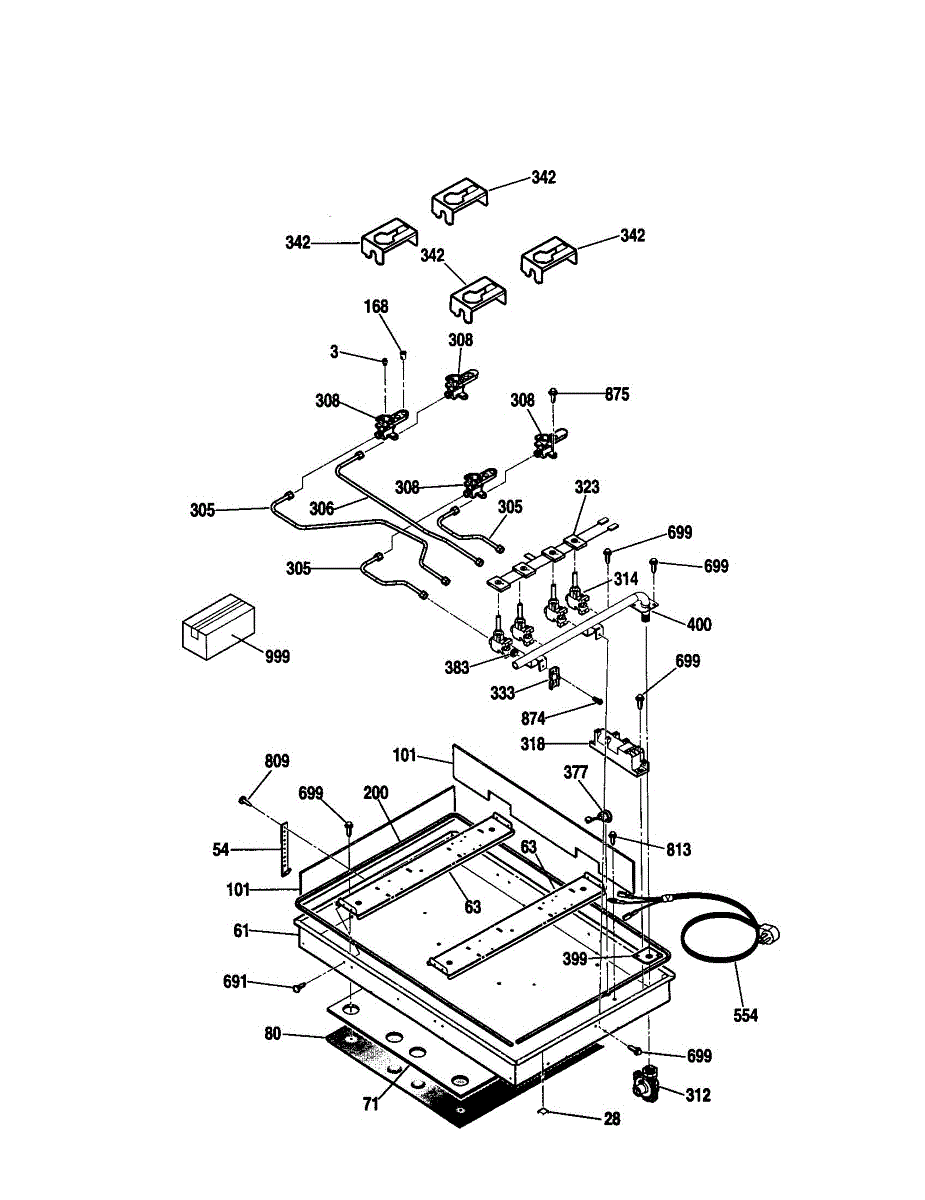

Parts for Kenmore 911.33204101 (91133204101, 911 33204101): Burner Parts

Natural gas burner orifice spud for cooktops and ranges. Installs in the burner assembly to control gas flow. Replace if damaged or converting fuel type.

Liquid propane

Natural gas orifice spud for cooktop burners. Installs at burner base to regulate gas flow. Replace if damaged, worn, or converting fuel type.

LP orifice spud directs propane gas flow to the burner on gas cooktops and ranges. Replace if cracked, worn, or missing to restore proper gas metering.

Burner orifice spud for cooktop or range. Installs in burner assembly to regulate gas flow. Replace if damaged, worn, or converting between fuel types.

Natural gas orifice spud for cooktop burner assembly. Needed when converting from LP to natural gas or replacing damaged orifice threading.

Converting your cooktop from natural gas to liquid propane? This LP gas orifice spud enables proper fuel conversion for specific burner positions.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

Replace worn felt pads that cushion your range door and prevent rattling or gaps. Essential when door closes unevenly or makes noise. Confirm fit with model.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

What's included:

• 1 hold-down bracket

Install notes:

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

Replace your cooktop's burner shield if it's cracked, warped, or damaged. This protective component guards internal parts from heat and spills.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Replace worn cooktop foam seal tape to prevent heat loss and ensure proper insulation. Essential for maintaining energy efficiency. Verify fit with your model.

Burner tube assembly for gas cooktops. Delivers gas from the valve to the burner head. Replace if cracked, corroded, or damaged to restore proper fit.

Long

Used for the large burners

Used for the small burners

Gas pressure regulator for cooktops and ranges. Installs on the gas supply line to control flow to burners. Replace if cracked, leaking, or missing.

This gas valve kit replaces a failed range/oven gas control valve to restore reliable gas flow and ignition control. Designed to match OEM function for safe, consistent burner operation. What it does:

• Controls gas flow to the burner assembly for normal ignition and heating
• Replaces worn or leaky valves that can cause weak or no flame
• Helps resolve intermittent ignition or valve-sticking symptoms
• Works with the oven/range's existing manifold and burner components

• One gas valve kit as shown

• Shut off gas supply and power to the appliance before servicing
• Use proper tools and follow OEM service diagram for alignment and wiring
• Do not modify the part; replace any damaged gaskets or seals during installation

Fix burners that won't ignite or spark continuously. This spark module controls ignition for all surface burners. DIY repair in about 45 minutes.

The Harness Switch is an OEM replacement part for GE gas ranges. Internally wired to the electronic control board, it regulates power distribution to the burner ignitors.

When a surface knob is turned, the switch instantly routes electricity enabling the igniter to spark and ignite selected gas jets beneath cookware. Integrated temperature sensors then signal switch maintained burner activity.

Causes of failure relate to standard thermal cycling without damage. Accumulated grime could potentially disrupt connections over years of stovetop cooking particulates.

Symptoms include:

• Inability to light specific gas burners by knob selection
• Range may indicate error codes relating to unresolved ignition sequences.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right angle

Seals the gas manifold connection on your cooktop to prevent leaks. Replace if you notice gas odor or flame issues. Confirm fit with your model number.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.
