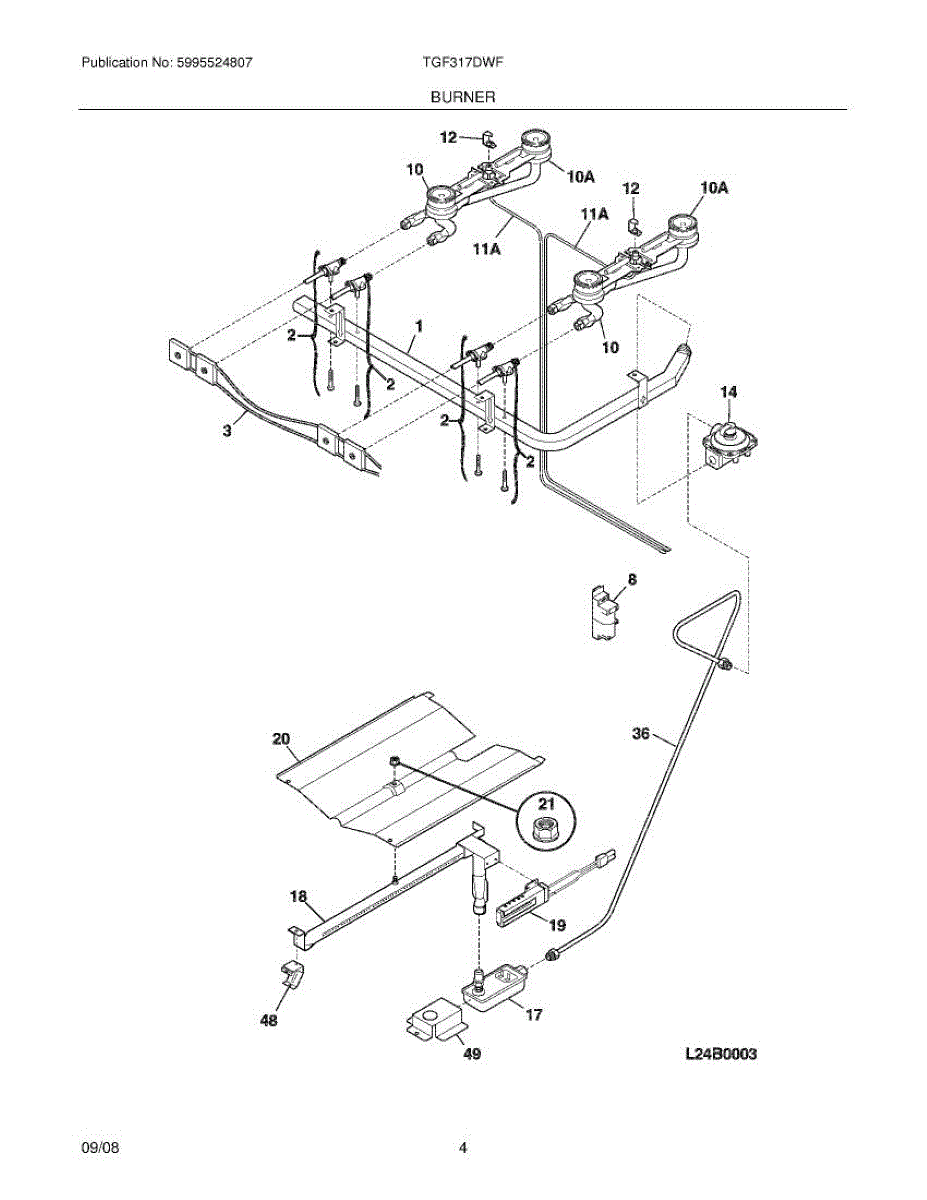

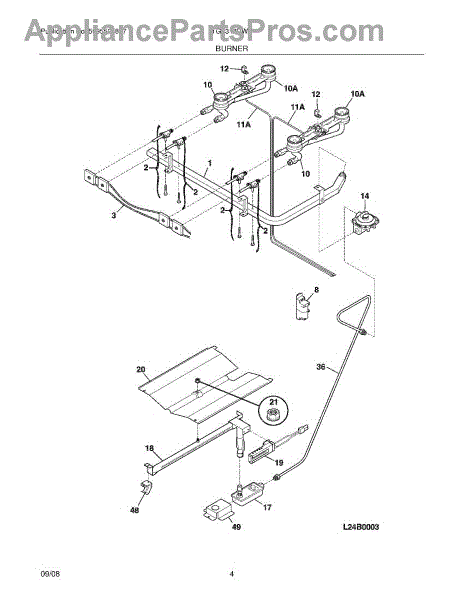

Parts for Tappan TGF317DWF: 05 - Burner Parts

This is a replacement surface burner gas valve. It controls gas flow to a cooktop/range burner so you can safely turn the flame on/off and adjust heat. Replacing a worn or leaking valve restores precise flame control and safe shutoff. What it does:

• Opens and closes to supply gas to a surface burner
• Provides smooth flame modulation from low to high
• Helps ensure a complete shutoff in the Off position
• Common symptoms: knob hard to turn or loose, gas odor at the control area, flame won't adjust or won't shut off completely

• 1 gas valve

• Disconnect power and shut off the gas supply before servicing
• Note valve orientation and tubing layout before removal
• Use an approved gas-rated thread sealant on male pipe threads; do not overtighten
• After installation, leak-test all connections and verify proper burner operation

This LED light module illuminates the refrigerator compartment for clear, even lighting. A failing module can leave sections of the fridge dim or dark, making it hard to see food items.

• Provides bright, efficient interior lighting
• Helps maintain consistent illumination across the compartment
• Common signs of failure include flickering, dim, or non-working light
• Also trips off after a few seconds when the module is failing

• Disconnect power to the appliance before servicing
• Use proper ESD precautions when handling electronic components
• Match connector orientation and seating before reassembly
• If multiple lights are out, diagnose each module and the circuit before replacing

This surface burner mounts on the cooktop and directs gas to produce a steady, controllable flame. Replace a worn or clogged burner to restore fast ignition and consistent heat from your range's top burner positions.

• Mixes and distributes gas to create the surface cooking flame
• Works with the spark igniter/electrode for reliable lighting
• Helps maintain an even flame pattern and stable heat
• Symptoms can include weak or uneven flames, yellow tips, delayed ignition/repeated clicking, or a burner that won't light

• Disconnect power and shut off the gas supply before servicing
• Remove the grate and burner cap, then lift off the old burner; clean the mounting surface
• Align the new burner with the igniter/electrode and locator features; ensure it sits flat and centered
• Reassemble, restore gas/power, and test for proper ignition and a clean, stable flame

The Top Burner is an OEM part for Frigidaire ranges. This burner is designed to provide a reliable flame for cooking on the stovetop. It ensures consistent heating and efficient cooking performance, fitting seamlessly into the design of your range.

Common causes of a bad burner include clogging from food spills, corrosion due to exposure to moisture, or physical damage from heavy cookware.

Symptoms of a bad top burner include:

• Uneven heating or inconsistent flame
• The burner not igniting properly
• Visible damage or corrosion on the burner
• A weak or flickering flame

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This top burner spark igniter creates the spark that lights gas at the surface burner. Replacing a worn or cracked electrode restores fast, reliable ignition and helps stop burners that click but won't light.

• Generates a high-voltage spark at the burner head to ignite gas
• Common symptoms: surface burner won't light, no visible spark, intermittent ignition, or constant clicking
• Cracked ceramic, contaminated tip, or heat damage can prevent a good spark
• Direct replacement for the failed electrode on a single burner

• Disconnect power and shut off gas; allow the appliance to cool before service
• Note lead routing and bracket orientation; mount using the existing hardware per your model
• Keep the ceramic insulator clean and dry; avoid bending or touching the tip
• After installation, ensure burner base and cap are seated correctly; verify spark and ignition

The Pressure Regulator is an OEM part for Frigidaire gas ranges. It controls incoming gas flow to the burner valves and maintains consistent heat levels.

Causes of a bad pressure regulator can include cracks or leaks developing in the seal over time, clogs or debris buildup affecting flow control, or damage to pressure monitoring components.

Symptoms of a bad pressure regulator include:

• Fluctuating burner flames and heat output
• Inability to stabilize gas pressure for predictable cooking
• Yellow or sooty flames indicating inefficient combustion
• Safety risk of gas leaks at increased pressures

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Safety Valve is an OEM replacement part for Frigidaire gas ranges. This valve controls gas flow to the oven burner.

Causes of a faulty oven safety valve can include wear of sealing surfaces due to prolonged heating and cooling during cooking cycles. Exposure to food or liquid residues over time may also affect valve function.

Symptoms of a bad oven safety valve include:

• The oven not heating up despite the igniter working correctly
• A smell of gas indicates a leak or uncontrolled release
• Inconsistent oven temperatures or heating patterns
• The oven failed to maintain the set temperature

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Restore reliable ignition and even oven heat. This oven burner channels gas from the safety valve and mixes air to produce an even flame across the bake area, helping your range preheat properly and maintain steady baking temperatures.

• Distributes the gas/air mixture for the bake cycle and ignites along the burner ports for a consistent flame
• Supports even heat across the oven cavity to reduce hot and cold spots while baking
• Common signs of failure: no bake flame or intermittent ignition, long preheat times, uneven baking, visible rust or holes in the burner
• Works in conjunction with the oven igniter; inspect the igniter if weak ignition persists

• Disconnect power and shut off the gas supply before servicing
• Remove oven racks, bottom panel, and flame spreader to access the burner
• Unfasten the burner, lift it off the orifice, and transfer the existing igniter and hardware to the new burner if needed
• Reinstall, ensure proper alignment over the gas orifice, restore gas/power, and verify a stable blue flame

The Oven Burner Ignitor is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven burner ignitor can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven burner ignitor include:

• Failure of the oven burners to ignite or light consistently
• Delayed ignition or inconsistent burner lighting
• Visible damage, deterioration, or discoloration of the ignitor element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

Size: 8-18ab x 0.5 inch.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This orifice spud meters gas to the burner on select gas cooking appliances. Replacing a clogged or incorrect spud restores proper flame size and helps ensure safe, efficient burner operation or fuel-type conversion when specified. What it does:

• Meters gas flow from the valve to the burner
• Helps set correct flame height and shape for efficient combustion
• Used during natural gas/LP conversions when specified by your model's instructions
• Helps with symptoms like weak, yellow, or uneven flames, delayed ignition, or flame-out

• 1 orifice spud

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Access the burner/orifice holder per your model's service instructions
• Use the correct wrench to install; do not overtighten
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame appearance

• Orifices are size- and burner-specific. Confirm the correct spud for your model and fuel type before ordering.

Convert your compatible natural-gas range to run on propane with this LP conversion kit. It supplies the factory-matched components to meter LP correctly so burners ignite and perform as intended after a proper conversion.

• Converts select natural-gas ranges for LP operation per the model's instructions
• Helps achieve proper flame size and color after conversion
• Use when installing a range where propane is the fuel source
• Incorrect or unconverted setup may show oversized/yellow flames, soot, or poor simmer

• Shut off gas supply and electrical power; allow all burners to cool before service
• After conversion, set the pressure regulator to LP, verify burner flames, and leak-test all joints with a non-corrosive solution
• Retain removed natural-gas parts for possible future reconversion
