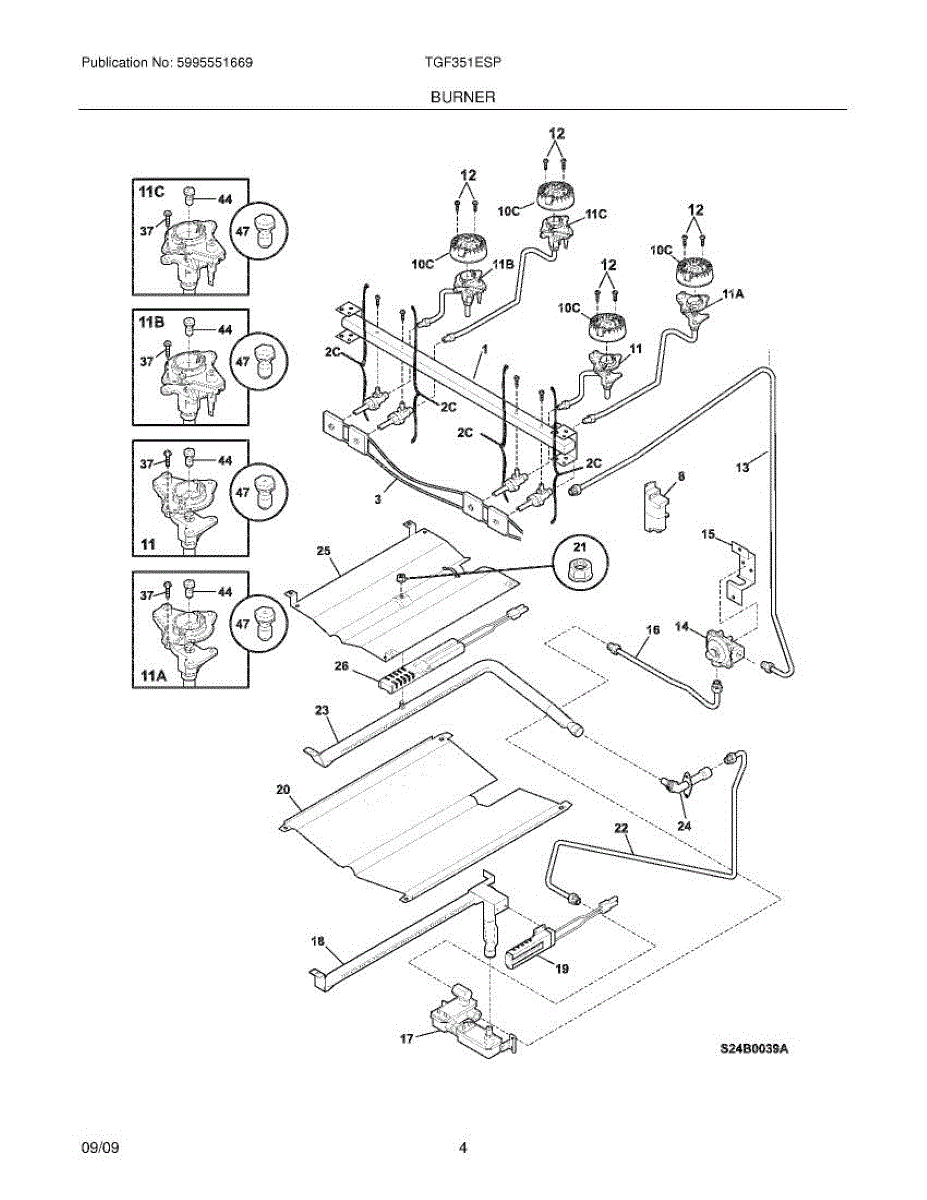

Parts for Tappan TGF351ESP: 05 - Burner Parts

This manifold pipe routes gas from the valve assembly to the oven or cooktop burners, restoring proper fuel distribution for reliable ignition and flame performance. Designed as a direct replacement to maintain safe burner operation. What it does:

• Distributes gas evenly from the main gas valve to individual burners
• Enables burners to light and maintain steady flames
• Helps eliminate weak or no-flame symptoms tied to a damaged or clogged manifold
• Works with the range/oven gas system components for proper combustion

• One manifold pipe

• Turn off the gas supply and power to the appliance before service
• Inspect fittings and replace any damaged gaskets or seals; use pipe sealant appropriate for gas connections if required
• After installation, check all connections for leaks with a gas leak detector or soapy water; do not use an open flame

This is the gas control valve for a surface burner. It regulates gas flow to the burner head so you can ignite the flame and adjust heat output safely and smoothly.

• Controls and meters gas to an individual cooktop/range burner
• Worn or leaking valves can cause hard-to-adjust flames, no flame, or gas odor
• A sticking or stripped valve stem can make the knob hard to turn or fail to shut off fully
• Helps restore precise flame control and reliable ignition

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; work in a well-ventilated area
• Transfer any mounting hardware or orifice components from the old valve
• Check for leaks with an approved leak-detection method after reassembly and gas restoration

This wiring harness routes power and control signals between key components inside your range or wall oven. Replace a damaged harness to restore safe, reliable operation and prevent intermittent heat, shorts, or non-working burners and oven functions.

• Distributes electrical power and signals between controls, switches, heating elements/igniters, and safety components
• Maintains correct connector orientation and wire routing for dependable operation
• Typical symptoms: no heat in oven or on surface burners, intermittent operation, breaker tripping, or visible burnt/melted wiring
• Restores stable connections to reduce arcing and overheating

• Disconnect power at the circuit breaker; for gas ranges, also shut off the gas supply
• Label or photograph all connections and transfer one wire at a time to avoid miswiring
• Route the harness exactly as original; keep away from sharp edges and hot surfaces; secure with existing clips/ties
• If connectors don't match or any terminals are heat-damaged, stop and inspect mating components.

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This gas burner orifice meters the flow of fuel to a burner on your range or cooktop. Replacing a clogged, damaged, or wrong-size orifice helps restore correct flame characteristics for safer, efficient cooking performance.

• Precisely meters gas through a calibrated jet to the burner
• Supports proper flame size and color for the specified fuel (natural gas or LP)
• Symptoms to address can include weak/uneven flame, yellow or sooty flame, delayed ignition, or no flame if the jet is blocked
• Replace if the jet is stripped, damaged, drilled out, or cannot be cleared of debris

• Disconnect electrical power and shut off the gas supply; allow the appliance to cool before service.
• Use the correct orifice for the specific burner position and fuel type; do not over-tighten the brass fitting.
• After installation, verify regulator setting and adjust air shutters (if applicable) for the correct fuel.
• Leak-test disturbed connections with a soap-and-water solution and confirm proper flame before use.

This gas burner orifice meters the flow of fuel to a burner on your range or cooktop. Replacing a clogged, damaged, or wrong-size orifice helps restore correct flame characteristics for safer, efficient cooking performance.

• Precisely meters gas through a calibrated jet to the burner
• Supports proper flame size and color for the specified fuel (natural gas or LP)
• Symptoms to address can include weak/uneven flame, yellow or sooty flame, delayed ignition, or no flame if the jet is blocked
• Replace if the jet is stripped, damaged, drilled out, or cannot be cleared of debris

• Disconnect electrical power and shut off the gas supply; allow the appliance to cool before service.
• Use the correct orifice for the specific burner position and fuel type; do not over-tighten the brass fitting.
• After installation, verify regulator setting and adjust air shutters (if applicable) for the correct fuel.
• Leak-test disturbed connections with a soap-and-water solution and confirm proper flame before use.

The Igniter Orifice Assembly is an OEM component for Frigidaire gas ranges. It is an integrated assembly housing both the electric ignition wire and adjustable gas orifice or restrictor needed for controlled gas flow.

Symptoms of a bad ignitor orifice assembly include:

• Burners failing to light or requiring multiple igniter clicks
• Flames that are irregularly shaped, oversized, or yellow-tipped
• Burners ignite but flame size is not adjustable across settings
• Gas smells were detected without an obvious leak at the connections

Over time, normal use can cause an orifice to deteriorate or crack while ambient gases degrade igniter wires.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Igniter Orifice Assembly is an OEM component for Frigidaire gas ranges. It is an integrated assembly housing both the electric ignition wire and adjustable gas orifice or restrictor needed for controlled gas flow.

Symptoms of a bad ignitor orifice assembly include:

• Burners failing to light or requiring multiple igniter clicks
• Flames that are irregularly shaped, oversized, or yellow-tipped
• Burners ignite but flame size is not adjustable across settings
• Gas smells were detected without an obvious leak at the connections

Over time, normal use can cause an orifice to deteriorate or crack while ambient gases degrade igniter wires.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Regulator is an OEM part for Frigidaire ranges and cooktops. It's designed to maintain a safe and consistent gas flow to the burners, ensuring optimal performance and efficiency during cooking. This regulator adjusts the pressure of the gas coming from your home's supply line to match the requirements of the appliance, allowing for precise temperature control and reliable operation.

Causes of a bad regulator can include general wear and tear over time, exposure to high temperatures or cleaning chemicals that degrade its components, or a malfunction within the regulator itself, such as a stuck valve or broken diaphragm.

Symptoms of a bad Regulator include:

• Inconsistent flame size or color
• Burners not lighting
• A noticeable gas smell when the cooktop or range is on
• Weak or uneven heating performance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

This valve controls gas flow to a range/cooktop surface burner for smooth ignition and precise flame adjustment. Replacing a worn valve helps restore reliable burner lighting, accurate heat control, and safer shutoff.

• Regulates gas to a surface burner for ignition and flame size control
• Sticking or worn internal seals can cause hard-to-turn operation or gas odor
• Failure may prevent the burner from lighting or shutting off completely
• Inconsistent or unresponsive flame adjustment can indicate a failing valve

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; access the valve/manifold per your model's instructions
• Mark and disconnect tubing and any wires; transfer fittings or a separate spark switch from the old valve if applicable
• After installation, restore gas and check all joints with an approved leak-detection solution; verify proper burner operation

This replacement surface burner head restores proper flame on your gas range or cooktop. It mixes gas and air and directs the flame through the ports for even heat and reliable ignition when the original head is clogged or damaged.

• Distributes gas through flame ports for stable, even heating
• Supports quick, consistent ignition when paired with a working igniter
• Helps address weak, uneven, yellow, or noisy flames
• Replaces burner heads that are warped, pitted, cracked, or corroded

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, lift off the old head, and clear debris from the seating area
• Align the new head with the igniter/electrode and locating features; seat it fully and level
• Restore gas and power; verify ignition and check for a uniform flame around all ports

The Oven broil Igniter is an OEM part for Frigidaire ovens and ranges. This component is responsible for igniting the gas in the oven burner, allowing the oven to heat up. It works by drawing electrical current through the igniter filament until it becomes hot enough to ignite the gas, providing the flame necessary for cooking.

Common causes for an Oven Igniter to fail include a burnt-out filament, a break in the igniter's ceramic base, or a malfunction within the igniter's electrical system.

Symptoms of a bad Oven Igniter include:

• Oven not starting or heating up
• Gas smell when the oven is turned on
• Weak or no glow from the igniter element
• Unusual noises when attempting to ignite the gas

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement baffle is the internal guide that channels flow inside the appliance so it operates as designed. Replace a cracked or missing baffle to restore proper circulation and eliminate rattles from loose or damaged pieces.

• Directs internal airflow/circulation along the intended path
• Shields adjacent components from direct spray, debris, or heat
• Helps maintain consistent performance and reduce vibration/noise
• Replace if the original is cracked, warped, loose, or missing

• Disconnect power before service; allow any hot surfaces to cool
• Use your model's parts diagram to locate the baffle; retain screws/clips for reuse
• Install in the same orientation; do not overtighten to avoid cracking
• Run a brief test to check for proper operation and no noise

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The LP Conversion Kit is an OEM part for Frigidaire gas appliances. This kit includes all necessary parts to convert a gas appliance from natural gas to liquid propane (LP), ensuring proper and safe operation with the desired fuel type.

Over time, or when changing fuel sources, a conversion kit is essential. Causes for needing a conversion kit include moving to a location with a different gas supply, upgrading the appliance, or ensuring compatibility with available fuel types. Using the wrong type of gas without conversion can lead to inefficient performance or safety hazards.

Symptoms indicating the need for a conversion kit include:

• Poor burner performance
• Yellow or inconsistent flames
• Difficulty igniting burners
• Incorrect appliance function for the current gas type

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This support bracket secures and stabilizes internal appliance components to keep assemblies aligned and reduce vibration. Simple replacement restores proper mounting where worn or damaged brackets allow movement. What it does:

• Provides a secure mounting point for internal parts and assemblies
• Keeps panels and components aligned to prevent rubbing or misalignment
• Reduces rattling or vibration caused by a broken or loose bracket
• Commonly replaced when brackets are bent, cracked, or missing fasteners

• Disconnect power and water (if applicable) before starting any repair.
• Keep track of all fasteners and mounting hardware; some original screws may be reused.
• Use basic hand tools; avoid overtightening to prevent damage to bracket or mounting points.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal
