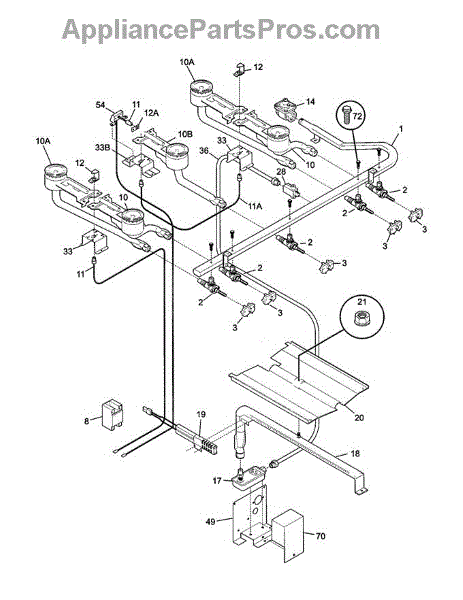

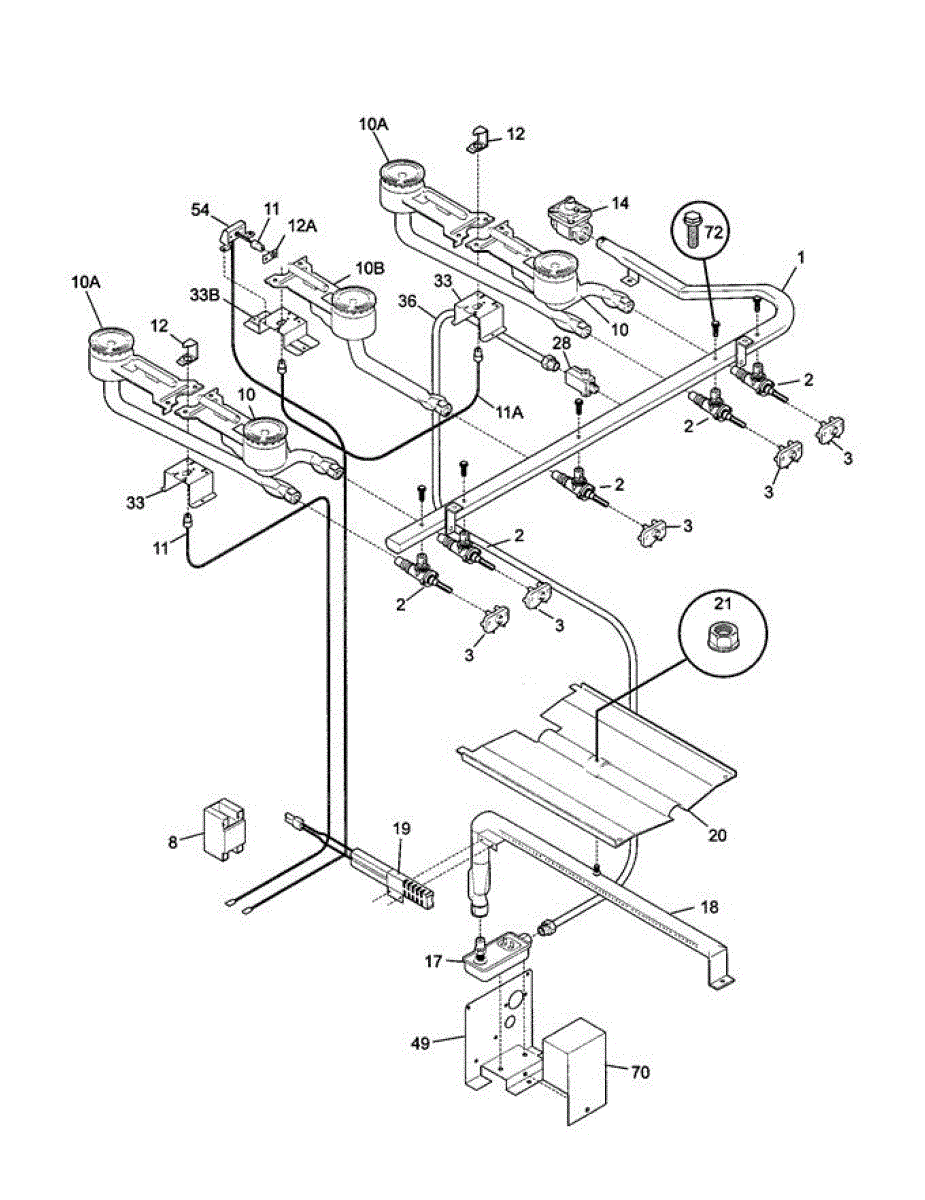

Parts for Tappan TGF605WFW6: Burner Parts

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This small replacement retainer secures the griddle igniter so the igniter stays correctly positioned for reliable spark and consistent lighting. It restores proper alignment to help the griddle burner light safely and evenly. What it does:

• Holds the griddle igniter in place so the igniter tip stays aligned with the burner for consistent sparking
• Prevents the igniter from shifting or touching adjacent parts that can cause misfiring or damage
• Common symptom fix: griddle burner fails to light or sparks but flame does not establish due to misaligned igniter
• Helps maintain safe burner operation by keeping the igniter stable during use

• One igniter retainer specific to griddle burner assemblies

• Disconnect electrical power and shut off gas supply before servicing gas components
• Handle ceramic igniters and the retainer carefully; avoid impact and avoid bending the igniter electrode
• Reinstall so the igniter tip is properly centered over the burner slot; do not overtighten fasteners

This pressure regulator controls gas flow to the range valve, helping maintain steady burner operation for safe, consistent flames. It replaces a worn or failed regulator to restore proper gas delivery and reliable ignition performance. What it does:

• Regulates incoming gas pressure to the range's control valve for steady burner flames
• Helps correct issues like weak or uneven flames and burners that struggle to light
• Reduces risk of high-pressure surges that can affect burner performance
• Works as a direct replacement when the existing regulator is faulty or leaking

• Turn off the gas supply and power before starting any work; always follow appliance shutoff procedures
• Inspect fittings and seals; use proper thread sealant for gas-rated connections if required by the manufacturer
• After installation, perform a gas leak check and verify correct burner operation and flame appearance
