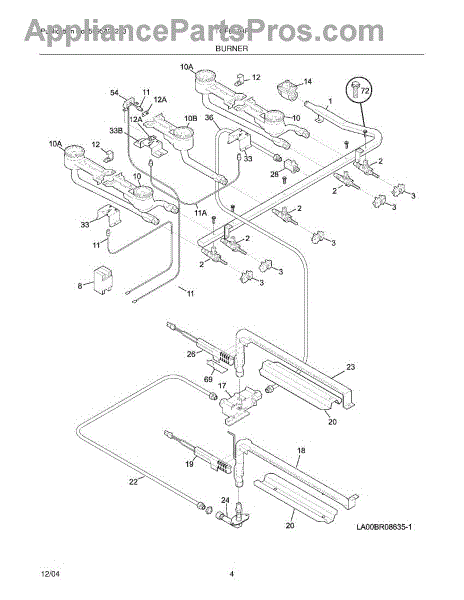

Parts for Tappan TGF657BFB6: 05 - Burner Parts

If your gas range burners won't ignite or you hear no clicking sound, the spark module often fails first. Moderate difficulty repair in 30-45 minutes.

Replacement burner top for your range cooktop. Installs on the surface where cookware sits. Replace if cracked, corroded, or worn to restore appearance.

This small replacement retainer secures the griddle igniter so the igniter stays correctly positioned for reliable spark and consistent lighting. It restores proper alignment to help the griddle burner light safely and evenly. What it does:

• Holds the griddle igniter in place so the igniter tip stays aligned with the burner for consistent sparking
• Prevents the igniter from shifting or touching adjacent parts that can cause misfiring or damage
• Common symptom fix: griddle burner fails to light or sparks but flame does not establish due to misaligned igniter
• Helps maintain safe burner operation by keeping the igniter stable during use

• One igniter retainer specific to griddle burner assemblies

• Disconnect electrical power and shut off gas supply before servicing gas components
• Handle ceramic igniters and the retainer carefully; avoid impact and avoid bending the igniter electrode
• Reinstall so the igniter tip is properly centered over the burner slot; do not overtighten fasteners

Controls gas flow to range burners. Replace if regulator is worn, leaking, or damaged to restore proper gas delivery and maintain safe operation.

Range oven not heating? Safety valve controls gas flow to burners. Requires voltage testing at igniter connection. Moderate difficulty repair.

Bake element for electric ranges. Installs at the bottom of the oven cavity. Replace if cracked, broken, or damaged to restore proper heating function.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Grease drain tube for microwave installations. Replaces cracked, damaged, or missing tubes that channel grease away from the unit. Essential component.

Broiler won't heat or light? This range broil burner igniter glows to ignite the gas broiler. Moderate DIY repair restores reliable browning.

Fix a burner that won't light, won't adjust, or stays on with this range top burner valve. Controls gas flow to surface burners. Moderate DIY repair.

Valve mounting screw for cooktop gas valves. Replace if screw is stripped, corroded, or missing during valve service or burner assembly repairs.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
