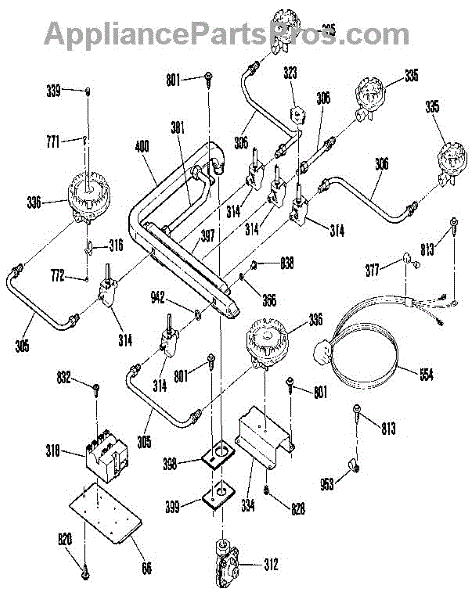

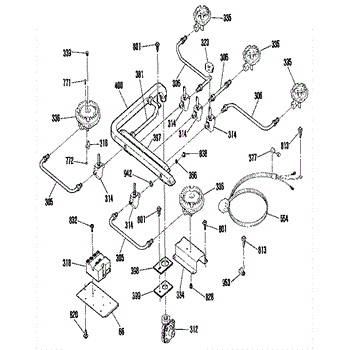

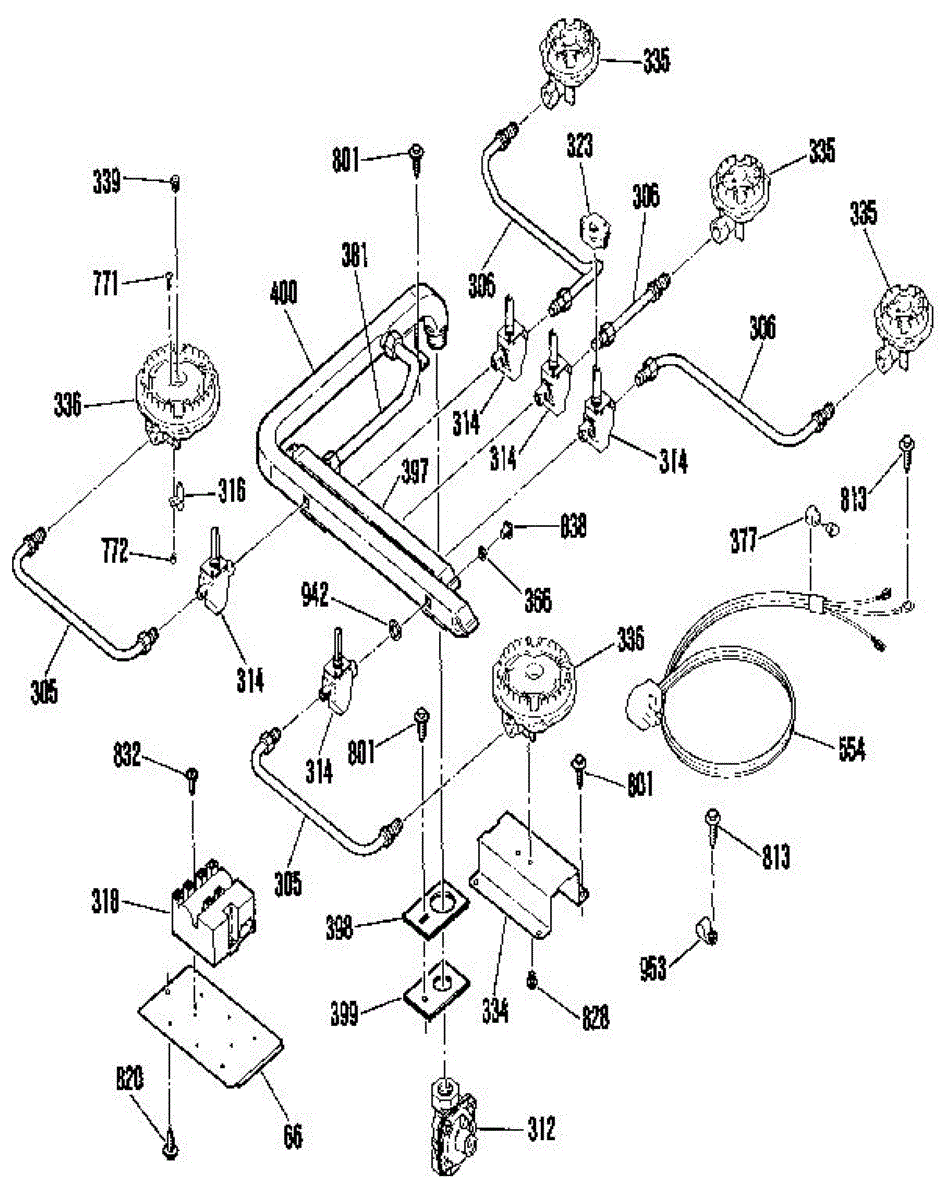

Parts for Kenmore 911.3312590 (9113312590, 911 3312590): Burner Section Parts

This electronic component generates the electrical spark needed to ignite gas burners, typically mounted near the cooktop burners. Replace if burners won't light, produce weak sparks, or spark continuously without stopping.

This surface burner valve switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a faulty switch restores consistent clicking and reliable ignition on the affected cooktop burner. What it does:

• Mounts to the surface burner gas valve and closes the ignition circuit when the knob is turned to Lite
• Sends power to the spark module to create the clicking needed to ignite the flame
• Symptoms may include: burner won't spark, intermittent ignition, continuous clicking with knobs off, or a burner lights only when another knob is turned

• One valve switch

• Disconnect electrical power and shut off gas supply; allow the cooktop/range to cool
• Remove the knob and front panel or manifold cover to access the valve area
• Note wire positions, transfer the wires to the new switch, and secure it on the valve stem in the same orientation
• Reassemble, restore power and gas, then test burner ignition

Fix burners that won't spark or click constantly with this igniter switch. Mounts on the gas valve stem to activate spark ignition. Easy 15-minute repair.

This burner support secures a cooktop burner and helps position the burner head for even flame distribution. It restores proper burner alignment so pots heat more evenly and the cooktop looks correct. What it does:

• Holds the burner head in place on a gas range or cooktop
• Keeps the burner properly centered for consistent heating
• Prevents burner wobble and poor burner-to-grate fit
• Can resolve issues with uneven cooking or unstable burner assemblies

• Turn off power and gas supply to the appliance before servicing
• Remove grates and burner caps, then lift out the old support and seat the replacement the same way
• Inspect surrounding cooktop surfaces and porcelain enamel for damage when reinstalling

Small natural gas orifice for cooktop burners. Replaces worn, clogged, or missing orifices that affect flame distribution and burner performance.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

This washer secures components inside your range. Replace if the original is lost, stripped, corroded, or damaged during service or repair work.

This is the official owner's manual that explains safe operation, basic care, and feature overviews so you can use your appliance confidently and keep it working as intended. What it does:

• Describes controls, settings, and normal operation in plain language
• Lists safety warnings and handling precautions to reduce risk during use
• Provides basic maintenance and care guidance to prevent common problems
• Offers troubleshooting tips for common symptoms like no power, unusual noises, or unexpected cycle behavior
• Helps you identify when service is needed

• Read safety and installation sections before first use
• Follow all electrical and grounding instructions; disconnect power before servicing
• Keep the manual for future reference and for service use
• For repairs or replacement parts, contact a service technician
