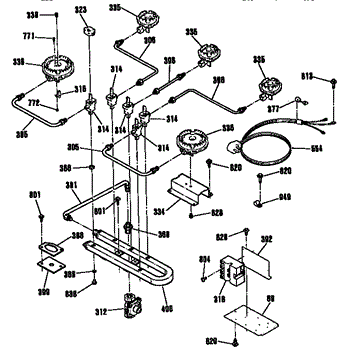

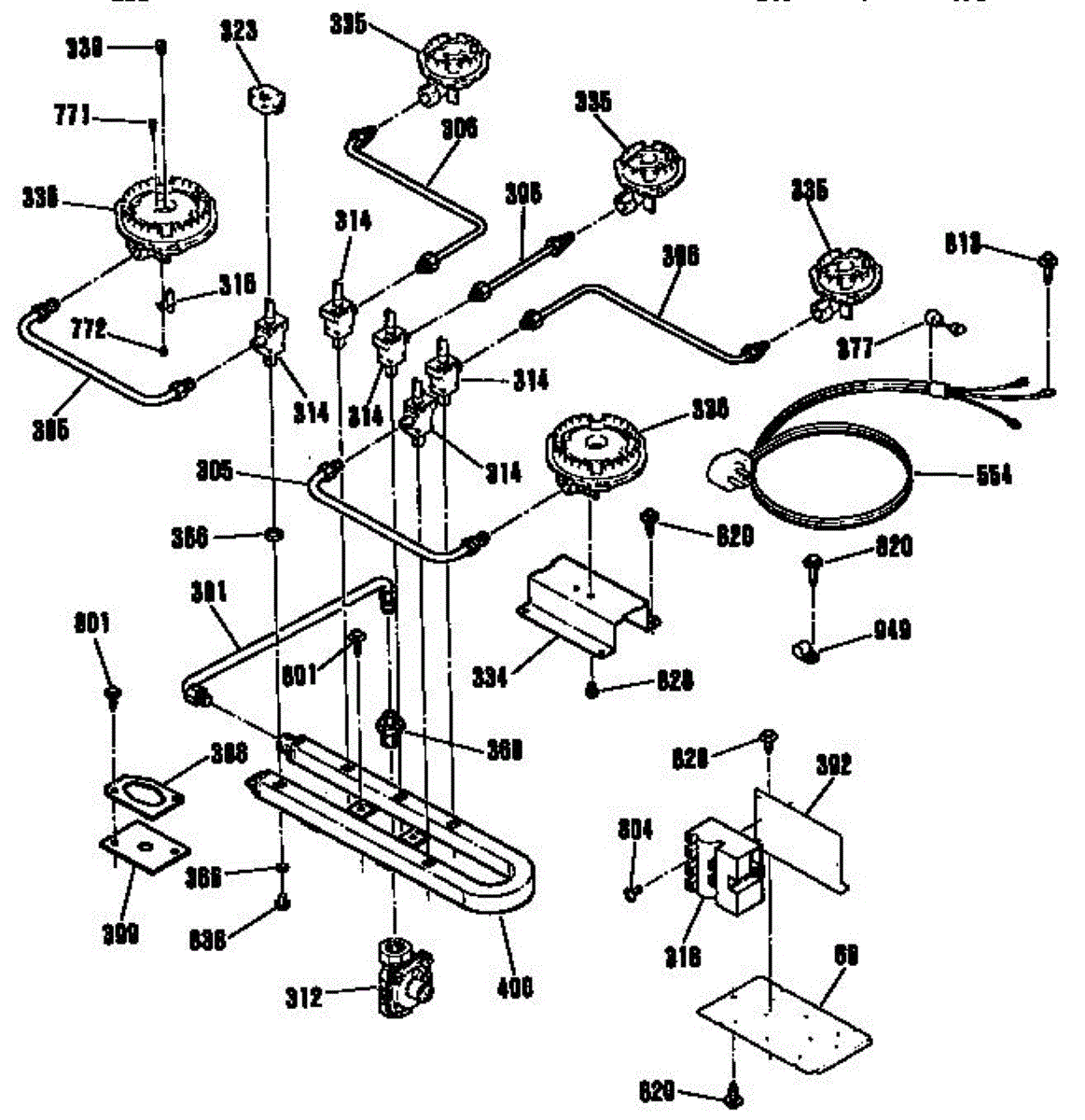

Parts for Kenmore 911.3312992 (9113312992, 911 3312992): Burner Section Parts

This surface burner valve switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a faulty switch restores consistent clicking and reliable ignition on the affected cooktop burner. What it does:

• Mounts to the surface burner gas valve and closes the ignition circuit when the knob is turned to Lite
• Sends power to the spark module to create the clicking needed to ignite the flame
• Symptoms may include: burner won't spark, intermittent ignition, continuous clicking with knobs off, or a burner lights only when another knob is turned

• One valve switch

• Disconnect electrical power and shut off gas supply; allow the cooktop/range to cool
• Remove the knob and front panel or manifold cover to access the valve area
• Note wire positions, transfer the wires to the new switch, and secure it on the valve stem in the same orientation
• Reassemble, restore power and gas, then test burner ignition

This switch mounts on the surface burner gas valve stem and closes the circuit to the spark igniters when you turn the knob. Replace a worn switch to restore reliable ignition and eliminate nuisance or no-click conditions.

• Activates the spark module for the selected burner when the knob is turned
• Common symptoms: no spark/click on that burner, intermittent lighting, or continuous clicking after flame is lit
• Helps correct single-burner ignition issues caused by a failed valve switch
• Typical wear item from use, heat, or moisture exposure around the cooktop

• Disconnect power and shut off gas before servicing
• Remove the burner knob and access the valve/switch at the manifold
• Note wire positions and transfer one at a time to the new switch
• Ensure the switch seats on the valve stem and test for proper spark before reassembly

This burner support secures a cooktop burner and helps position the burner head for even flame distribution. It restores proper burner alignment so pots heat more evenly and the cooktop looks correct. What it does:

• Holds the burner head in place on a gas range or cooktop
• Keeps the burner properly centered for consistent heating
• Prevents burner wobble and poor burner-to-grate fit
• Can resolve issues with uneven cooking or unstable burner assemblies

• Turn off power and gas supply to the appliance before servicing
• Remove grates and burner caps, then lift out the old support and seat the replacement the same way
• Inspect surrounding cooktop surfaces and porcelain enamel for damage when reinstalling

Right angle

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping
