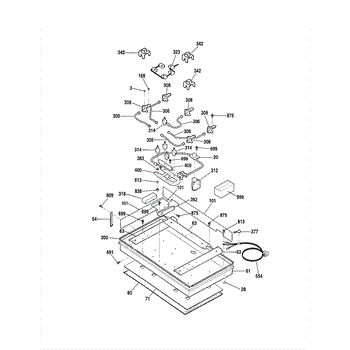

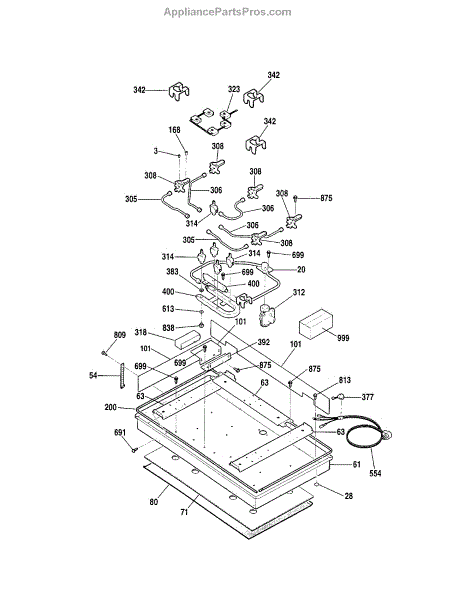

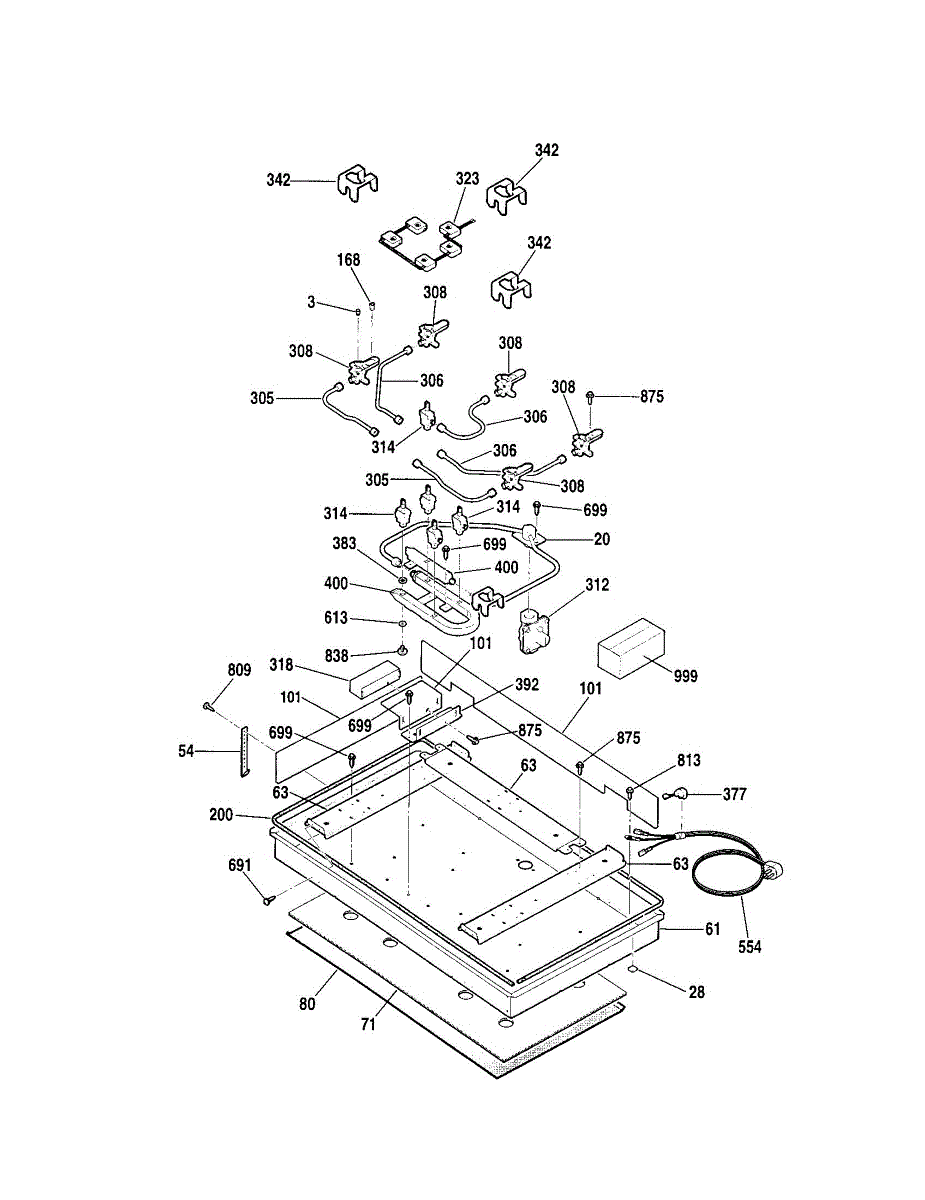

Parts for Kenmore 911.33212100 (91133212100, 911 33212100): Burner Section Parts

Natural gas

Natural gas

Natural gas

This LP orifice spud directs propane gas to a burner for correct flame size and stable cooking heat. It's the specific replacement used in LP-configured gas cooktop/oven burners to restore proper gas flow. What it does:

• Meters propane flow to a burner for consistent flame performance.
• Used in LP (propane) conversions or LP-configured burners.
• Common symptoms it can fix: burner won't light, weak or uneven flame, or poor heat control.
• Fits into the burner valve/manifold assembly and works with the burner head.

• Turn off the gas supply and disconnect power to the appliance before servicing.
• Use correct LP conversion instructions for your appliance and replace only with the specified orifice for LP.
• Hand-start threads, then snug with the appropriate wrench; avoid over-tightening.

Liquid propane

Liquid propane

Liquid propane

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-rear tube assembly routes and secures the appliance's tubing at the rear of the cabinet, restoring a proper sealed connection and reliable flow where the original tube is damaged or leaking. What it does

• Replaces the right-rear tubing assembly that routes fluid at the back of the appliance.
• Restores a sealed connection to stop leaks and prevent water damage.
• Re-establishes correct routing to avoid kinks or strain on adjacent fittings.
• Supports proper operation of linked components by maintaining a secure fluid path.

• One tube assembly (right rear) as shown

• Disconnect power and turn off the water supply before beginning work.
• Inspect and clean mating fittings; replace damaged clips or fasteners as needed.
• Ensure tubing is routed without kinks and fittings are tightened to manufacturer torque recommendations.
• After installation, restore water and power, then check all connections for leaks.

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right angle

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8
