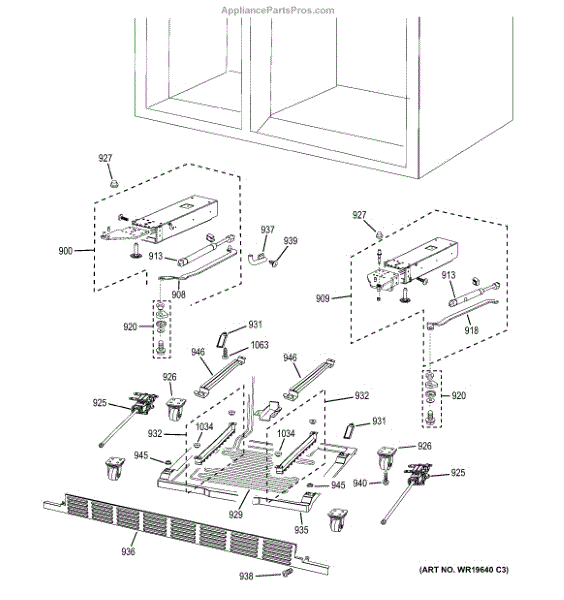

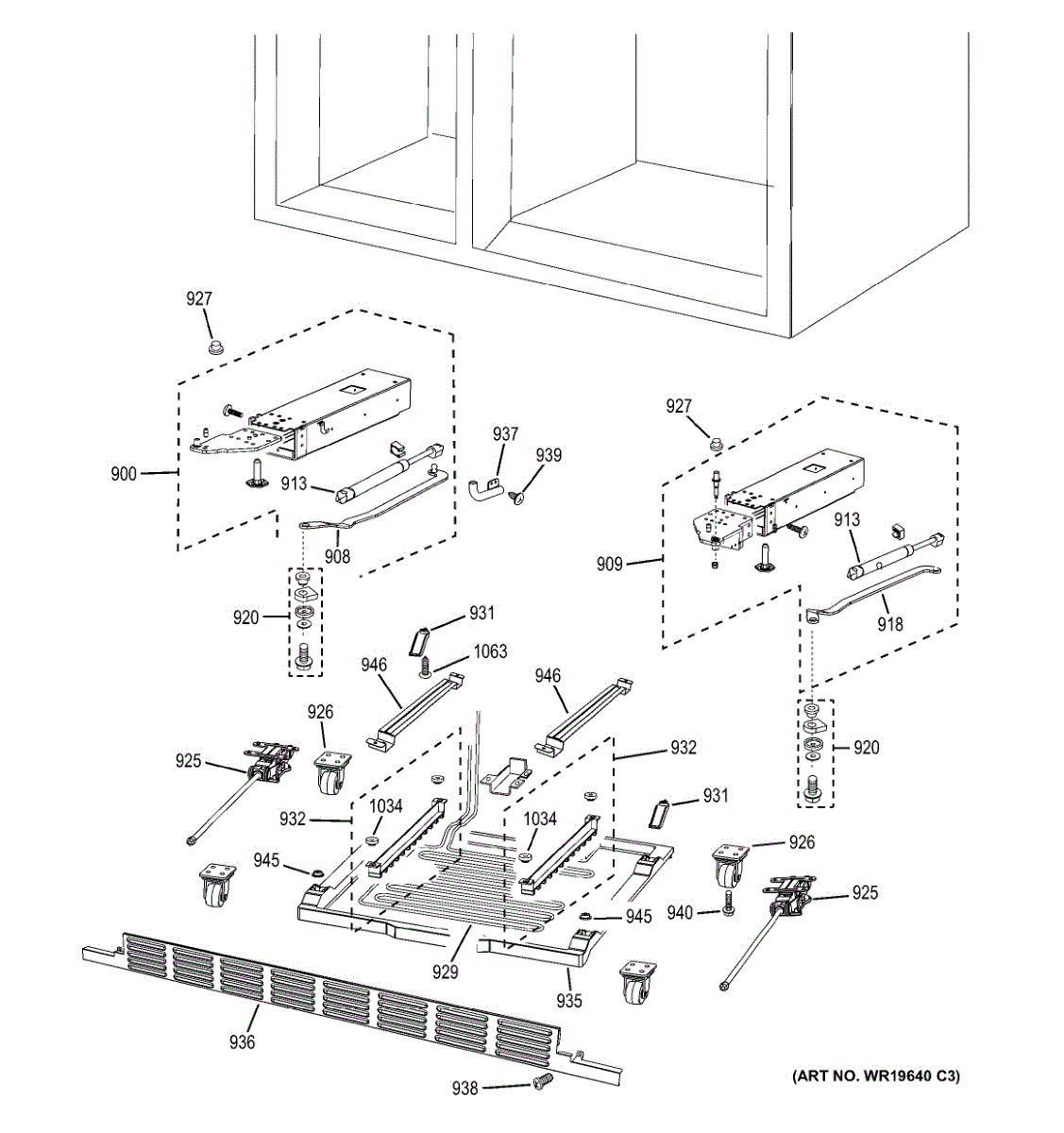

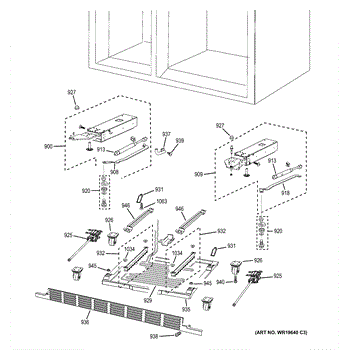

Parts for Ge PSB42YPHASV: Cabinet (2) Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This is a GE refrigerator door hinge assembly. The door hinges are located on the inner edges of the doors, connecting them to the main portion of the refrigerator. Without functioning hinges, the door will not open or close properly and could lead to the contents of the refrigerators thawing. There are a few main issues that lead to hinge replacements. Over time, normal wear and tear take a toll on the door hinges. Sometimes that shocks go out on these particular components, leading to a need for replacement. If the original hinges end up getting rusty, this could also lead to the hinges going bad. The hinges are for the lower area of the door. The refrigerator will need to be turned on its side to access the lower area. Remove all contents of the refrigerators and unplug the unit, allowing it to rest for several hours before turning sideways. The simple removal of a few screws is all it takes to replace this component. The most vital step in the replacement is allowing the refrigerator to rest after the hinges are installed. This allows the refrigerant to settle back normally and not build up in one area too much. Turning on immediately after tilting could lead to damage to the compression system.This part is a genuine OEM product and is sourced directly from the manufacturer. This product is compatible with GE, Haier, Hotpoint, and RCA appliances.

This Grommet Link Assembly cushions and secures moving parts, helping reduce vibration and wear for a quieter, more reliable appliance operation. Use it to restore proper fit between linked components. What it does:

• Absorbs shock and reduces vibration where two components connect
• Keeps linked parts aligned to prevent rubbing or premature wear
• Helps stop loose or rattling noises caused by worn grommets
• Prevents metal-on-metal contact that can cause damage over time

• Install only after disconnecting power to the appliance to avoid injury
• Inspect surrounding components and mounting hardware; replace any damaged fasteners
• Seat the grommet fully into its mating holes to ensure proper alignment and function

This rear leveling jack raises and stabilizes the back of the refrigerator so doors align and the unit sits steady on uneven floors. Durable replacement helps restore proper door closure and reduce rocking or vibration. What it does:

• Supports and levels the rear of the refrigerator to correct uneven stance
• Helps doors seal and self-close by ensuring proper cabinet tilt
• Reduces rocking, rattling, and movement when loading or accessing the fridge
• Compatible with common GE refrigerator rear mounting locations (verify fit for your model)

• Unplug the appliance and remove food before working underneath or tilting the unit
• Use a floor jack or assistant to support the refrigerator while replacing the rear jack
• Adjust leveling with an appropriate wrench; make small changes and re-check the level
• Inspect mounting area and fasteners; replace any worn hardware for a secure fit

This replacement toe kick is the lower front panel that covers and protects the appliance base while restoring the finished appearance. It keeps the cabinet opening neat and helps prevent debris from entering the service area. What it does:

• Replaces a cracked, dented or missing toe kick to restore a clean exterior and trim
• Secures the bottom front edge of the appliance and helps keep loose items out of the base
• Reduces visible gaps that can collect dust or allow small objects to fall under the unit
• Stops minor rattling or vibration caused by a loose or damaged lower panel

• Disconnect power to the appliance before starting any work
• Most installs require removing the lower access grille or loosening a few fasteners to pop out the old toe kick
• Align retaining tabs/clips and snap the new panel into place; do not force parts that resist seating
• If any clips or fasteners are damaged, replace them before finishing the install

A self-tapping screw used to fasten appliance components where a threaded hole is not present. It provides a secure connection for panels, brackets, or internal assemblies to restore proper fit and reduce movement. What it does:

• Cuts its own mating thread as it is driven, securing plastic or thin metal components
• Holds panels, brackets, or assemblies in place to prevent rattling and misalignment
• Restores proper attachment when original screw is stripped, missing, or damaged
• Helps maintain electrical and mechanical component positioning for safe operation

• Use the correctly sized screwdriver or driver bit to avoid cam-out or head damage
• Drive straight and avoid over-torquing to prevent cracking or stripping the mating material
• If working near electrical components, disconnect power before servicing
• Replace like-for-like with the same part number to ensure proper fit and function

A self-tapping screw used to fasten appliance panels and components where a threaded hole is formed as the screw is driven. Provides a secure hold for trim, brackets, and light assemblies during repairs. What it does:

• Cuts its own mating thread in sheet metal or thin plastic to secure panels and brackets
• Helps hold trim, access panels, or internal components in place
• Commonly used where a tapped hole is not present or repair requires a replacement fastener
• Can prevent loose parts and rattles caused by missing or damaged screws

• Unplug the appliance before servicing to avoid electrical or mechanical hazards
• Use the correct screwdriver or bit to avoid stripping the screw head
• Start the screw straight and apply steady pressure; do not overtighten to avoid cracking plastic or stripping metal
• Replace only with the exact part number to ensure proper fit and function
