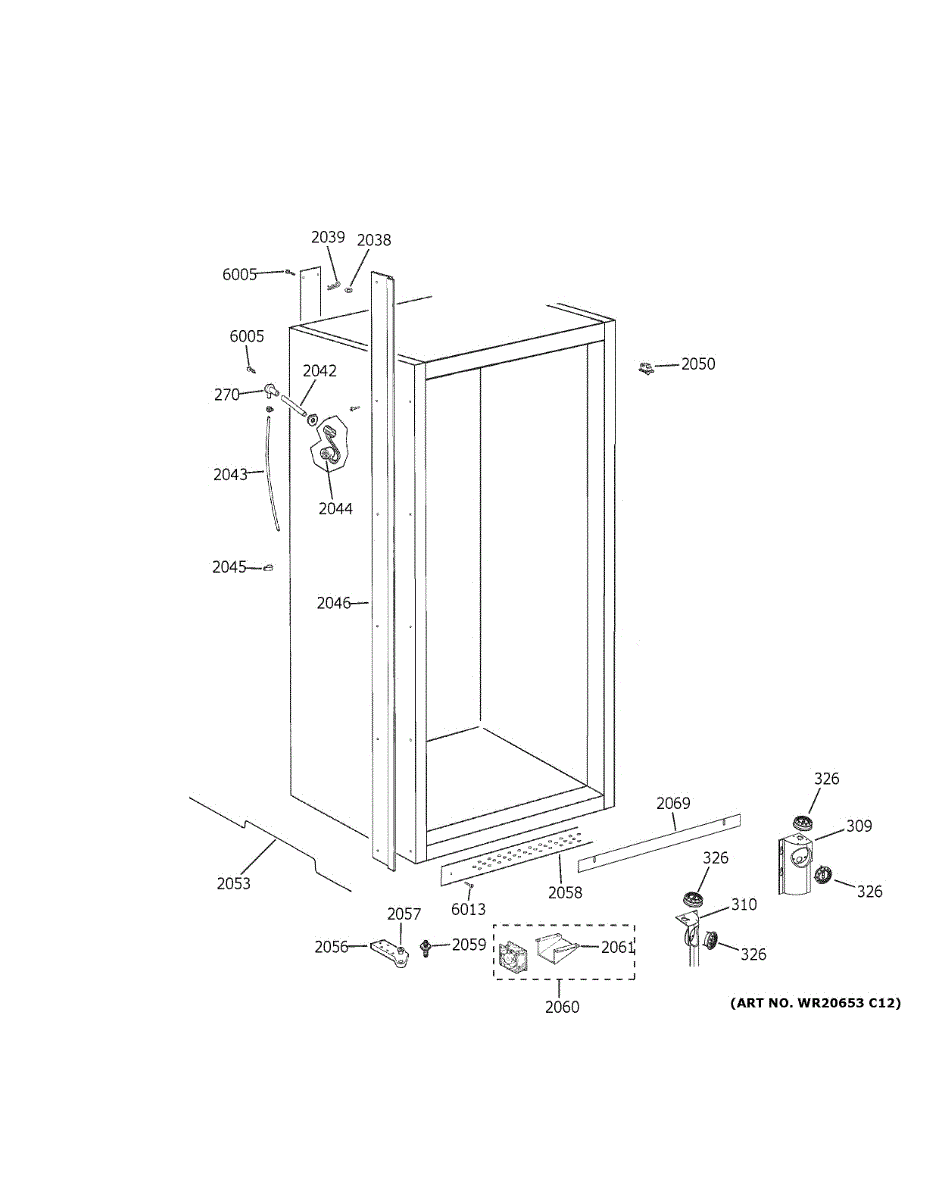

Parts for Ge ZIFS360NPBLH: Cabinet (2) Parts

Rubber grommet that seals the water fill tube where it passes through the refrigerator liner. Replace if cracked, worn, or missing to prevent leaks.

This right-side bottom light assembly replaces the damaged or burned-out light housing in the refrigerator fresh-food section, restoring interior illumination and a finished appearance. Fits in the lower right area where the original light assembly mounts. What it does:

• Houses and protects the refrigerator interior light bulb so the fresh-food area stays illuminated
• Restores secure mounting and proper light direction when the original housing is cracked, loose, or missing
• Helps prevent moisture and debris from contacting the bulb or socket
• Resolves symptoms such as dim or no light in the lower/right compartment, rattling or a loose lens

• One right-side bottom light assembly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove only the fasteners or clips specified by the appliance design; handle the lens and bulb carefully to avoid damage
• If replacing the bulb, use the correct replacement bulb type and do not overtighten

This left-hand bottom light assembly restores illumination to the lower compartment, making it easier to see food and controls. It replaces a damaged or non-working lower light housing for improved visibility and safe use. What it does:

• Provides interior lighting for the refrigerator's lower/bottom left area
• Replaces a cracked lens, damaged housing, or faulty light assembly that causes no light or flickering
• Secures into the factory left-hand mounting location and connects to the existing wiring harness
• Helps you locate items and read controls in the lower compartment

• Disconnect power to the appliance before starting any repair
• Remove shelves/drawers as needed to access the lower left light housing
• Handle lens and bulb/socket carefully to avoid damage; replace bulb if necessary
• Secure assembly with factory screws and restore power; test operation before reassembling

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

This 3/8-inch washer is used in refrigerators to secure components and prevent loosening. Replace if washer is missing, cracked, or worn out.

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

Plastic tubing that routes water through your refrigerator's system. Replace if cracked, brittle, kinked, or leaking to restore proper flow and prevent damage.

Delivers water to the ice maker. Replace this fill tube assembly if the original is cracked, leaking, or worn to restore proper water routing.

Size: 1/4 inch diameter.

Fix refrigerator lights that won't turn on when you open the door. This light door switch activates interior lighting. DIY repair in under 30 minutes.

No water from dispenser or ice maker? This water inlet valve assembly controls water flow into your refrigerator. DIY-friendly repair in about 2 hours.

Bottom hinge bushing guides the refrigerator door hinge pin for smooth pivoting. Replace if worn, cracked, or missing to restore proper alignment.

A drain fan bracket assembly that secures the drain/fan motor and mounting hardware to the appliance, helping keep the fan stable and aligned for reliable operation. What it does:

• Holds the drain fan or motor in the correct position to maintain airflow and drainage
• Reduces vibration and noise caused by a loose or damaged bracket
• Prevents the fan from rubbing or binding, which can cause motor wear or failure
• Can be replaced when cracked, bent, or otherwise broken to restore proper fan operation

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Remove surrounding panels and fasteners to access the bracket; retain mounting screws for re-use if not replaced.
• Inspect adjacent components (fan blade, motor mounts, wiring) and replace any damaged parts.

Replaces the lower front trim panel that covers the gap beneath your refrigerator. Restores a finished look when the original is cracked or missing.

Size: 10-32 GXTT FLP.595 S
