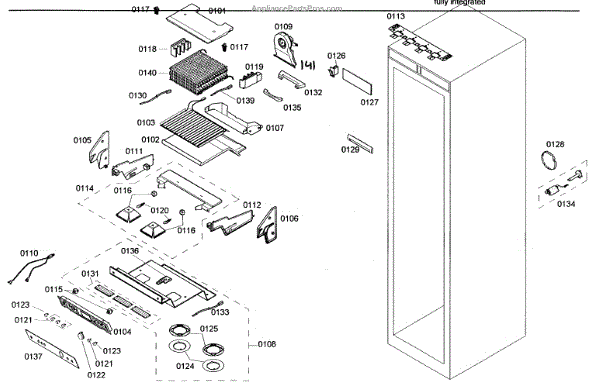

Parts for Bosch B24ID80NLP/01: Cabinet Assembly Parts

The Water Filter is an OEM part for Bosch refrigerators. This part removes impurities and contaminants from the water supply to your appliance. This part ensures that the water and ice dispensed by your refrigerator are clean, taste fresh, and are free of common waterborne particles and substances.

Over time, the water filter can become clogged with sediments and contaminants, reducing its effectiveness and potentially affecting the taste and quality of the water and ice. Regular replacement is essential for maintaining optimal performance.

Symptoms of a bad Water Filter include:

• Unpleasant taste or odor in the water or ice
• Decreased water flow to the dispenser or ice maker
• Visible particulate matter in the water or ice cubes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Defrost Heater is an OEM part for Bosch refrigerators. Strategically placed at the rear of the freezer compartment, it quickly removes frost and ice during automatic defrost cycles. The defrost heater utilizes precisely regulated currents to raise temperatures temporarily and expel moisture.

Causes of a bad defrost heater may involve failures due to regular heating and cooling over countless cycles. Mineral or ice deposits can restrict filaments or warp sensitive components within.

Symptoms of a bad defrost heater include:

• Frost buildup despite automatic defrost mode being set
• High energy bills indicating excess run-time to fully defrost
• Warm areas detected behind removable freezer panels
• Risk of frost and condensation dripping onto stored items

Replacing your malfunctioning heater ensures even temperatures throughout. This genuine Bosch part restores frost-free convenience and maintains cooling efficiency. It is compatible with some Thermador, Gaggenau, and Kenmore models.

This operating module is the dishwasher's electronic control board that interprets user inputs and manages cycle functions, restoring responsive controls and proper cycle sequencing when the original module fails. What it does:

• Receives touchpad or button commands and runs the selected wash cycles
• Controls timers, valve/relay signals, and cycle sequencing for normal operation
• Can cause unresponsive controls, incorrect cycles, or failure to start when faulty
• Works with the front control assembly to relay status and error feedback

• One operating module (electronic control board)

• Disconnect power before service to avoid electrical shock
• Handle the board by edges and avoid static discharge; wear an ESD strap if available
• Minor disassembly of the control panel or door is typically required; follow the OEM service manual

This operating module is the dishwasher's electronic control board that interprets user inputs and manages cycle functions, restoring responsive controls and proper cycle sequencing when the original module fails. What it does:

• Receives touchpad or button commands and runs the selected wash cycles
• Controls timers, valve/relay signals, and cycle sequencing for normal operation
• Can cause unresponsive controls, incorrect cycles, or failure to start when faulty
• Works with the front control assembly to relay status and error feedback

• One operating module (electronic control board)

• Disconnect power before service to avoid electrical shock
• Handle the board by edges and avoid static discharge; wear an ESD strap if available
• Minor disassembly of the control panel or door is typically required; follow the OEM service manual

The Motor-Fan is an OEM component specifically designed for Bosch refrigerators. It circulates air to optimize internal temperatures.

The motor-fan works continuously to push cool air from the freezer compartment and direct airflow throughout refrigerator shelves and bins. Strategically positioned vents help regulate temperature variances.

Symptoms of a bad motor-fan include:

• Inconsistent or fluctuating temps from section to section
• Frost or condensation building up unusually fast
• Abnormal sounds like grinding or squealing during the operation
• Complete lack of airflow

Causes can be a failed motor bearing, compromised fan blades off balance, or blockage preventing free rotation.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore refrigerator models.


This holder is a small mounting bracket that secures internal components in place to prevent movement and wear. It restores proper alignment and helps stop rattling or loose parts inside the appliance. What it does

• Secures wiring, sensors, or small assemblies to the appliance chassis to prevent displacement.
• Helps eliminate vibrations, rattling noises, or intermittent contact caused by loose components.
• Maintains correct positioning so related parts can operate reliably.
• Protects fragile components from rubbing or impact damage during use.

• One holder / mounting bracket as shown

• Refer to the appliance's service manual or parts diagram for the correct location and orientation before installing.
• Disconnect power (and water if applicable) before servicing to reduce risk of shock or injury.
• Use appropriate hand tools; avoid overtightening fasteners that can crack plastic mounting points.
• Replace damaged clips or fasteners to ensure a secure installation.

This is an electrical on/off switch used to control power to an appliance circuit. It replaces a failed switch so controls respond normally and the appliance can be powered on and off safely. What it does

• Opens and closes an electrical circuit to enable or disable appliance power or a specific control function
• Commonly replaces a worn, stuck, or unresponsive switch that prevents controls or lights from operating
• Can resolve symptoms like no power to a control, intermittent operation, or a button that won't actuate
• Designed to mate with the appliance's existing wiring and mounting points

• One electrical on/off switch

• Disconnect power to the appliance at the breaker or unplug before working on wiring
• Verify proper wire locations and secure all terminal connections; replace only with the exact part specified by the manufacturer
• Handle the part carefully to avoid bending terminals or damaging the switch actuator

A small foam insulation/bumper used to cushion and protect appliance components, reduce vibration and noise, and help prevent metal-on-metal contact. Useful when worn or missing foam causes rattling or contact damage. What it does:

• Cushions internal components to prevent rubbing and wear
• Dampens vibration and reduces operational noise
• Helps maintain small gaps for insulation and prevents direct metal contact
• Keeps parts aligned and minimizes rattling during operation

• Disconnect power to the appliance before accessing internal components.
• Install in the correct location and orientation; replace any damaged adhesive pads as needed.
• Press firmly to seat the foam; avoid compressing excessively.

This foam piece is a small insulation/cushion component used on select Bosch appliances to reduce vibration, fill gaps, and dampen noise for quieter operation and better fit. It replaces worn or missing foam that can allow movement or rattle. What it does:

• Provides cushioning between panels and components to reduce rattling and vibration
• Acts as a gap filler to help maintain proper panel alignment and prevent rubbing
• Helps dampen operational noise from motors or moving parts
• Can restore the original fit where foam has compressed, torn, or fallen away

• Foam piece

• Disconnect power to the appliance before servicing and work with the unit in a stable, cool state
• Remove any access panels needed to reach the foam location; note panel fastener locations for reassembly
• Press the foam into the designated slot or adhesive area; replace adhesive backing or use recommended adhesive only if original method is verified

This halogen light bulb restores bright, reliable illumination in your appliance so you can clearly see the cooking area or interior. Replace a burned-out or flickering bulb to maintain visibility and safe operation. What it does:

• Provides illumination inside the appliance or over the cooking surface
• Replaces a failed halogen lamp to restore proper lighting
• Typical symptoms: light won't turn on, is dim or flickers, or works intermittently
• Helps you monitor food and check progress without guesswork

• 1 halogen lamp

• Disconnect power/unplug and allow the bulb and surrounding area to cool completely before service
• Access the lamp per your model's instructions; remove any lens or cover carefully
• Handle the new halogen bulb with gloves or a clean cloth; avoid touching the glass capsule
• Match the bulb type and rating specified for your model; do not exceed the rated wattage

This is a replacement micro switch used in select Bosch-built appliances. It opens and closes an electrical circuit when actuated by a lever or cam, enabling functions like starting/stopping a cycle or detecting a position.

• Controls power or signals by opening/closing a low-voltage circuit when pressed
• Commonly used for on/off, door/lid, or position-sensing functions
• Failure may cause the unit not to start, intermittent operation, or features that won't engage
• May also present as unresponsive buttons or functions that only work when pressed a certain way

• Disconnect power before servicing; verify no voltage is present
• Access location varies by model; remove panels as needed to reach the switch
• Note wire positions and terminal orientation before removal
• Test continuity with a meter after installation to ensure proper operation

This sensor monitors operating conditions inside the appliance and reports to the control so cycles run correctly and safely. When the sensor fails, the control may receive inaccurate feedback, leading to irregular performance. What it does:

• Detects key conditions inside the appliance and sends a signal to the control
• Helps the control regulate heat and cycle progress
• Failure symptoms can include erratic cycle times, poor heating performance, or sensor-related error messages
• Can prevent the appliance from starting or completing a cycle if readings are out of range

• 1 sensor

• Disconnect power before servicing; shut off water supply if applicable
• Access the sensor and note wire orientation before removal
• Ensure any sealing surface is clean and the sensor is seated properly; check for leaks after reassembly where applicable
• Run a diagnostic or test cycle after installation to clear errors and verify operation

The Temperature Sensor is an OEM part for Bosch freezers. This sensor monitors and reports interior freezer temperatures to the control board.

Causes of a bad freezer temperature sensor can include damage from repeated temperature fluctuations within the freezer, over-exposure to extreme cold, or simple failure of internal electronic components over time.

Symptoms of a bad freezer temperature sensor include:

• Inability to maintain consistent set freezer temperature
• Temperature readings displayed incorrectly on control panel
• Defrost cycle not functioning properly
• Food freezing inconsistently or freezer too warm/cold

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This water inlet valve controls water flow into the appliance, restoring proper fill and preventing unwanted leaks. Replacing a faulty inlet valve returns normal water supply and helps the appliance fill reliably. What it does:

• Opens and closes the water supply to the appliance when a cycle calls for water
• Stops water flow when the fill is complete to prevent overfilling
• Common symptom: appliance won't fill or fills slowly
• Common symptom: continuous or intermittent leaking near the inlet area
• Works with the appliance's control signals to regulate fill volume

• Disconnect power and shut off the water supply before starting any repair
• Drain residual water from hoses and fittings to avoid spills
• Inspect and replace any worn inlet hoses or seals when replacing the valve
