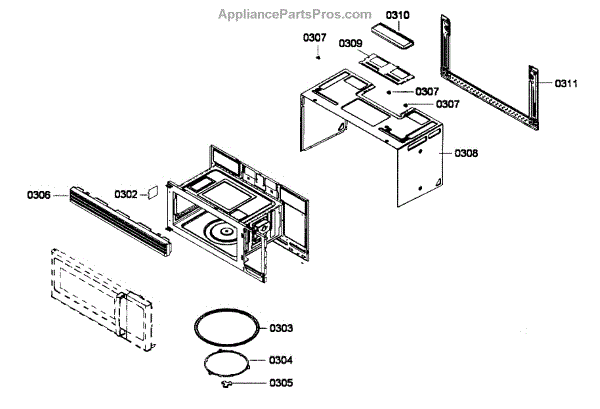

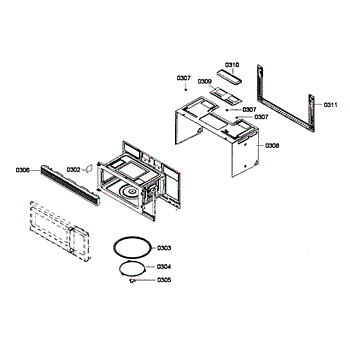

Parts for Bosch HMV3061U/01: Cabinet Assembly Parts

This replacement cover restores the protective housing that secures and shields internal components on compatible Bosch appliances. It helps keep parts in place and prevents debris from entering sensitive areas. What it does:

• Replaces a cracked, broken, or missing cover that exposes internal components
• Protects wiring and mechanisms from dirt and accidental contact
• Helps maintain proper part alignment and prevents rattling or loose fit
• Useful when cabinet damage or wear prevents the original cover from seating correctly

• One replacement cover

• Disconnect power to the appliance before service to avoid shock or injury
• Remove any fasteners or clips holding the old cover; retain hardware if not replacing
• Align the new cover carefully and secure with the original screws or clips

This is the glass turntable that sits inside the microwave cavity. Replacing a cracked, chipped, or missing tray restores a smooth, level surface and proper rotation so food heats more evenly and dishes stay stable while cooking.

• Provides a flat, heat-resistant surface that rotates during cooking for even heating
• Direct replacement when the original tray is broken, chipped, missing, or won't seat correctly
• Helps correct issues like wobbling, poor engagement, or uneven heating due to a damaged tray
• Seats on the turntable support and engages the drive coupler for smooth rotation

• Disconnect power before service and allow the oven cavity to cool
• Remove the old tray; clean the support ring and drive coupler of debris
• Align the center hub on the underside of the new tray with the coupler; ensure it sits flat and spins freely
• Test with a microwave-safe cup of water to confirm smooth rotation

This turntable support ring sits beneath the microwave glass tray and lets it rotate smoothly for more even heating. Replace a worn or warped ring to restore consistent tray movement and reduce scraping, binding, or wobble during operation. What it does:

• Supports the glass turntable so the drive system can rotate it smoothly
• Helps maintain steady rotation for more consistent cooking results
• Replace if the tray stalls or binds, wobbles, or makes scraping/grinding noises while turning
• Wear or deformation can cause intermittent or noisy rotation

• 1 turntable support ring

• Disconnect power to the microwave before servicing
• Remove the glass tray; lift out the old ring and clean the track on the cavity floor
• Set the new ring flat in the track and reinstall the tray on the drive coupler
• Test rotation with a microwave-safe cup of water; never open the cabinet—microwaves contain high voltage

This drive coupling connects the washer motor to the gearcase to transfer torque for agitation and spin. Replacing a worn coupling restores proper drum movement and helps eliminate slipping or grinding during use. What it does:

• Transfers rotational motion from the motor to the transmission/gearcase so the drum can agitate and spin
• Failsafe against motor/transmission shock by using a replaceable rubber/nylon interface
• Common symptom: washer won't spin or agitate even though motor runs
• Other symptoms: loud grinding or clicking during spin, intermittent movement or slipping

• Disconnect power and water supply before beginning any repair
• Access typically requires removing the washer's front or rear access panels; follow OEM instructions for your model
• Inspect motor shaft and gearcase input for wear when replacing the coupling and replace any damaged components

This decor frame is the exterior trim piece that restores the finished look of the appliance door and conceals the panel edge. It provides a clean, factory appearance and covers the gap between the door panel and control area. What it does:

• Restores the door's exterior finish and improves overall appearance
• Covers and protects the panel edge from chips, dings, and wear
• Helps hold the outer door panel alignment for a flush fit
• Eliminates visible gaps or exposed fasteners along the door perimeter

• One decor frame

• Disconnect power to the appliance before starting any door or panel work
• Remove the door or outer panel per the manufacturer's service instructions to access trim attachment points
• Use hand tools and keep track of small fasteners; handle edges carefully to avoid cuts or paint damage
• Replace with manufacturer-specified screws or clips

Keep your appliance protected and operating as designed with this replacement cover. It shields the related assembly from debris and accidental contact, restoring a secure enclosure when the original cover is cracked, warped, or missing.

• Protects internal components from dust, moisture, and accidental contact
• Maintains proper enclosure and alignment of the related assembly
• Helps reduce noise or vibration when properly secured
• Replaces a damaged, loose, or missing cover to restore safe operation

• Disconnect power and, if applicable, turn off the water supply before servicing
• Retain and reuse original screws/clips unless new hardware is provided for your model
• Transfer any seals or gaskets from the old cover if required and in good condition
• Ensure all tabs/fasteners engage; do not overtighten
