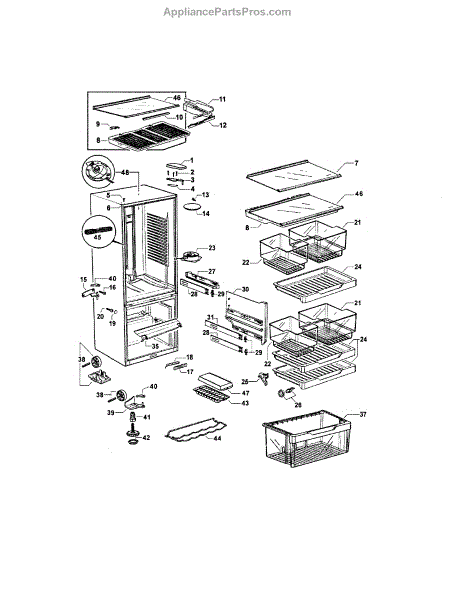

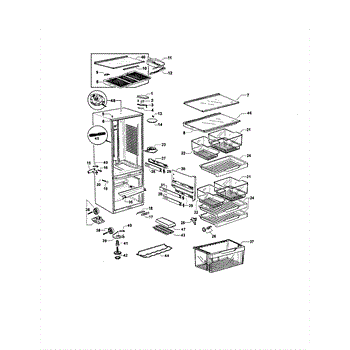

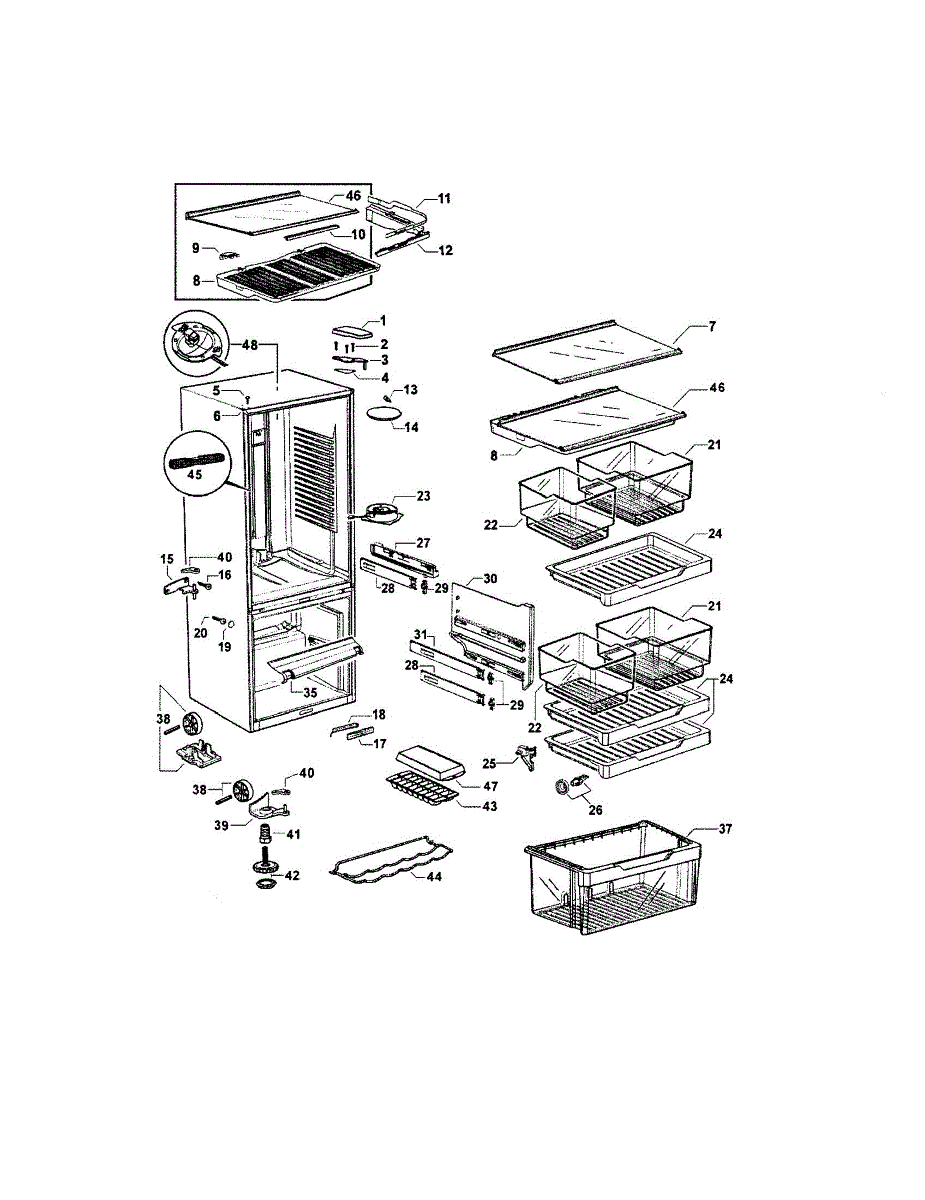

Parts for E522BLE-22163A: Cabinet Components Parts

This Use & Care booklet provides the original manufacturer instructions and basic operating, care, and safety information for your appliance. Keep it for reference to maintain performance and follow recommended care steps. What it does

• Explains basic operation and control panel functions in plain language
• Lists safety warnings and proper handling to reduce risk of accidents
• Describes routine care and cleaning to help maintain appliance condition
• Provides basic troubleshooting tips and when to contact service
• Clarifies warranty and registration steps

• One Use & Care booklet

• No tools required; keep booklet near the appliance or with household manuals
• Read all safety and operating instructions before using the appliance
• Do not discard—provide to new owners if appliance is sold or transferred
• For replacement parts or service, refer to the appliance serial/model information

This is a tempered glass shelf assembly with a plastic trim that provides a stable, easy-to-clean surface for storing food and containers in the refrigerator. Restores a broken or missing shelf and keeps items organized. What it does:

• Replaces a cracked, chipped or missing fridge shelf to restore usable storage space
• Plastic trim protects the shelf edge and helps it seat securely in door/groove supports
• Provides a flat, easy-to-clean surface for food, jars and containers
• Prevents items from shifting by restoring the intended shelf support

• Remove all items from the shelf and surrounding area before installation
• Handle glass with care and wear cut-resistant gloves to avoid injury
• Seat the trim into the shelf supports or grooves fully; do not force or over-torque any fasteners
• Dispose of broken glass carefully and follow local regulations

The Support Bracket is an OEM component specifically designed for Fisher & Paykel refrigerators. This bracket securely mounts internal shelves, bins, and other removable parts within the refrigerator storage area.

The bracket must withstand years of shifting shelf loads and accidental impacts without deforming. Over many uses, small defects can accumulate.

Causes of a defective support bracket include stress fractures or damage from misaligned or overloaded shelves putting uneven pressure on mounting points.

Symptoms of a bad support bracket include:

• Loose or sagging shelves that do not stay level
• Detached shelves or bins that no longer stay mounted
• Broken plastic or bent mounting tabs

This OEM Fisher & Paykel part is also compatible with models from KitchenAid, ProLine, and some Crosley brands. Replacing a damaged bracket helps maintain proper shelving support for your refrigerator.


This PC fan assembly replaces the small cooling fan used to move air across the appliance's electronic control board, helping keep electronics cooler and reducing thermal stress for reliable operation. What it does

• Circulates air to cool the main control/PC board and nearby components
• Prevents overheating that can cause control errors or shutdowns
• Reduces fan noise or vibration when a failed fan is replaced
• Restores proper airflow if a burned, seized, or intermittent fan was the issue

• Disconnect power before accessing the control housing or PC board
• Handle the control board and connectors carefully to avoid damage from static or flexing
• Verify fan connector orientation and secure mounting; route wiring away from moving parts

This right-hand retainer slide assembly secures and guides a compatible drawer or panel so it opens and closes smoothly. It replaces worn or damaged slides to restore proper alignment and reliable movement. What it does:

• Holds the drawer/panel in place and keeps it aligned during operation
• Guides smooth in-and-out movement to prevent sticking or uneven travel
• Reduces wobble, rattling, or misalignment caused by a broken or worn slide
• Works as a direct replacement for the corresponding right-side slide assembly

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; avoid force to prevent plastic damage
• Compare the new part to the original to confirm orientation and fit before installing

This Slide 305 RH assembly is the right-hand drawer slide that guides and supports a refrigerator/freezer drawer for smooth opening and secure alignment. It restores proper drawer movement and helps prevent sagging or binding. What it does:

• Guides the drawer along its track for smooth, even travel
• Supports drawer weight to prevent sagging or tilting
• Keeps the drawer aligned to ensure full opening and closing
• Helps stop sticking, binding, or noisy drawer operation

• Remove contents and fully open the drawer before starting; follow the appliance manufacturer's service instructions
• Use basic hand tools; keep fasteners and clips from the old slide to match orientation
• Check and install the matching left-hand slide if replacing both sides for proper alignment

Left-hand drawer slide assembly that supports and guides a refrigerator or freezer drawer for smooth movement and reliable alignment. Replaces a worn or damaged left-side slide to restore proper drawer glide and support. What it does:

• Guides and supports the left side of a pull-out drawer for smooth opening and closing
• Keeps the drawer aligned and prevents tipping or binding under load
• Restores proper operation when a drawer is hard to open, sticks, or falls out of track
• Works as the left-side mating component in the drawer slide system

• Remove drawer contents and fully support the drawer before removing the old slide
• Use basic hand tools; do not force parts—match mounting points and fasteners
• If wiring or components are adjacent, disconnect power to the appliance before starting

This right-hand drawer slide assembly restores smooth opening and secure support for a freezer or refrigerator drawer. It replaces a worn or damaged side slide to help drawers glide evenly and stay aligned. What it does:

• Guides and supports the drawer on the right side for smooth opening and closing
• Prevents sagging, catching, or uneven drawer movement
• Helps stop the drawer from falling out or binding during use
• Restores proper alignment for full-extension or partial-extension drawers

• Disconnect power and remove the drawer before installing
• Verify left/right orientation and part number match the existing slide before fitting
• Typical installation uses basic hand tools; retain fasteners unless replacements are provided
• If the drawer has rollers or additional bracketry, inspect those parts and replace if worn

This left-hand slide assembly replaces a worn or damaged drawer slide to restore smooth, stable drawer movement. It fits into the appliance's left side and helps keep the drawer aligned during use. What it does:

• Guides and supports the drawer so it opens and closes evenly
• Replaces bent, worn, or broken left-side slide hardware
• Helps stop the drawer from sticking, sagging, or coming off the track
• Works as a direct-fit service part when the left slide is the failed component

• Disconnect power and remove the drawer or access panel before starting, if applicable
• Compare the new slide to the old part to confirm orientation and fastener locations
• Use common hand tools; tighten fasteners securely but avoid overtightening

This left-hand hinge base bracket secures the appliance door to the cabinet hinge assembly, providing a stable pivot point for smooth opening and closing. Replaces a damaged or worn hinge base to restore proper door alignment and operation. What it does:

• Supports the door at the lower/upper hinge location so the door stays aligned and seals correctly
• Restores smooth door movement when a cracked or bent bracket causes sticking or binding
• Helps stop door sagging or uneven gaps that can let cold air escape
• Prevents metal-on-metal wear that can lead to noisy or unstable hinge operation

• One left-hand hinge base bracket

• Disconnect power (and water supply if appliance has a water line) before starting any repair
• Support the door securely before removing hinge fasteners to prevent injury or damage
• Use appropriate hand tools; avoid overtightening fasteners which can warp the bracket or hinge
• After installation, check door alignment and operation; adjust hinge position if needed for an even seal

This wheel leveling foot assembly replaces a damaged or worn support that helps stabilize and move the appliance while allowing height adjustment. It restores smooth rolling and proper leveling for safe, even operation. What it does:

• Provides a rolling wheel for moving the appliance and a threaded foot for height adjustment
• Helps stabilize the appliance and keep it level on uneven floors
• Reduces floor wear and makes service moves easier
• Addresses symptoms like uneven cabinet alignment, rocking, or sticking when rolling

• One wheel leveling foot assembly

• Turn off and unplug the appliance before servicing; disconnect water if present
• Use proper lifting support or have a second person hold the appliance when removing/installing leveling feet
• Thread or snap the assembly into the existing bracket per OEM alignment; hand-start threads to avoid cross-threading
• Replace any missing or damaged mounting hardware with OEM parts for proper fit
