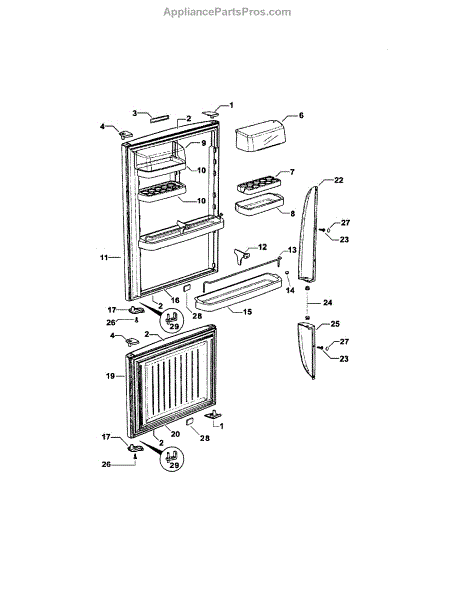

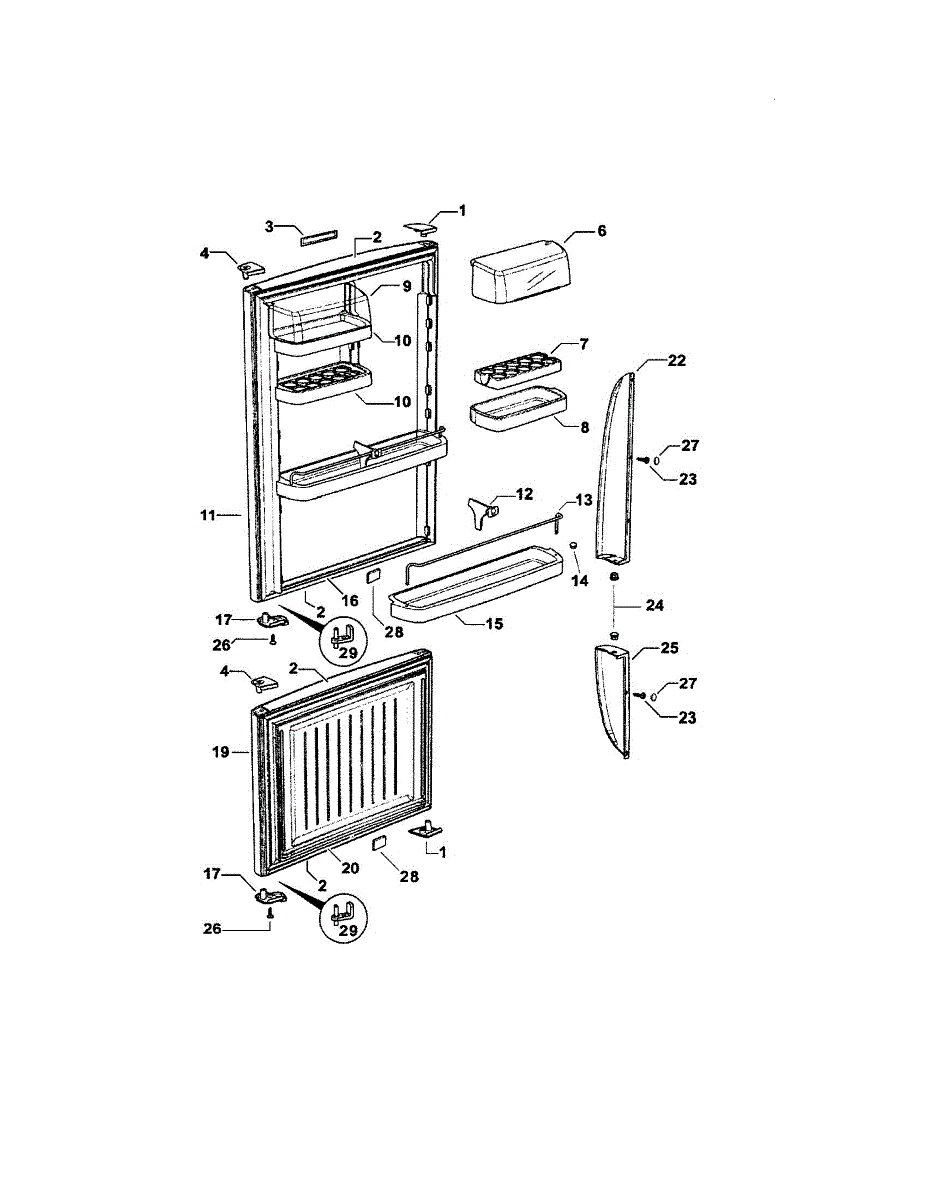

Parts for E522BLE-22163A: Doors Parts

This Use & Care booklet provides the original manufacturer instructions and basic operating, care, and safety information for your appliance. Keep it for reference to maintain performance and follow recommended care steps. What it does

• Explains basic operation and control panel functions in plain language
• Lists safety warnings and proper handling to reduce risk of accidents
• Describes routine care and cleaning to help maintain appliance condition
• Provides basic troubleshooting tips and when to contact service
• Clarifies warranty and registration steps

• One Use & Care booklet

• No tools required; keep booklet near the appliance or with household manuals
• Read all safety and operating instructions before using the appliance
• Do not discard—provide to new owners if appliance is sold or transferred
• For replacement parts or service, refer to the appliance serial/model information

The Half Door Shelf is an OEM replacement part for Fisher & Paykel refrigerators. This shelf fits neatly on the inside of the refrigerator door, providing convenient storage for smaller items that require quick access like condiments, eggs, or yogurt. It divides the door into top and bottom sections for better organization.

Symptoms of a bad shelf include:

• Items falling through cracks or gaps in the shelf
• The shelf no longer sitting flush and securely on the door
• Broken or missing segments of the shelf

Causes of a bad Half Door Shelf can include cracks or breaks from regular use and opening/closing of the refrigerator door over time.

This door assembly replaces a damaged or worn fresh-food compartment door to restore sealing and appearance. It provides the proper mounting surface for the door liner, handle, and trim so your refrigerator operates and looks as intended. What it does:

• Replaces a cracked, dented, or cosmetically damaged fresh-food door
• Restores proper door closure and helps maintain internal temperature consistency
• Provides the correct mounting points for handle, hinge, and trim components
• Helps stop drafts and reduces energy loss from a compromised door seal

• One fresh-food door assembly

• Disconnect power before beginning work and remove stored items from the door
• Hinges may require support; have a helper hold the door during removal/installation
• Use manufacturer-specified fasteners and follow OEM torque guidance when available
• If door trim, handle, or gasket are separate items, verify those parts are present before installation

This gasket frame is the molded support piece that holds the appliance door seal in place, restoring a tight closure and helping maintain proper temperature and efficiency. Use this part when the seal support is cracked, warped, or missing. What it does:

• Provides a secure mounting surface for the door gasket so the seal sits evenly around the door opening
• Helps prevent air leaks that can cause cooling, heating, or drying performance issues
• Replaces damaged, brittle, or deformed frame pieces that allow gasket misalignment or gaps
• Restores proper door fit to reduce moisture buildup and improve energy performance

• Basic snap-in or screw-in installation; confirm fastener type for your model before beginning
• Remove power and empty the door area before replacing the frame to avoid injury or damage
• Inspect the gasket for wear when installing the frame; replace the gasket if it shows cracks or compression set
• Use non-abrasive cleaners on the new frame; avoid sharp tools that could damage the gasket seating surface
