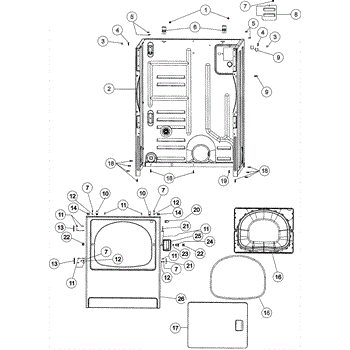

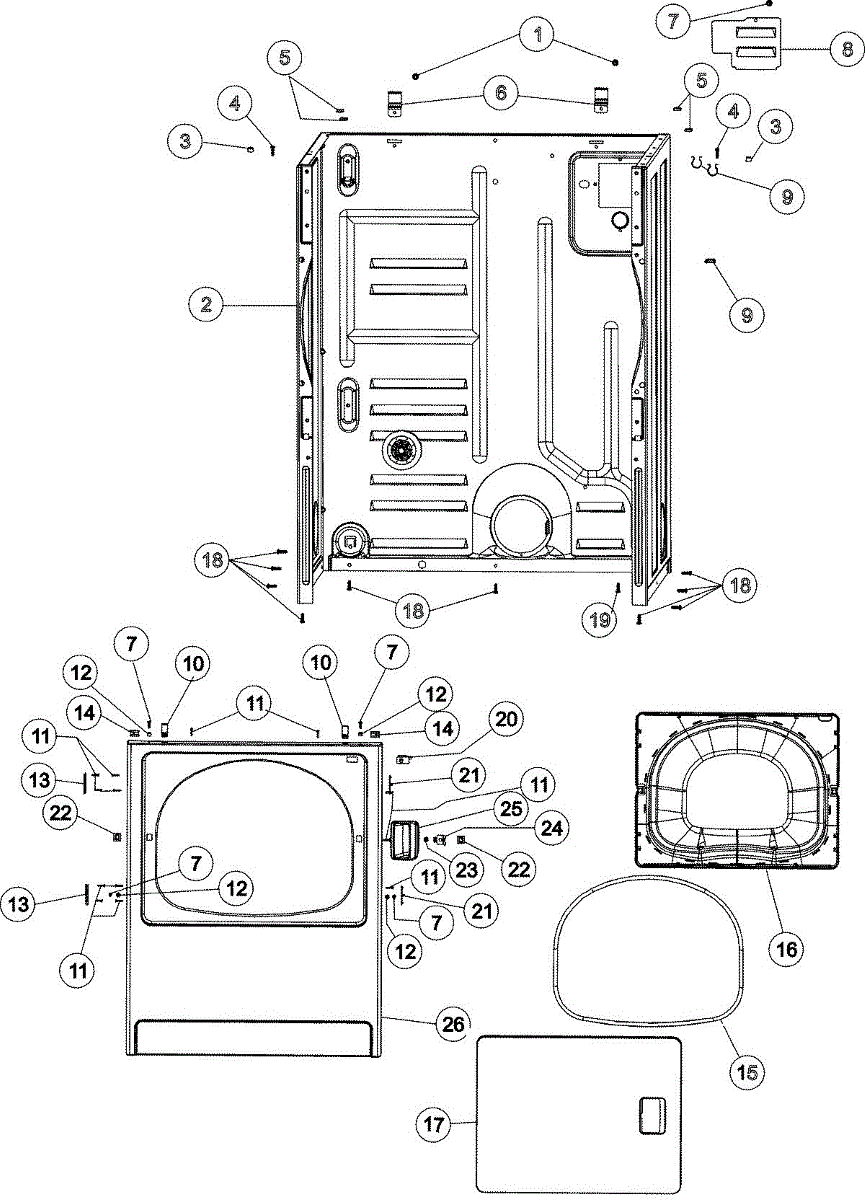

Parts for Magic Chef CYE3005AYW: 02 - Cabinet & Front Panel Parts

10 - 16 x 1/2

This factory fastener secures appliance components such as panels, brackets, and trim. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and helps keep assemblies aligned for reliable performance.

• Fastens appliance parts to maintain structural integrity and alignment
• Helps address symptoms like loose or vibrating panels, gaps, or hardware that won't stay tight
• Replaces lost, damaged, or corroded fasteners during repairs or reassembly
• OEM-matched thread and fit for the specified location

• Disconnect power; shut off gas or water supplies before servicing
• Replace one screw at a time to preserve alignment of parts
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver size/type specified for your model

This factory fastener secures appliance components such as panels, brackets, and trim. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and helps keep assemblies aligned for reliable performance.

• Fastens appliance parts to maintain structural integrity and alignment
• Helps address symptoms like loose or vibrating panels, gaps, or hardware that won't stay tight
• Replaces lost, damaged, or corroded fasteners during repairs or reassembly
• OEM-matched thread and fit for the specified location

• Disconnect power; shut off gas or water supplies before servicing
• Replace one screw at a time to preserve alignment of parts
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver size/type specified for your model

This cabinet top clip is a small plastic retainer that secures the appliance's top/cabinet to the chassis, keeping the cabinet aligned and preventing movement or rattling. It restores a flush fit between the cabinet and body. What it does:

• Secures the top/cabinet panel to the appliance frame so the cabinet stays in place
• Prevents the cabinet from shifting, vibrating, or sitting unevenly
• Helps stop gaps that can let dirt or moisture into cabinet seams
• Common symptom: loose, rattling, or misaligned cabinet top or trim

• One cabinet top clip

• Always disconnect power before servicing the appliance
• Remove necessary trim or panels to access the cabinet clip; a screwdriver or trim tool may be needed
• Replace broken or worn clips with matching parts only; inspect surrounding fasteners for damage

Screw kit for front panel.

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

Size: 10-24 x 3/8 inch.

The Door Switch Kit is an OEM part for Whirlpool dryers. This kit includes a door switch that plays a crucial safety and operational role in the dryer's function. It ensures that the dryer operates only when the door is firmly closed, preventing the machine from running with an open door, which could pose safety risks and inefficiency in the drying process.

The causes of door switch failure often include physical damage from slamming the dryer door, wear and tear over time, or electrical issues such as short circuits.

Symptoms of a faulty Dryer Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened, which poses a significant safety hazard.
• Unusual noises from the switch area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Catch Kit is an OEM part for Whirlpool dryers. It includes the door catch and the necessary mounting hardware to secure it in place. This kit ensures the dryer door remains securely closed during operation, preventing heat loss and ensuring the appliance functions efficiently.

Causes of a bad door catch include regular wear and tear, physical damage, or misalignment of the door, which can impact the catch's ability to latch properly.

Symptoms of a bad door catch include:

• The dryer door not staying closed
• Difficulty latching the door shut
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sturdy metal door strike that mates with the latch/lock on your machine's cabinet. It keeps the door closed and engages the door switch so cycles can start and run without nuisance stops.

• Interfaces with the door latch/lock mechanism to secure closure
• Engages the door switch/interlock so the appliance can start and continue running
• Restores proper door alignment and latch feel after wear or bending
• Typical symptoms: door won't latch or pops open; unit won't start/run; intermittent stopping mid-cycle; visible damage to the strike

• Unplug the appliance (and shut off gas to gas dryers) before servicing
• Remove the existing strike and retain mounting hardware; note orientation
• Install the new strike in the same position; tighten screws and verify alignment
• Close the door to confirm smooth latching and proper operation
