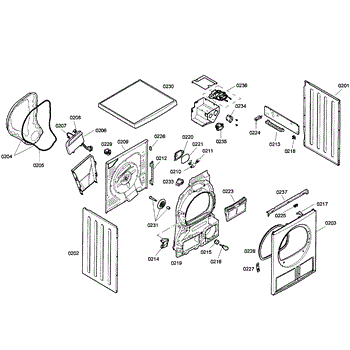

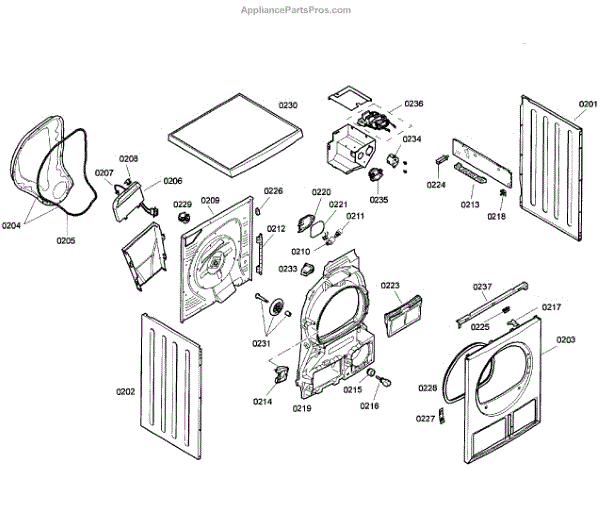

Parts for Bosch WTE86300US/05: Cabinet Parts

Parts for Bosch WTE86300US/05: Cabinet Parts

Location on Diagram
Part Description
Price & Availability
201
By: Bosch
Part Number: 00247370
$114.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
202
By: Bosch
Part Number: 00247370
$114.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
203
By: Bosch
Part Number: 00477558

Front panel case for your dryer. This structural component covers the front of the cabinet. Replace if cracked, damaged, or showing wear from use.

More
$113.15

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
204
By: Bosch
Part Number: 00475305
$101.22

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
205
By: Bosch
Part Number: 00621457

Sealing ring creates airtight barrier to prevent leaks in your dryer. Replace when worn or cracked to restore proper seal. Verify fit with your model.

More
$21.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
206
By: Bosch
Part Number: 00641606

This is a heating element assembly that generates heat inside the dryer drum to dry clothes. It consists of a coiled resistance wire mounted within a metal housing. Replace this part if your dryer runs but does not produce heat, takes excessively long to dry clothes, or if the element is visibly broken or damaged.

More
$300.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
207
Product photo
5.0 (1)
By: Bosch
Part Number: 00600157

The Limiter-Temperature is an OEM component specifically designed for select Bosch vented dryers requiring controlled heat. As a safety device, it restricts air exiting the exhaust to prevent accidental ignition of accumulated lint.

Precisely calibrated mechanothermal links automatically trip circuit breakers upon exceeding preset levels. Isolated housings shield reactive alloys from moisture while enabling thermodynamics to naturally trigger protective functions.

Causes requiring replacement involve over-heating from sustained over-drying preventing auto-stops. Physical damage exposing reactive cores could also impair intended response times.

Symptoms signaling the need for a new temperature limiter include:

  • Inability to sense rising exhaust temperatures activating cutoffs
  • Constantly energized heating elements lacking temperature regulation
  • Excessively long or uncontrolled dry cycles posing combustion risks

This OEM Bosch replacement component is also compatible with some Gaggenau, Thermador, and select Kenmore dryers employing sensitive temperature cutoffs. Correct installation restores critical overheat protection circuits.


More
$44.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
208
Product photo
5.0 (1)
By: Bosch
Part Number: 00605401

Dryer won't heat or overheats? This thermal cutoff limiter cuts power to the heating element when temperature exceeds safe limits. Moderate DIY repair.

More
$36.70

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
209
By: Bosch
Part Number: 00249226
$133.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
210
By: Bosch
Part Number: 00600080
$11.22

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
211
Product photo
5.0 (4)
By: Bosch
Part Number: 00070779

This high-temperature 220V, 15-watt oven light bulb restores bright interior lighting so you can monitor cooking progress without opening the door. It's built for sustained heat and replaces a burned-out or flickering lamp.

  • Illuminates the oven cavity during baking, broiling, and cleaning cycles
  • High-temperature design for continuous heat exposure
  • Common failure symptoms: no light when switched on, dim or intermittent illumination, blackened glass, or a broken filament
What's included: One 220V, 15W high-temperature light bulb Installation notes:
  • Disconnect power at the breaker and allow the oven to cool completely
  • Remove the light lens/cover; unthread and remove the old bulb
  • Thread in the new bulb of the same voltage and wattage; do not overtighten
  • Reinstall the cover, restore power, and test the light

More
$13.54

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
212
By: Bosch
Part Number: 00445048
$80.90

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
213
By: Bosch
Part Number: 00445049

Replace your dryer's duct if cracked, damaged, or missing. This duct channels air through the system for proper ventilation and efficient drying performance.

More
$12.90

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
214
Product photo
By: Bosch
Part Number: 00622324

Dryer won't start or door won't stay closed? This door latch assembly secures the door during operation, allowing cycles to run. Moderate DIY repair.

More
$333.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
215
Product photo
By: Bosch
Part Number: 00154165

Dryer door seal creates an airtight barrier to retain heat and improve efficiency. Replace if torn, cracked, or causing heat loss. Verify fit with your model.

More
$25.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
216
Best Seller
Product photo
4.5 (2)
By: Bosch
Part Number: 10010119

Thermister

More
$37.23

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
217
By: Bosch
Part Number: 00600525
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

218
By: Bosch
Part Number: 00611613
$9.48

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
219
By: Bosch
Part Number: 00247610
$207.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
220
5.0 (1)
By: Bosch
Part Number: 00613751

This is a translucent cover that protects the drum light bulb inside the dryer. It snaps into place over the light assembly to shield the bulb from clothing and tumbling items while allowing light to illuminate the drum interior. Replace this cover if it is cracked, missing, or yellowed, which can leave the bulb exposed to damage or reduce visibility inside the drum.

More
$19.76

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
221
By: Bosch
Part Number: 00600155

Replace your dryer door seal to stop air leaks and improve drying efficiency. Install when you notice tears, gaps, or lint escaping. Verify fit with your model.

More
$10.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
223
Best Seller
Product photo
5.0 (3)
By: Bosch
Part Number: 00652184

Captures lint and debris during drying cycles. Replace if damaged, torn, or clogged to restore airflow and drying efficiency. Verify fit with your model.

More
$38.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
224
By: Bosch
Part Number: 00154159
$8.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
225

Nut

By: Bosch
Part Number: 00420271
$6.41

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
226
By: Bosch
Part Number: 00600811

Structural holder component for dryers. Secures internal parts in proper position. Replace if broken, cracked, or missing to restore proper fit.

More
$5.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
227
Product photo
By: Bosch
Part Number: 00600433

Dryer cover restores a secure closure over openings, protecting internal components. Replace when cracked, broken, or missing to maintain fit and appearance.

More
$10.86

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
228
Product photo
By: Bosch
Part Number: 00656841

Seals the gap between your dryer door and drum to contain heat and prevent lint escape. Replace if torn, cracked, or causing longer dry times.

More
$18.42

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
229
By: Bosch
Part Number: 00609166
$10.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
230

Lid

By: Bosch
Part Number: 00680726
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

231
Product photo
By: Bosch
Part Number: 00613598

This is a drum support roller that sits on an axle and helps the dryer drum rotate smoothly during operation. The roller bears the weight of the drum and its contents, reducing friction and noise. Replace this part if you hear thumping, squealing, or rumbling noises while the dryer is running, or if the drum no longer spins freely.

More
$30.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
233
By: Bosch
Part Number: 00604869
$10.42

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
234
By: Bosch
Part Number: 00605995
$149.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
235
By: Bosch
Part Number: 00605994
$111.31

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
236
By: Bosch
Part Number: 00605996

Dryer won't start or shows error codes? A faulty cable harness disrupts electrical connections. This internal wiring assembly restores communication.

More
$86.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
238
By: Bosch
Part Number: 00649038

A replacement sealing that helps keep water and air contained where the appliance needs a tight seal, reducing leaks and maintaining optimal performance. Designed as a direct-fit service part to restore proper sealing. What it does:

  • Forms a watertight barrier at the door or drawer opening to prevent leaks and drips
  • Keeps internal temperatures and pressures stable by sealing the cavity
  • Worn or torn seals can cause water on the floor, poor cleaning/drying, or unusual noises
  • Restoring the seal helps stop common symptoms related to gaps or deterioration
What's included:
  • One replacement sealing
Install notes:
  • Turn off and unplug the appliance and shut off the water supply before beginning repairs
  • Inspect the mounting channel and clean before installing the new seal for best fit
  • Seat the seal evenly around the perimeter; avoid stretching or twisting the material

More
$24.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
