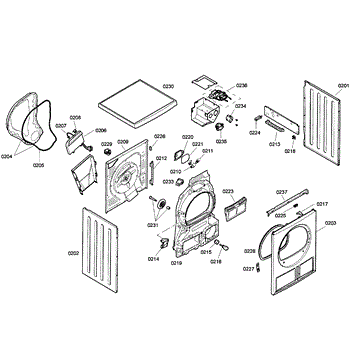

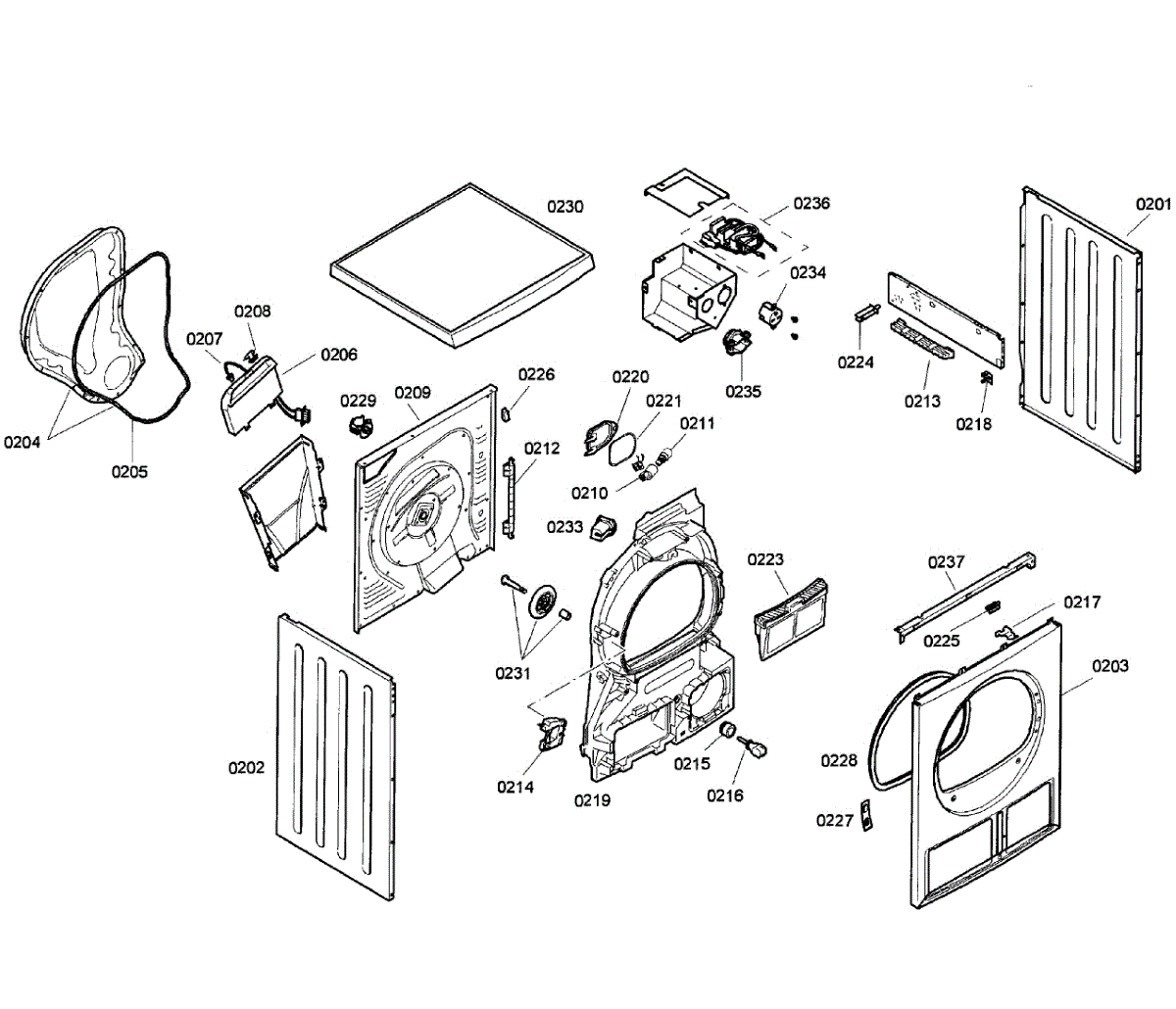

Parts for Bosch WTE86300US/06: Cabinet Parts

This sealing ring provides a tight, low-profile seal to help prevent water or air leaks and keep the appliance operating as designed. It restores the original sealing surface for reliable performance. What it does

• Forms a watertight/airtight barrier at the mating surface to help stop leaks and drips.
• Helps maintain correct pressure and airflow paths inside the appliance.
• Reduces risk of moisture damage to cabinet or components near the seal.
• Common symptom: visible leaking, pooling, or persistent moisture around the joint.

• Inspect mating surfaces for damage, dirt, or residue and clean before installing the seal.
• Replace only with the matching part number to ensure a proper fit and function.
• Avoid stretching, nicking, or twisting the seal during installation; seat it evenly.
• Disconnect power and water and follow manufacturer safety instructions before service.

This heating element replaces the dishwasher's wash water heater to restore normal wash and dry performance. It heats incoming water for better cleaning and helps reduce moisture left in dishes after a cycle. What it does:

• Heats dishwasher wash water to improve detergent activation and soil removal
• Supports dishwasher drying by raising interior temperature during/after the cycle
• Common symptom: dishwasher not heating water or dishes not drying properly
• Common symptom: longer-than-normal cycles or decreased cleaning performance

• Disconnect power and water before beginning repair; this part requires access to the lower tub/pump area
• Inspect and replace any tub gaskets or seals if they are damaged or leaking when reassembling
• Verify electrical connections are secure and test for continuity with a multimeter before and after installation
• If you see corrosion or other damage to mounting hardware, replace affected components to ensure a safe, watertight fit

The Limiter-Temperature is an OEM component specifically designed for select Bosch vented dryers requiring controlled heat. As a safety device, it restricts air exiting the exhaust to prevent accidental ignition of accumulated lint.

Precisely calibrated mechanothermal links automatically trip circuit breakers upon exceeding preset levels. Isolated housings shield reactive alloys from moisture while enabling thermodynamics to naturally trigger protective functions.

Causes requiring replacement involve over-heating from sustained over-drying preventing auto-stops. Physical damage exposing reactive cores could also impair intended response times.

Symptoms signaling the need for a new temperature limiter include:

• Inability to sense rising exhaust temperatures activating cutoffs
• Constantly energized heating elements lacking temperature regulation
• Excessively long or uncontrolled dry cycles posing combustion risks

This OEM Bosch replacement component is also compatible with some Gaggenau, Thermador, and select Kenmore dryers employing sensitive temperature cutoffs. Correct installation restores critical overheat protection circuits.


A temperature limiter (thermal cutoff) that helps protect the appliance by interrupting power to the heating circuit. Replaces a failed limiter to restore proper thermal protection. What it does

• Cuts power to the heater when internal temperature exceeds the designed threshold to prevent overheating.
• Commonly replaced when the appliance produces no heat or the heating element will not stay on.
• Helps stop intermittent or repeated over-temperature events that can trip other safety controls.
• Passive device with no moving parts; activates once its temperature limit is reached.

• One temperature limiter (thermal cutoff) as pictured.

• Disconnect power (and gas supply, if applicable) before accessing internal components.
• Typically mounted near the heater or on the blower housing; handle gently to avoid damaging terminals or insulation.
• Verify continuity with a multimeter before and after replacement to ensure correct operation.
• Do not operate the appliance with panels removed; follow OEM torque and fastening practices.

This high-temperature 220V, 15-watt oven light bulb restores bright interior lighting so you can monitor cooking progress without opening the door. It's built for sustained heat and replaces a burned-out or flickering lamp.

• Illuminates the oven cavity during baking, broiling, and cleaning cycles
• High-temperature design for continuous heat exposure
• Common failure symptoms: no light when switched on, dim or intermittent illumination, blackened glass, or a broken filament

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/cover; unthread and remove the old bulb
• Thread in the new bulb of the same voltage and wattage; do not overtighten
• Reinstall the cover, restore power, and test the light

This door lock/latch assembly secures the dishwasher door during operation to allow cycles to run and helps keep water inside the tub. Replaces a worn or broken latch to restore proper door closure and cycle starts. What it does:

• Secures the dishwasher door so the machine can start and run safely
• Sends the door-closed signal so wash cycles can begin
• Prevents water leaks caused by a faulty or loose latch
• Commonly used when the door won't stay closed, the cycle won't start, or the door feels loose

• Disconnect power and water supply before replacing the latch to avoid shock or unintended operation.
• Access typically requires opening the door inner panel; use proper tools to avoid damage to the door or trim.
• Retain all screws and hardware during disassembly; replace only the parts explicitly included unless other damage is found.

This replacement seal restores a tight, leak-resistant connection between mating components inside your appliance. Replacing a worn seal helps stop drips at the joint and keeps the system operating reliably without nuisance leak faults.

• Forms a compressible barrier between parts to prevent leakage at a connection point
• Helps protect nearby components from moisture intrusion and corrosion
• Typical failure signs: moisture around a joint, puddling beneath the unit, or leak/overflow error messages
• Replace if the original is cracked, flattened, cut, brittle, or missing

• Disconnect power and shut off the water supply before servicing
• Access the connection, note the seal's orientation, and remove the old seal
• Clean mating surfaces; lightly moisten the new seal and seat it evenly without twisting or pinching
• Reassemble and test for leaks before reinstalling covers or panels

The Temperature regulator is an OEM replacement part for Bosch dryers. It is a temperature-sensitive resistor located inside the dryer cabinet that monitors air temperatures throughout drying cycles. The thermistor provides continuous feedback to the control board.

Causes of a faulty thermistor tend to involve gradual sensor drift or physical damage due to extensive exposure to moisture fluctuations and mechanical vibrations inside the drum. Mineral scale buildup could also interfere with resistance readings over time.

Symptoms comprise:

• Inability for the temperature regulator to accurately detect sleeve air temperature
• Fluctuating or inconsistent drying temperatures between loads
• Thermal runaway triggering high-limit cut-offs or error codes
• Prolonged drying times stemming from control faults

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Dryer Lint Filter is an OEM component specifically designed for Bosch dryers. Located inside the dryer door, it prevents lint and other debris from escaping into the surrounding area.

Symptoms of a bad dryer lint filter include:

• Reduced airflow and inefficient drying times
• Lint accumulation inside the dryer drum and ductwork
• Excess lint in the surrounding area and on clothes

Causes of a bad lint filter can include normal wear and tear over time, or damage such as cracks or tears that compromise filtration. Failure to clean after each use also contributes to eventual clogging.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement cover restores a secure, finished closure over its designated opening, helping protect internal components from dust, moisture, and accidental contact. Replace a cracked, loose, or missing cover to maintain proper protection, fit, and appearance.

• Shields internal parts and wiring from debris and accidental contact
• Helps maintain proper sealing and airflow where applicable
• Common signs to replace: cracked, warped, broken tabs, or cover won't stay attached
• Can reduce rattling or vibration noises caused by a loose panel

• Disconnect power; if the appliance is plumbed, turn off water supply before service
• Use the correct driver to remove/replace retaining screws or clips; note orientation
• Transfer any reusable fasteners or grommets from the old part
• Do not overtighten; ensure a flush, secure fit before restoring power

The Sealing is an OEM part for Bosch dryers. This part is responsible for creating a tight seal between the dryer door and the drum, preventing heat, moisture, and lint from escaping during the drying process. It helps to maintain the ideal drying conditions inside the drum, allowing for faster and more effective drying of your laundry.

A bad sealing can occur due to wear and tear, accidental damage, or exposure to high temperatures over time. Signs of a faulty sealing include visible cracks, gaps, or a loose fit between the door and the drum.

Symptoms of a bad sealing include:

• Heat or moisture escaping from the dryer
• Excessive lint buildup around the door
• Longer drying times

Replace your worn-out or damaged dryer door sealing with this genuine OEM Bosch part to restore your dryer. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Wheel is an OEM part for Bosch clothes dryers. It is an essential component that works with the drum to tumble clothes, facilitating effective drying action during cycles.

Wheels can cause shorts and come loose over time from heavy drum usage, leading to:

• Vibrating, shaking noises
• Difficulty spinning the dryer drum by hand
• Stretching or pilling of clothes
• Unerwven drying performance

Causes of a faulty wheel tend to be wear and tear over time from carrying heavy loads inside a spinning drum. Foreign objects inside the drum can also potentially cause damage.

It is also compatible with some Thermador, Gaggenau, and Kenmore dryer models.

A replacement sealing that helps keep water and air contained where the appliance needs a tight seal, reducing leaks and maintaining optimal performance. Designed as a direct-fit service part to restore proper sealing. What it does:

• Forms a watertight barrier at the door or drawer opening to prevent leaks and drips
• Keeps internal temperatures and pressures stable by sealing the cavity
• Worn or torn seals can cause water on the floor, poor cleaning/drying, or unusual noises
• Restoring the seal helps stop common symptoms related to gaps or deterioration

• One replacement sealing

• Turn off and unplug the appliance and shut off the water supply before beginning repairs
• Inspect the mounting channel and clean before installing the new seal for best fit
• Seat the seal evenly around the perimeter; avoid stretching or twisting the material
