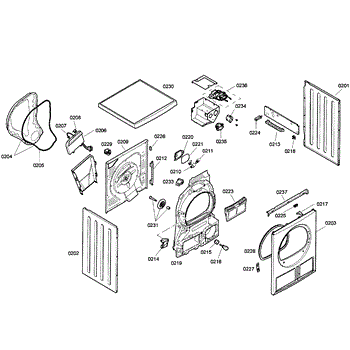

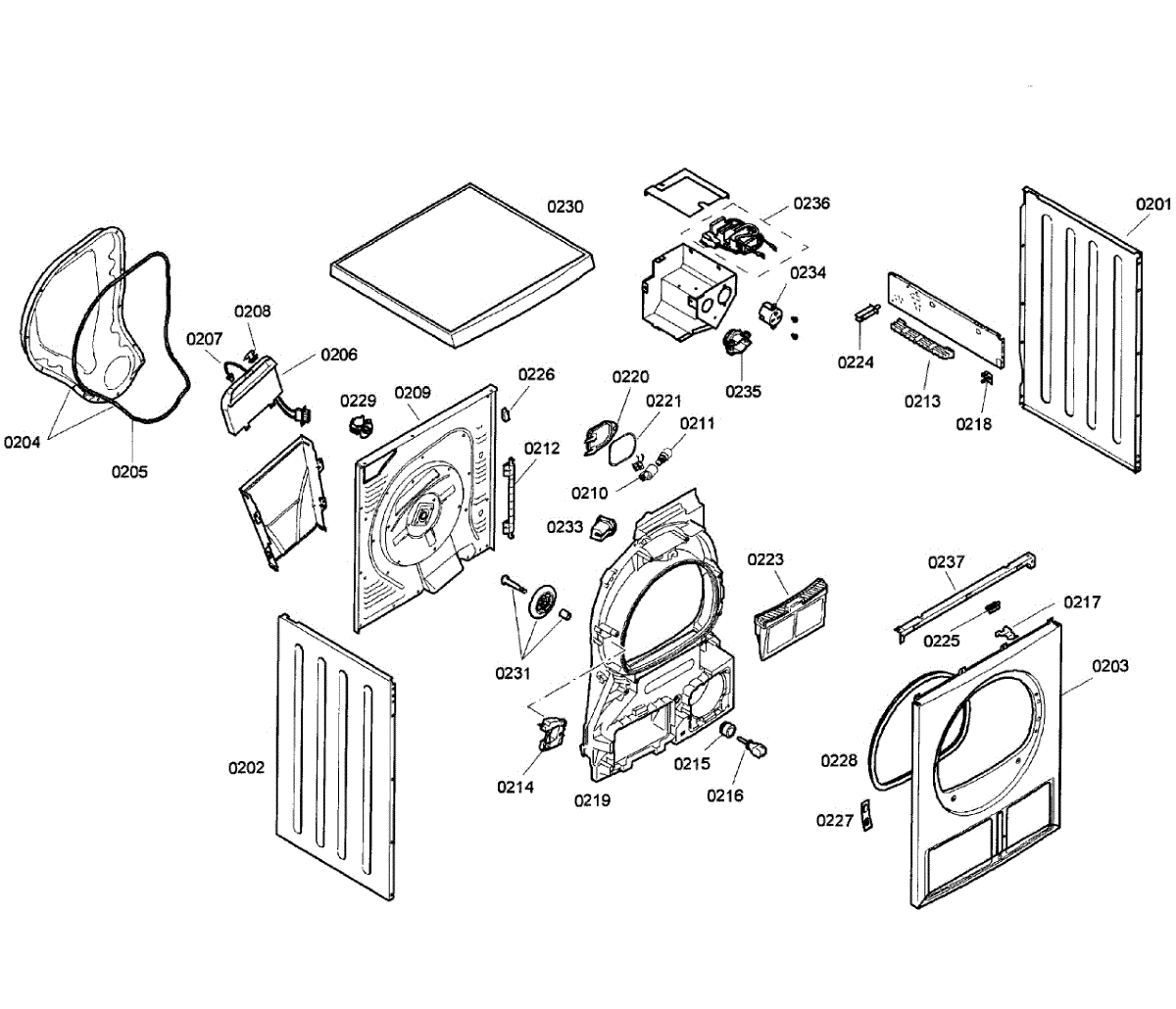

Parts for Bosch WTE86300US/07: Cabinet Parts

Front panel case for your dryer. This structural component covers the front of the cabinet. Replace if cracked, damaged, or showing wear from use.

Sealing ring creates airtight barrier to prevent leaks in your dryer. Replace when worn or cracked to restore proper seal. Verify fit with your model.

Dryer not heating or showing E06 error? A faulty heating element is often the cause. This part warms air in the drum to dry clothes effectively.

The Limiter-Temperature is an OEM component specifically designed for select Bosch vented dryers requiring controlled heat. As a safety device, it restricts air exiting the exhaust to prevent accidental ignition of accumulated lint.

Precisely calibrated mechanothermal links automatically trip circuit breakers upon exceeding preset levels. Isolated housings shield reactive alloys from moisture while enabling thermodynamics to naturally trigger protective functions.

Causes requiring replacement involve over-heating from sustained over-drying preventing auto-stops. Physical damage exposing reactive cores could also impair intended response times.

Symptoms signaling the need for a new temperature limiter include:

• Inability to sense rising exhaust temperatures activating cutoffs
• Constantly energized heating elements lacking temperature regulation
• Excessively long or uncontrolled dry cycles posing combustion risks

This OEM Bosch replacement component is also compatible with some Gaggenau, Thermador, and select Kenmore dryers employing sensitive temperature cutoffs. Correct installation restores critical overheat protection circuits.


If your dryer stops mid-cycle or won't heat, the high limit thermostat may have failed. This safety component prevents overheating by cutting power.

This high-temperature 220V, 15-watt oven light bulb restores bright interior lighting so you can monitor cooking progress without opening the door. It's built for sustained heat and replaces a burned-out or flickering lamp.

• Illuminates the oven cavity during baking, broiling, and cleaning cycles
• High-temperature design for continuous heat exposure
• Common failure symptoms: no light when switched on, dim or intermittent illumination, blackened glass, or a broken filament

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/cover; unthread and remove the old bulb
• Thread in the new bulb of the same voltage and wattage; do not overtighten
• Reinstall the cover, restore power, and test the light

Replace your dryer's duct if cracked, damaged, or missing. This duct channels air through the system for proper ventilation and efficient drying performance.

Dryer won't start or door won't stay closed? This door latch assembly secures the door during operation, allowing cycles to run. Moderate DIY repair.

This replacement seal restores a tight, leak-resistant connection between mating components inside your appliance. Replacing a worn seal helps stop drips at the joint and keeps the system operating reliably without nuisance leak faults.

• Forms a compressible barrier between parts to prevent leakage at a connection point
• Helps protect nearby components from moisture intrusion and corrosion
• Typical failure signs: moisture around a joint, puddling beneath the unit, or leak/overflow error messages
• Replace if the original is cracked, flattened, cut, brittle, or missing

• Disconnect power and shut off the water supply before servicing
• Access the connection, note the seal's orientation, and remove the old seal
• Clean mating surfaces; lightly moisten the new seal and seat it evenly without twisting or pinching
• Reassemble and test for leaks before reinstalling covers or panels

Temperature monitoring sensor located in the dryer's heating system that regulates drying temperatures. Replace if clothes aren't drying properly, take too long to dry, or if the dryer overheats.

This is a translucent cover that protects the drum light bulb inside the dryer. It snaps into place over the light assembly to shield the bulb from clothing and tumbling items while allowing light to illuminate the drum interior. Replace this cover if it is cracked, missing, or yellowed, which can leave the bulb exposed to damage or reduce visibility inside the drum.

Replace your dryer door seal to stop air leaks and improve drying efficiency. Install when you notice tears, gaps, or lint escaping. Verify fit with your model.

Captures lint and debris during drying cycles. Replace if damaged, torn, or clogged to restore airflow and drying efficiency. Verify fit with your model.

Structural holder component for dryers. Secures internal parts in proper position. Replace if broken, cracked, or missing to restore proper fit.

Dryer cover restores a secure closure over openings, protecting internal components. Replace when cracked, broken, or missing to maintain fit and appearance.

Seals the gap between your dryer door and drum to contain heat and prevent lint escape. Replace if torn, cracked, or causing longer dry times.

This is a drum support roller that sits on an axle and helps the dryer drum rotate smoothly during operation. The roller bears the weight of the drum and its contents, reducing friction and noise. Replace this part if you hear thumping, squealing, or rumbling noises while the dryer is running, or if the drum no longer spins freely.

Dryer won't start or shows error codes? A faulty cable harness disrupts electrical connections. This internal wiring assembly restores communication.

A replacement sealing that helps keep water and air contained where the appliance needs a tight seal, reducing leaks and maintaining optimal performance. Designed as a direct-fit service part to restore proper sealing. What it does:

• Forms a watertight barrier at the door or drawer opening to prevent leaks and drips
• Keeps internal temperatures and pressures stable by sealing the cavity
• Worn or torn seals can cause water on the floor, poor cleaning/drying, or unusual noises
• Restoring the seal helps stop common symptoms related to gaps or deterioration

• One replacement sealing

• Turn off and unplug the appliance and shut off the water supply before beginning repairs
• Inspect the mounting channel and clean before installing the new seal for best fit
• Seat the seal evenly around the perimeter; avoid stretching or twisting the material
