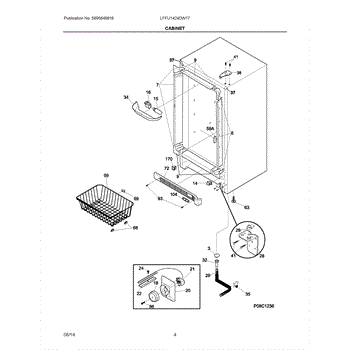

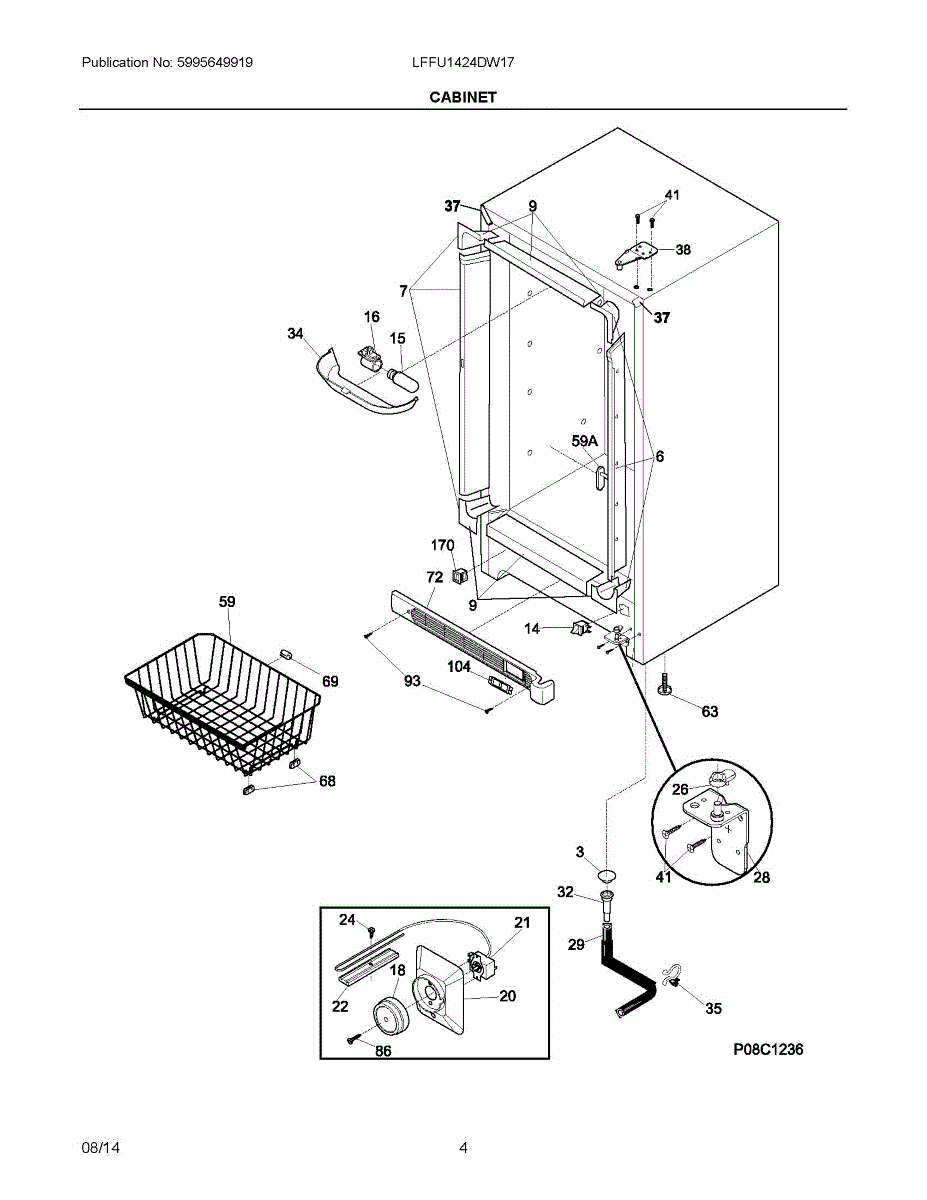

Parts for Electrolux LFFU1424DW17: 03 - Cabinet Parts

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This light socket securely holds the appliance bulb and provides the electrical connection to illuminate the compartment when the door is opened. Replacing a faulty socket restores interior lighting so you can easily see contents.

• Provides the electrical connection and physical mounting for the light bulb
• Common failure symptoms: light won't turn on, flickers, or only works when the bulb is jiggled
• Show signs of heat discoloration, loose terminals, or intermittent contact

• Unplug the appliance before service; power is off
• Allow the bulb and surrounding area to cool before handling
• Handle wiring carefully; transfer conductors to the new socket one at a time to maintain correct connections
• Do not exceed the bulb type/wattage specified on the appliance rating label

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

The Temperature Control is an OEM part for Frigidaire freezers. It is responsible for regulating and maintaining the desired temperature inside your freezer to keep your frozen goods fresh and preserved. This temperature control features a user-friendly interface that allows you to select the ideal temperature to suit your freezing needs.

A bad temperature control can be caused by electrical issues, component failure, or physical damage. Signs of a faulty temperature control include inaccurate temperature readings, failure to reach or maintain the desired temperature, or unresponsive controls.

Symptoms of a bad temperature control include:

• Inaccurate temperature readings
• Freezer not reaching the desired temperatures
• Unresponsive temperature control

Replace your defective or damaged temperature control with this genuine OEM Frigidaire part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This bottom hinge replaces the lower door pivot on compatible Frigidaire refrigerators to restore proper door alignment and smooth opening. It provides a secure pivot point to help maintain an even close and consistent seal. What it does:

• Supports and pivots the lower edge of the refrigerator door for smooth opening and closing.
• Helps maintain correct door alignment so the gasket seals evenly.
• Common replacement for doors that sag, bind, or do not close evenly.
• Works with the factory mounting hardware and hinge locations on compatible models.

• Disconnect power and remove food and loose items from the door before starting.
• Always support the door while removing or installing the hinge to prevent injury or damage.
• Use appropriate hand tools and avoid overtightening fasteners; check door alignment after installation.
• Refer to your model's service manual or official parts diagram for model-specific steps and torque specs.

This Hose-Drain is the appliance drain line that carries waste water away from the unit to the household drain, helping restore proper draining and prevent water buildup. Replace a cracked or clogged hose to stop leaking and poor drain performance. What it does:

• Channels wastewater from the appliance to the household drain or disposal
• Restores normal draining when a worn or damaged hose causes pooling or slow drain
• Helps prevent leaks and water damage caused by cracks, splits, or loose connections
• Works with the appliance's existing clamps and fittings to maintain a sealed drain path

• One Hose-Drain

• Disconnect power and water supply before servicing; follow appliance safety guidelines
• Inspect and reuse or replace clamps/fittings as needed for a secure seal
• Route the hose to match the original path, avoiding kinks or tight bends
• After installation, run a short cycle and check all connections for leaks

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

A replacement interior light shield that protects the refrigerator light and helps diffuse illumination for even lighting throughout the fresh-food compartment. Restores proper light coverage after a cracked or missing lens. What it does:

• Covers and protects the fridge light bulb from spills, debris and accidental contact
• Diffuses light for more even interior illumination
• Prevents direct glare from the bulb to make contents easier to see
• Commonly replaced when cracked, broken, yellowed, or missing

• Remove power to the appliance before starting—unplug or switch off the breaker
• Typically snaps or screws into place; handle gently to avoid cracking the new lens
• Use a soft cloth and mild cleaner; avoid abrasive pads or harsh solvents
• Inspect the housing and replace hardware as needed

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

This upper door hinge supports the refrigerator/freezer door at the top pivot, keeping it aligned so the gasket seals and the door opens smoothly. Replacing a worn hinge helps restore proper door swing and reliable closing.

• Supports and pivots the door at the top hinge point
• Maintains door alignment for an even, consistent gasket seal
• Helps prevent door sagging, rubbing, or binding
• Worn hinge symptoms include misalignment, squeaks, poor sealing, or the door popping open

• Disconnect power; remove items from the door.
• Support the door to prevent dropping; remove hinge cover and mounting screws.
• Lift the door off the lower hinge, transfer any spacers/shims, and install the new upper hinge.
• Reinstall and align the door; tighten hardware and verify gasket contact all around.

Specs: Hex head ,1/4-20 x 5/8

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement slide is a small guide piece that helps a movable component in your appliance travel smoothly and stay aligned, restoring easy, consistent operation when the original wears or breaks and causes sticking or rough movement.

• Guides a moving part along its track for smooth, stable travel
• Helps maintain alignment to reduce friction, binding, and uneven motion
• Worn slides can cause sticking, scraping, popping noises, or misalignment
• Visible wear, cracks, or deformation indicate the slide should be replaced

• Disconnect power and shut off gas/water supplies before servicing
• Note the original slide's orientation and mounting points for accurate reinstallation
• Reuse existing screws/clips if applicable; tighten securely without overtightening
• Cycle the component through its full travel to ensure smooth operation

This is an authentic OEM freezer basket bumper sourced directly from the manufacturer for use on freezer baskets. Freezer basket bumpers are attached to the baskets to keep them from sliding around inside the freezer. If the bumper breaks, the basket will not stay in place, and the contents could shift or fall out. Freezer baskets create more storage room inside a freezer. These baskets are normally located on the bottom of the freezer, with freezer racks located above. Freezer baskets are ideal for storing smaller packages that might not stack well on the racks. Over time, normal wear and tear may cause the bumper to crack or break completely; if this happens, the bumper should be replaced. Remove the contents of the freezer basket. Remove the freezer basket from the freezer. Push the new bumper onto the freezer basket. Replace the contents of the basket and put it back into the freezer. This handle freezer basket is made of high-quality, white molded plastic. It is designed for use in freezers manufactured by Frigidaire, Kenmore, Gibson, and Electrolux.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production when the valve is faulty or worn. What it does:

• Opens and shuts to allow water into the ice maker and dispenser when activated
• Common symptom: no water to dispenser or ice maker
• Common symptom: reduced or intermittent water flow from dispenser
• Common symptom: ice maker not filling or producing smaller/soft ice
• Can cause visible leaks at the valve or connections when failing

• One water inlet valve assembly

• Turn off water supply and unplug appliance before beginning work
• Relieve any pressure in the water line and have towels handy for minor spills
• Verify inlet/outlet hose orientation and tighten all fittings to OEM torque; use replacement gaskets if supplied

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
