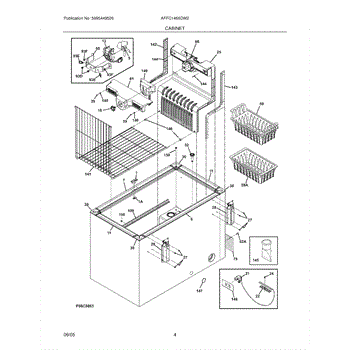

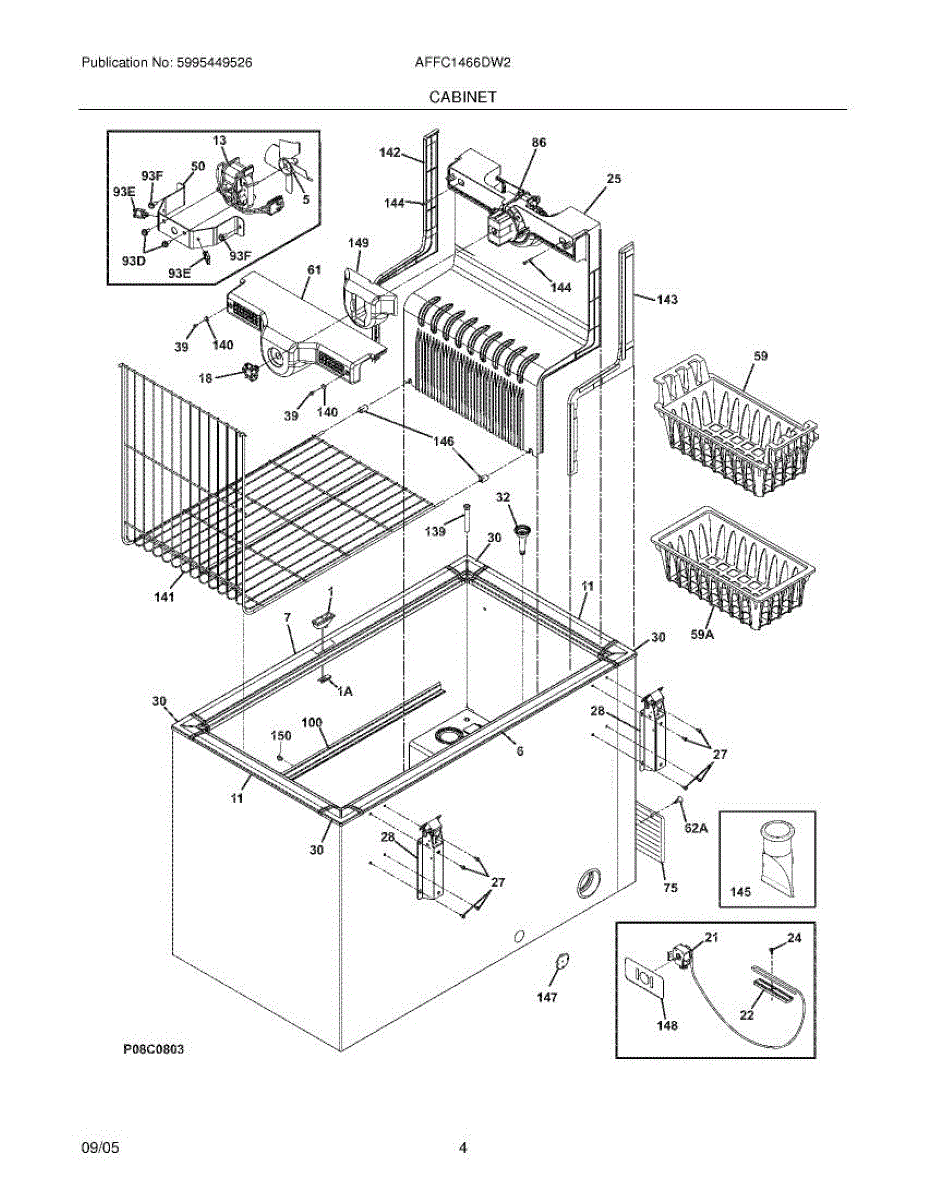

Parts for Frigidaire AFFC1466DW2: 05 - Cabinet Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

This hinge assembly provides the pivot and support for your freezer door or lid, allowing smooth opening and secure closing. Replacing a worn hinge restores alignment and helps the gasket seal to keep cold air contained.

• Supports and pivots the door/lid during opening and closing
• Maintains alignment so the door/lid closes fully and seals properly
• Can help resolve sagging, binding, scraping noises, or doors not closing all the way
• Replaces a bent, cracked, or seized hinge assembly

• Disconnect power before service; wear gloves.
• Support the door or lid and use a second person to prevent drops or damage.
• Transfer any spacers, bushings, or covers from the old hinge if required.
• Align the hinge, tighten fasteners, and verify smooth operation and gasket seal.

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly

Color: white. Measures about 12 inches wide by 6 inches high by 23 inches deep.

The lower basket holds and organizes items in the bottom section of the freezer. Replace a bent, broken, or missing basket to restore tidy storage and easier access to food in the lower compartment.

• Provides stable, contained storage in the lower freezer area
• Replaces a damaged, bent, rusted, or missing lower basket
• Helps keep food visible and accessible, reducing clutter
• If the basket won't sit level or shows broken wires/coating, replacement is recommended

• Unplug the appliance before servicing
• Empty the compartment and lift out the old basket
• Set the new basket onto the lower supports and ensure it sits level and secure
• Reload items evenly to prevent tipping

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

A small replacement cover screw used to secure appliance covers and small access panels, restoring a snug fit and reducing vibration or rattling. Fits specific Frigidaire assemblies where a short machine screw is required. What it does

• Secures trim, cover plates, or small access panels to prevent gaps and movement.
• Stops covers from vibrating or rattling during operation.
• Replaces missing or damaged screws that can leave covers loose or misaligned.
• Helps maintain safe, normal appliance operation by keeping panels properly fastened.

• One cover screw

• Disconnect power before accessing internal panels or controls.
• Use the correct screwdriver or bit to avoid stripping the head.
• Thread the screw in by hand first, then tighten snugly — avoid overtightening.
• Keep removed screws in a container to prevent loss during service.

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. Use when original fasteners are lost, stripped, or damaged to keep parts aligned and prevent noise or movement. What it does:

• Fastens trim, panels, brackets or small components to maintain proper alignment
• Helps stop rattling, vibration, or loose parts caused by missing or worn screws
• Replaces stripped or corroded screws to restore secure connections
• Matches the original mounting function for reliable holding strength when correctly installed

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and hand-start screws to prevent cross-threading; tighten securely but avoid over-torquing
• If threads in the mating part are damaged, inspect and repair or replace the mating part rather than over-driving a screw

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
