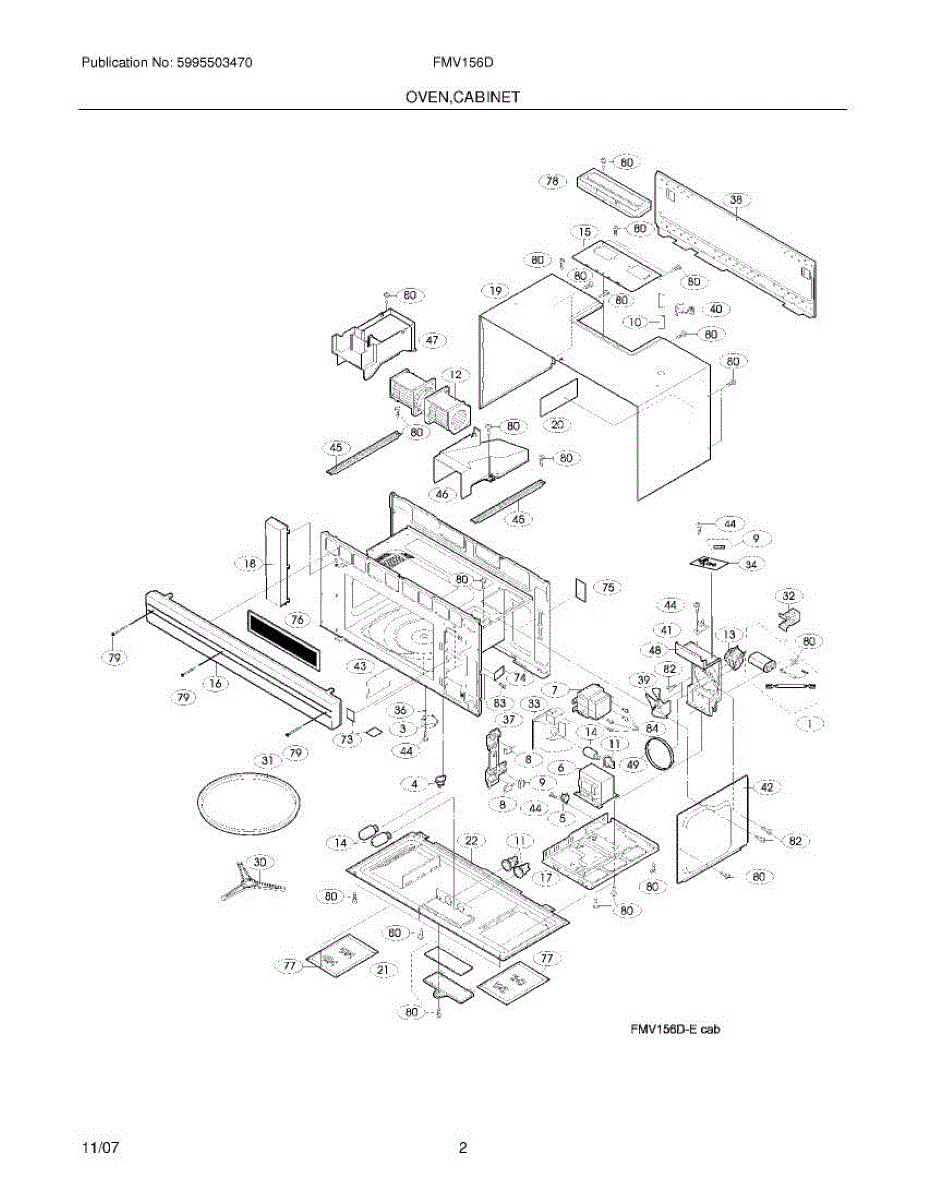

Parts for Frigidaire FMV156DBF: 03 - Cabinet Parts

This replacement motor restores reliable rotation to the component it drives—bringing back proper airflow or mechanical movement so your appliance runs as designed and noise is minimized.

• Converts electrical energy into steady shaft rotation to power the attached fan, blower, or mechanism
• Common failure signs: won't start, only hums, stalls, or intermittently runs
• Worn bearings or windings can lead to overheating and reduced performance

• Disconnect power before servicing; if the unit uses capacitors, discharge them per the service manual
• Note wire locations and transfer any brackets, grommets, or fan blades from the old motor
• Mount securely, align the shaft, and confirm correct rotation before finalizing
• Spin the shaft by hand to check for free movement, then test for smooth, quiet operation

This control switch regulates heat to a surface burner so the cooktop reaches and holds the selected temperature. Restores responsive burner control and consistent cooking performance. What it does:

• Sends variable power to a surface burner to adjust heat levels as you set the knob
• Commonly replaces a switch that causes a burner to stay cold, not heat, or only work at one setting
• Can fix clicking, intermittent operation, or loss of variable control on the affected element
• Works with the cooktop's control knob and wiring harness to manage element output

What's included:

• One replacement infinite burner control switch

Install notes:

• Disconnect power to the appliance before beginning any work
• Remove the cooktop or control panel as needed to access the switch; keep track of mounting hardware
• Match wire locations and connector orientation when reattaching harness; take a photo first if helpful

Microwave not heating or making loud buzzing noise? The magnetron converts electricity into microwave energy. Common DIY repair, typically done in 30 minutes.

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This switch/fuse kit replaces a worn or failed control switch and associated fuse to restore reliable power control. It provides the exact components needed to address common start and power interruptions. What it does:

• Replaces a faulty control switch to restore on/off or cycle control
• Replaces the protective fuse to stop power loss from a blown fuse
• Helps resolve no-start, intermittent power, or control failures
• Restores proper electrical continuity for safe operation

• Disconnect power to the appliance before starting any work
• Handle electrical components carefully and avoid metal contact with terminals
• Verify correct part orientation and secure all connections per OEM guidance

Replacement power cord for your microwave. Connects the appliance to your electrical outlet. Order a new cord if yours is frayed, damaged, or missing.

This hood fan motor drives the exhaust blower to remove smoke, steam and cooking odors from your range hood, restoring ventilation and airflow. Fits as a direct replacement motor when the original has failed. What it does:

• Spins the hood blower to move air out of the vent assembly
• Restores airflow when the fan is not running or runs weakly
• Stops humming, grinding or intermittent operation caused by a failed motor
• Works with existing blower wheel and housing when compatible

• One hood fan motor

• Disconnect power to the appliance before starting any work
• Follow OEM instructions for motor removal; keep track of mounting hardware and wiring
• Watch for sharp sheet-metal edges inside the hood; use gloves and eye protection
• After installation, restore power and test the fan on all speed settings

Fix a microwave that overheats or shuts off unexpectedly with this cooling fan motor. Common repair for loud fan noises or ventilation failures.

Restores interior and cooktop lighting in your microwave. Replace when bulb burns out or dims for clear visibility. Verify fit with your model number.

Black exhaust louver grille that covers the vent opening on your microwave. Replace if cracked, broken, or missing to restore a finished appearance.

This is a black plastic lens and frame assembly that covers the interior lamp on a microwave oven. It protects the light bulb from grease and moisture while diffusing light inside the cooking cavity. Replace this lens if it is cracked, yellowed, melted, or missing, which can leave the bulb exposed to splatter and reduce interior illumination.

This is the roller guide assembly that sits on the floor of the microwave and supports the glass turntable tray, allowing it to rotate smoothly during cooking. It typically consists of a ring with small wheels or rollers. Replace this part if the turntable wobbles, does not rotate evenly, or if the rollers are broken or worn, which can cause uneven cooking or noise during operation.

Replacement glass turntable tray for your microwave. Installs on the rotating support to hold food during cooking. Replace if cracked, chipped, or broken.

Microwave won't turn on, made popping noise, or smells like burned electrical? The noise filter often fails when solder joints arc or short out.

This bushing guides and supports a rotating shaft to reduce wear and keep moving parts aligned, restoring smooth, quiet operation. Fits specific Frigidaire appliances—use the OEM part number to fit for your model. What it does

• Supports a rotating shaft or drum to prevent metal-on-metal contact
• Reduces friction and wear that can cause squeaks, grinding, or rough rotation
• Helps maintain proper alignment for consistent appliance performance
• Commonly replaces worn or damaged bushings that allow excessive play

• Disconnect power before servicing and access the affected assembly per your model's service manual
• Remove the worn bushing and any debris; press or tap the new bushing into place squarely
• Inspect mating shaft/surface for scoring or wear; replace or repair if damaged
• Use only OEM-recommended lubricants if specified by the manufacturer; do not assume grease is required

This is a plastic bracket that holds the door interlock switches in proper alignment inside the microwave's door latch assembly. It ensures the switches are correctly positioned to detect when the door is open or closed. Replace this part if the microwave won't start, runs with the door open, or if the switch holder is cracked or broken.

Microwave overheating or not venting properly? A worn blower wheel restricts airflow. This fan blade restores cooling and exhaust ventilation.

Protective panel that shields microwave magnetron from grease and food splatter. Snaps into interior cavity. Replace when cracked, burned, or missing.

Mounting support plate for microwave installation. Provides structural stability for secure wall or cabinet mounting. Replace if cracked, bent, or missing.

Replacement air duct for your microwave ventilation system. Installs between the fan and exterior vent. Order a new duct if yours is cracked or damaged.

This replacement appliance label provides the factory identification and safety information fastened to the appliance so you can read model/serial and safety/warning text clearly. It restores legible markings for servicing and ownership records. What it does

• Shows the appliance identification, model/serial or rating area and factory safety/warning text so technicians and owners can service data.
• Helps ensure required safety and operating instructions remain visible and readable.
• Replaces a torn, faded, or missing label that can make identification and troubleshooting harder.
• Supports accurate parts ordering and service by restoring the original markings.

• One replacement label

• Peel-and-stick replacement; clean and dry the surface thoroughly before applying.
• Align carefully and press from one edge to the other to avoid bubbles; firm pressure ensures adhesion.
• Do not stretch or trim the label unless explicitly specified by the equipment instructions.
• For safety, disconnect power or follow manufacturer safety precautions before working near electrical components.

This charcoal filter fits inside an over-the-range microwave and absorbs odors and smoke when the unit is set to recirculate air rather than vent outside. It is typically located behind the vent grille on the top or rear of the microwave. Replace this filter if you notice lingering cooking odors, reduced ventilation effectiveness, or if it has been in use for six months or more.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 5-7/8" x 7-7/8" x 3/32" (5.875 x 7.875 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

Controls airflow in your microwave's exhaust vent system. Installs between blower and duct. Replace if cracked, broken, sticking, or missing.

Replacement screw fastener for microwaves. Secures panels, brackets, and trim pieces in place. Needed when original screws are stripped, lost, or missing.

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing
