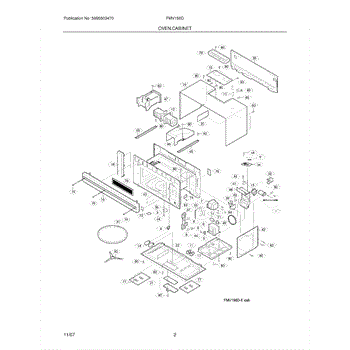

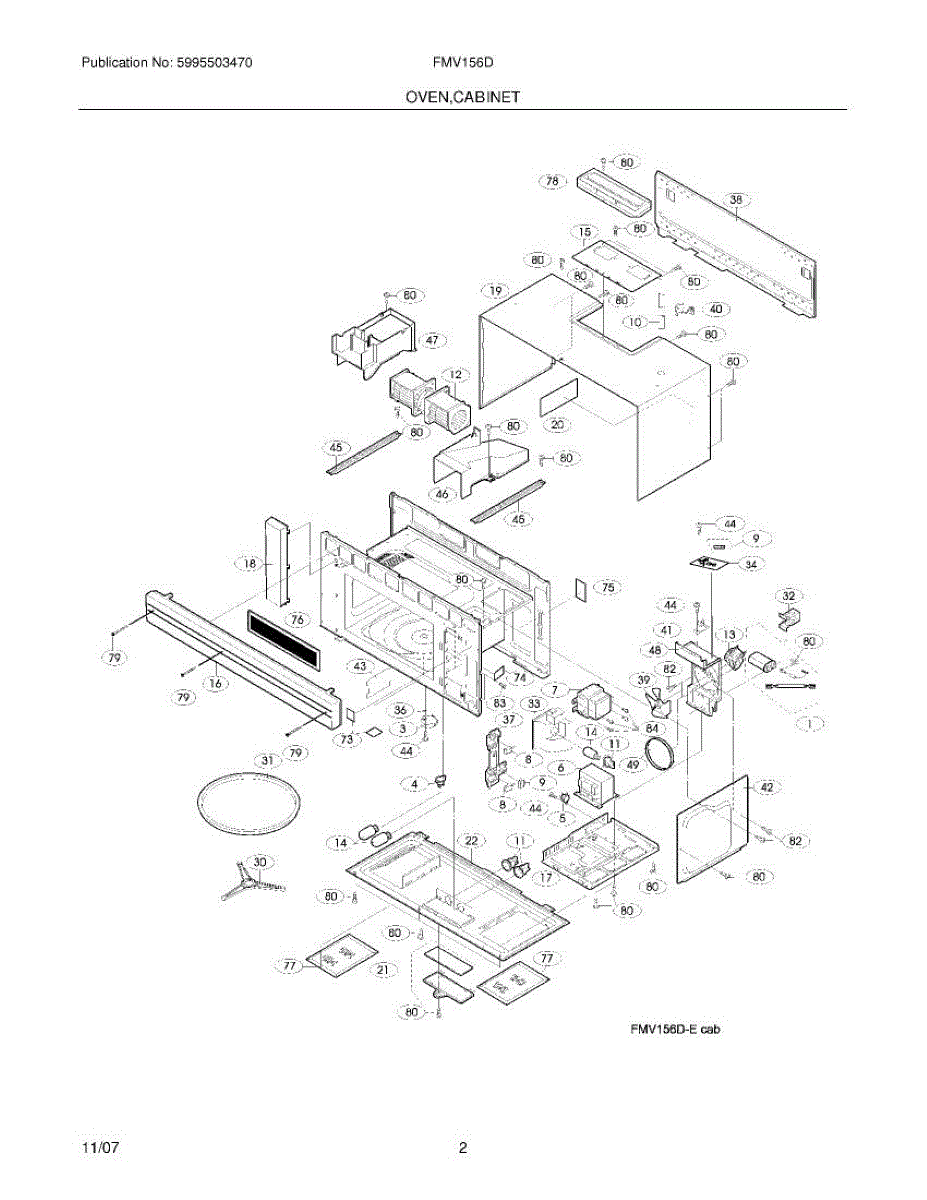

Parts for Frigidaire FMV156DSF: 03 - Cabinet Parts

This replacement motor restores reliable rotation to the component it drives—bringing back proper airflow or mechanical movement so your appliance runs as designed and noise is minimized.

• Converts electrical energy into steady shaft rotation to power the attached fan, blower, or mechanism
• Common failure signs: won't start, only hums, stalls, or intermittently runs
• Worn bearings or windings can lead to overheating and reduced performance

• Disconnect power before servicing; if the unit uses capacitors, discharge them per the service manual
• Note wire locations and transfer any brackets, grommets, or fan blades from the old motor
• Mount securely, align the shaft, and confirm correct rotation before finalizing
• Spin the shaft by hand to check for free movement, then test for smooth, quiet operation

This control switch regulates heat to a surface burner so the cooktop reaches and holds the selected temperature. Restores responsive burner control and consistent cooking performance. What it does:

• Sends variable power to a surface burner to adjust heat levels as you set the knob
• Commonly replaces a switch that causes a burner to stay cold, not heat, or only work at one setting
• Can fix clicking, intermittent operation, or loss of variable control on the affected element
• Works with the cooktop's control knob and wiring harness to manage element output

• One replacement infinite burner control switch

• Disconnect power to the appliance before beginning any work
• Remove the cooktop or control panel as needed to access the switch; keep track of mounting hardware
• Match wire locations and connector orientation when reattaching harness; take a photo first if helpful

The Magnatron is an OEM part for Frigidaire microwaves. It is the principal electronic component responsible for converting electrical energy into microwave radiation, allowing for fast and efficient cooking or heating of food.

Causes can be related to normal component fatigue over extended use. High voltage magnetron coils are also susceptible to power fluctuations or surges over time.

Symptoms of a faulty magnatron include:

• Inability of the microwave to transmit energy and heat foods
• Slow or ineffective cooking times
• Oven light working but no microwave output
• Overheating, arcing or burning smells from the unit

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Door Switch is an OEM replacement part for Frigidaire wall ovens. It is a component located on the oven door that detects when the door is opened and closed. The door switch works alongside the control board to regulate oven operations based on door position.

Symptoms of a bad door switch can include:

• Oven failing to automatically go into bake or warm modes after door closure
• Interior lights not turning on when the door is opened
• Control buttons/display remaining constantly lit instead of dimming
• Oven not heating or functioning properly in different modes

Causes relate to normal wear over extended use as the door switch mechanism cycles with frequent door openings and closings. Moisture exposure or impacts could also degrade switch performance.

This OEM Frigidaire switch is compatible with Amana, Jenn-Air, KitchenAid, and some Electrolux wall oven models as well.

This switch/fuse kit replaces a worn or failed control switch and associated fuse to restore reliable power control. It provides the exact components needed to address common start and power interruptions. What it does:

• Replaces a faulty control switch to restore on/off or cycle control
• Replaces the protective fuse to stop power loss from a blown fuse
• Helps resolve no-start, intermittent power, or control failures
• Restores proper electrical continuity for safe operation

• Disconnect power to the appliance before starting any work
• Handle electrical components carefully and avoid metal contact with terminals
• Verify correct part orientation and secure all connections per OEM guidance

This hood fan motor drives the exhaust blower to remove smoke, steam and cooking odors from your range hood, restoring ventilation and airflow. Fits as a direct replacement motor when the original has failed. What it does:

• Spins the hood blower to move air out of the vent assembly
• Restores airflow when the fan is not running or runs weakly
• Stops humming, grinding or intermittent operation caused by a failed motor
• Works with existing blower wheel and housing when compatible

• One hood fan motor

• Disconnect power to the appliance before starting any work
• Follow OEM instructions for motor removal; keep track of mounting hardware and wiring
• Watch for sharp sheet-metal edges inside the hood; use gloves and eye protection
• After installation, restore power and test the fan on all speed settings

This replacement lamp restores illumination in your appliance's lighted area. Installing a new lamp brings back clear visibility so you can easily see contents and settings during use.

• Provides light when the door opens or the light switch is turned on
• Replaces a bulb that is burned out, dim, or flickering
• Common symptoms: light not working, intermittent operation, or a blackened/broken filament
• Restores interior/work-area visibility for safer, easier use

• Disconnect power to the appliance before servicing
• Allow the lamp and surrounding area to cool completely before handling
• Handle glass with a clean cloth or gloves; avoid touching the glass directly
• Replace only with the same type and rating specified by the manufacturer

This support assembly secures and stabilizes an appliance component to the cabinet or frame, restoring proper alignment and reducing vibration. Ideal when a broken or worn support causes movement or instability of the affected area. What it does:

• Provides structural mounting to keep panels, controls, or other components properly aligned.
• Reduces vibration, rattling, or visible sagging caused by a failed or loose support.
• Restores reliable attachment after damage, deformation, or worn mounting points.
• Matches OEM diagram locating for direct-replacement fit when replacing the faulty part.

• Disconnect power and unplug the appliance before starting any repair.
• Follow the OEM diagram for correct placement and fastener locations.
• Use appropriate hand tools and wear gloves to avoid sharp edges; inspect surrounding mounting hardware and replace if damaged.

This glass turntable tray provides a stable, heat-resistant surface that rotates food inside the microwave for more even cooking and reheating. It replaces a damaged or missing tray to restore proper rotation and support. What it does:

• Supports plates, bowls and containers while the microwave's turntable motor rotates them for even heating.
• Transfers rotation from the drive coupling through the roller/guide assembly to the glass tray.
• Restores stable, level rotation when the original tray is cracked, chipped, or missing.
• Helps prevent food spills inside the cavity by providing a flat, easy-to-clean surface.

• One glass turntable tray.

• Handle the glass carefully to avoid chips or cracks; wear gloves if necessary.
• Place tray onto the roller/guide and align with the drive coupling; it turns freely before use.
• Clean with mild detergent and non-abrasive cloth; do not use if the glass is cracked or severely chipped.
• If rotation problems persist after replacing the tray, check the roller/guide and drive coupling for wear.

This is a replacement refrigerator water filter cartridge that helps reduce taste and odor from your drinking water and ice for cleaner, better-tasting results. Ideal for refrigerators that use an inline/cartridge-style filter. What it does:

• Filters chlorine taste and odor to improve water and ice flavor
• Helps reduce common particulates and sediments from the water flow
• Restores normal water dispensing performance when the original filter is exhausted
• Commonly replaced when water tastes off, ice smells, or water flow is reduced

• Replace with the refrigerator powered off or water supply shut off when possible
• Follow refrigerator manufacturer instructions for proper seating, alignment, and filter reset
• Flush several gallons of water through the dispenser after installation to clear air and loose carbon fines
• Dispose of the used cartridge according to local regulations

This bushing guides and supports a rotating shaft to reduce wear and keep moving parts aligned, restoring smooth, quiet operation. Fits specific Frigidaire appliances—use the OEM part number to fit for your model. What it does

• Supports a rotating shaft or drum to prevent metal-on-metal contact
• Reduces friction and wear that can cause squeaks, grinding, or rough rotation
• Helps maintain proper alignment for consistent appliance performance
• Commonly replaces worn or damaged bushings that allow excessive play

• Disconnect power before servicing and access the affected assembly per your model's service manual
• Remove the worn bushing and any debris; press or tap the new bushing into place squarely
• Inspect mating shaft/surface for scoring or wear; replace or repair if damaged
• Use only OEM-recommended lubricants if specified by the manufacturer; do not assume grease is required

This latch hook secures the refrigerator/freezer door, helping keep it closed for proper cooling and efficient operation. Replace a worn or broken latch hook to restore a tight door seal and reliable door closure. What it does:

• Engages with the strike or catch to hold the door closed
• Prevents unintended door opening that can cause temperature loss
• Restores smooth latching action when the original hook is damaged or bent
• Simple mechanical part—no electronics or wiring

• One latch hook

• Disconnect power to the appliance before beginning any repair
• Remove the inner door panel or access trim as needed to reach the latch area
• Use appropriate screwdrivers; keep fasteners organized for reassembly
• Test the door closure after installation to ensure proper alignment and seal

This replacement cover is a protective panel used in the microwave assembly. It shields internal components from grease and debris and restores a clean, secure barrier when the original cover is cracked, burned, or missing.

• Shields internal components from food splatter, steam, and grease
• Helps maintain proper airflow and safe operation inside the cavity
• Common signs it's needed: cover is warped, cracked, scorched, loose, or missing
• Reduces arcing/sparking or buzzing caused by a damaged or contaminated cover

• Disconnect power before servicing; allow hot surfaces to cool
• Remove screws or release tabs to take off the damaged cover; reuse existing hardware if applicable
• Clean surrounding area to remove grease or debris, then seat the new cover fully and secure without overtightening
• For microwaves, internal high voltage can remain even when unplugged.

This replacement appliance label provides the factory identification and safety information fastened to the appliance so you can read model/serial and safety/warning text clearly. It restores legible markings for servicing and ownership records. What it does

• Shows the appliance identification, model/serial or rating area and factory safety/warning text so technicians and owners can service data.
• Helps ensure required safety and operating instructions remain visible and readable.
• Replaces a torn, faded, or missing label that can make identification and troubleshooting harder.
• Supports accurate parts ordering and service by restoring the original markings.

• One replacement label

• Peel-and-stick replacement; clean and dry the surface thoroughly before applying.
• Align carefully and press from one edge to the other to avoid bubbles; firm pressure ensures adhesion.
• Do not stretch or trim the label unless explicitly specified by the equipment instructions.
• For safety, disconnect power or follow manufacturer safety precautions before working near electrical components.

The Grease Filter is an OEM replacement part for Frigidaire microwaves. It traps grease-laden smoke and particles released from cooking. Color: silver. Measures about 6 inches wide by 8 inches deep.

Causes of a bad grease filter can include clogging from accumulated grease and debris, physical damage from cleaning or handling, or wear and tear over time. A clogged or damaged filter can reduce the efficiency of the range hood, leading to poor ventilation and potential damage to the range hood motor.

Symptoms of a bad grease filter include:

• Reduced airflow or suction
• Excessive smoke or odors during cooking
• Grease buildup on kitchen surfaces
• Visible damage or clogging of the filter

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This damper assembly controls airflow for the exhaust vent, opening with the blower and closing when off to block backdrafts. Replace a cracked, missing, or sticking damper to restore proper venting and reduce noise and drafts.

• Opens during fan operation to let cooking air exit through the duct; closes when off to prevent outside air from entering
• Helps maintain correct airflow to capture steam, smoke, and odors
• Common symptoms: poor venting, rattling/clacking noises, cold air drafts through the unit, visible broken or missing flap
• A stuck or binding damper can cause louder fan noise and weak airflow

• Disconnect power before servicing; remove the vent cover/adapter to access the damper
• Note airflow arrow and hinge orientation; install so the flap swings freely in the exhaust direction
• Reuse existing screws and seals; replace any damaged foil tape or gaskets to prevent leaks
• After installation, run the fan to ensure the damper opens/closes smoothly without rattling

This is a replacement screw used to secure appliance components and panels so assemblies stay stable and aligned. It provides a straightforward fix when a mounting fastener is missing, stripped, or damaged. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Stops rattling or loose parts caused by missing or damaged screws
• Restores proper fit and alignment of the affected assembly
• Works wherever the OEM-designated screw of this size and thread is required

• Turn power off or unplug the appliance before working on electrical areas
• Use the proper-size driver to avoid stripping the head
• Start threads by hand, then tighten until snug — do not overtighten
• If the original screw is corroded or the hole is damaged, inspect mating parts for repair before installing
