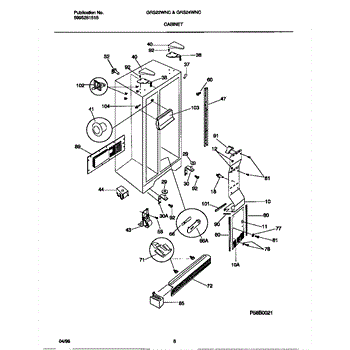

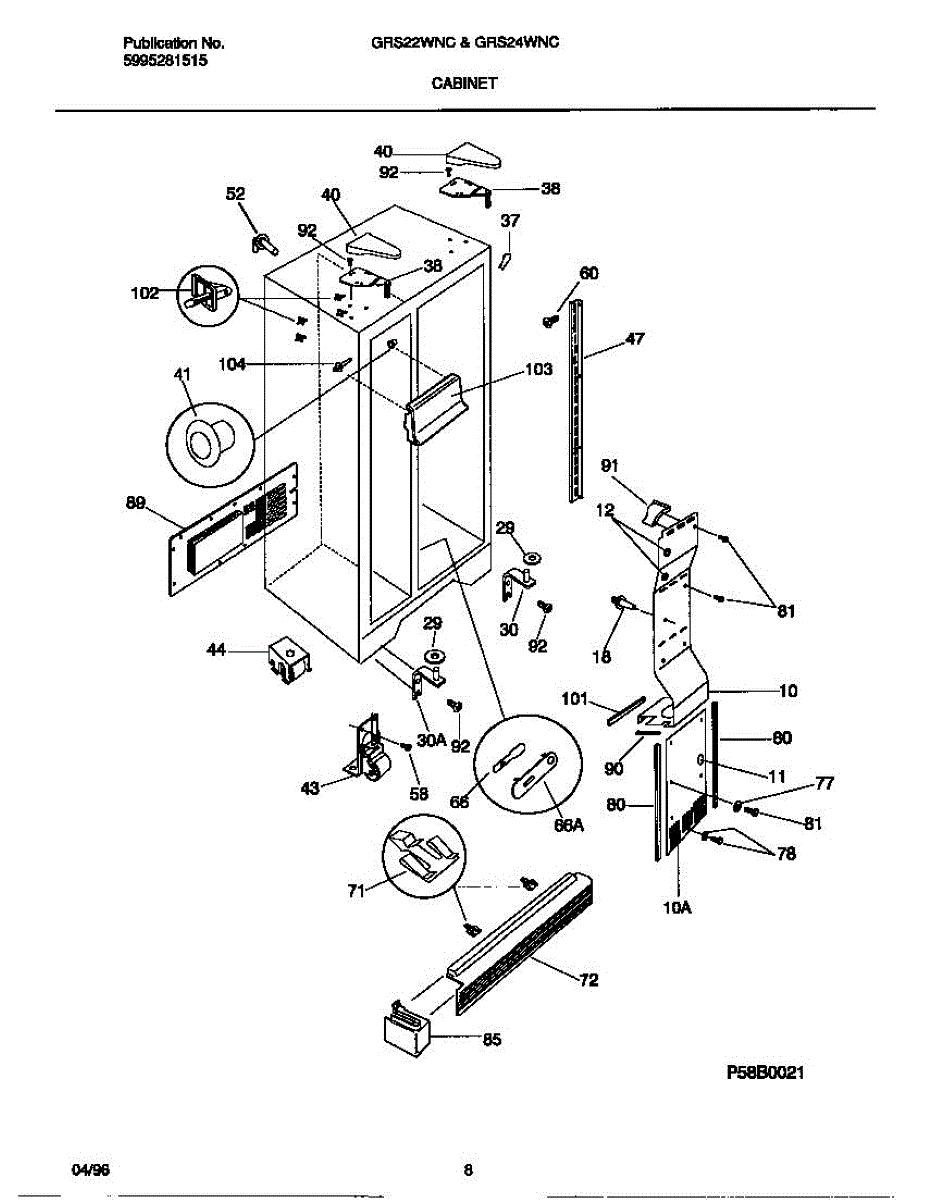

Parts for Frigidaire GRS24WNCD2: 05 - Cabinet Parts

This air duct cover channels cold air from the evaporator into the refrigerator/freezer compartment to help maintain even temperatures and proper airflow. It replaces damaged or missing duct covers to restore normal air circulation. What it does:

• Directs cooled air from the evaporator into compartments to reduce hot spots and improve cooling consistency
• Helps prevent direct frost buildup on stored items by guiding airflow
• Restores proper airflow when a cracked or broken cover allows air leaks
• Supports proper defrost cycle airflow when installed correctly

• One air duct cover

• Disconnect power before servicing to avoid electrical shock
• Remove shelves and access panels as needed to reach the duct; handle plastic parts gently to avoid cracking
• Snap into place or secure with the factory screws/fasteners—do not force parts that do not align

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

#10 OD, steel

Left

This rubber grommet cushions and seals appliance components to reduce vibration and prevent wear where wiring, rods or panels pass through mounting openings. It helps keep parts aligned and protects against chafing and noise. What it does:

• Cushions and isolates vibration between moving parts and chassis
• Protects wiring, tubes or rods from rubbing and abrasion at mounting holes
• Helps reduce noise caused by contact or metal-on-metal vibration
• Aids in maintaining proper part alignment and secure fit

• Grommet

• Inspect mating hole and surrounding area for debris or sharp edges before installing
• Fit the grommet into the mounting hole so the flange seats evenly on both sides
• Replace any damaged or excessively worn grommets to restore protection
• Disconnect power and follow appliance safety procedures before attempting service

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.

Specs: 5/16 - 24 x 7/8 with a hex head

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This coil cover seal replaces the worn foam gasket that seals the evaporator coil cover to the cabinet, helping direct airflow and reduce frost buildup for more consistent cooling performance. What it does:

• Seals the evaporator/coil cover to prevent air leaks around the coil
• Helps reduce frost and ice buildup on the evaporator assembly
• Restores proper airflow for more consistent refrigerator/freezer temperatures
• Can reduce cycling noise caused by loose or damaged seals

• Disconnect power to the appliance before starting work to avoid electrical shock.
• Remove the evaporator/coil cover; replace the old seal with the new gasket, ensuring full contact along the mating surface.
• Trim or align the seal as needed for a snug fit; use appropriate adhesive only if specified.
• If heavy frost or ice is present, fully defrost and dry the area before installing the new seal.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

No. 10 grounding
