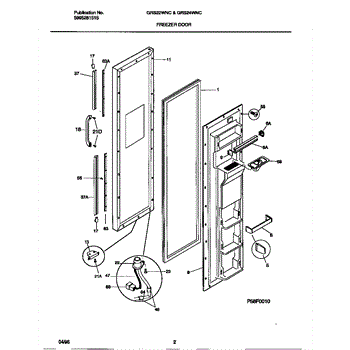

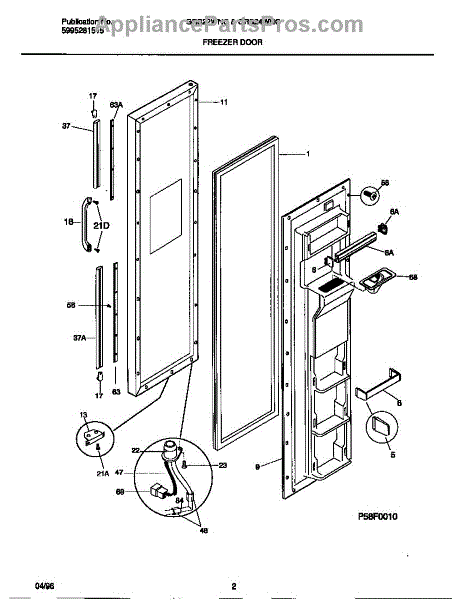

Parts for Frigidaire GRS24WNCD2: 02 - Freezer Door Parts

The Door Shelf Support is an OEM part for Frigidaire refrigerators, designed to hold and support the shelves on the inside of the refrigerator door. This part ensures that door shelves are securely mounted, providing stable storage for bottles, condiments, and other items.

Symptoms of a failing Door Shelf Support include:

• Shelves becoming loose or sagging
• Difficulty in keeping items securely on the door shelves
• Cracks or breaks in the support

Causes of a bad Door Shelf Support can range from normal wear and tear, to accidental damage, such as overloading the door shelves with too much weight or impact from moving items in and out. Over time, the stress of weight and use can lead to the supports becoming damaged.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Door Shelf Support is an OEM part for Frigidaire refrigerators. This part holds and secures the door shelf in place, providing support for the items stored on the shelf.

Causes of a bad door shelf support can include regular wear and tear, overloading the shelves, or physical damage from impacts.

Symptoms of a bad door shelf support include:

• Shelves not staying in place or becoming loose
• Cracks or breaks in the support material
• Difficulty in securing the shelf to the door
• The shelf tilting or falling off the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Door Shelf Support is an OEM part for Frigidaire refrigerators. This part supports the door shelf, providing a sturdy base to hold various items such as bottles, jars, and condiments securely in place on the refrigerator door.

Common causes of a bad door shelf support include regular wear and tear, overloading the shelf with heavy items, or accidental damage.

Symptoms of a bad door shelf support include:

• The door shelf sagging or tilting
• Items falling off the shelf
• The shelf not staying securely in place
• Visible cracks or breakage in the support

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Specs: 10 - 16 x 3/4 phillips truss head

Specs: 7/16 x 20

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This connector door harness links the cabinet wiring to the refrigerator door, restoring electrical connections for door-mounted components. Use this harness to replace a damaged or corroded door connector and regain reliable electrical contact. What it does:

• Provides the sealed electrical connection between the cabinet wiring and the door harness
• Restores power and signal to door-mounted parts such as switches, lights, and dispenser controls when the original connector fails
• Prevents intermittent or lost connections caused by worn, damaged, or corroded terminals
• Maintains proper connector alignment and strain relief for the door wiring

• One connector door harness

• Always disconnect power to the appliance before beginning any repair
• Installation typically requires removing the door panel or inner liner to access the connector
• Inspect mating terminals and wiring for damage; replace or repair any frayed wires before reconnecting
• Ensure connectors are fully seated and secured; test door functions after reassembly

Note: This is a 1/4" x 1/4" compression elbow fitting without the nuts. See part# 4932JA3009A which is a 1/4" by 1/4" John Guess quick connector elbow.

#10 OD, steel

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.
