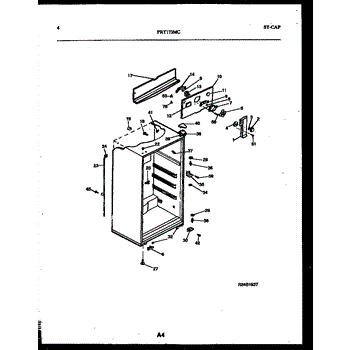

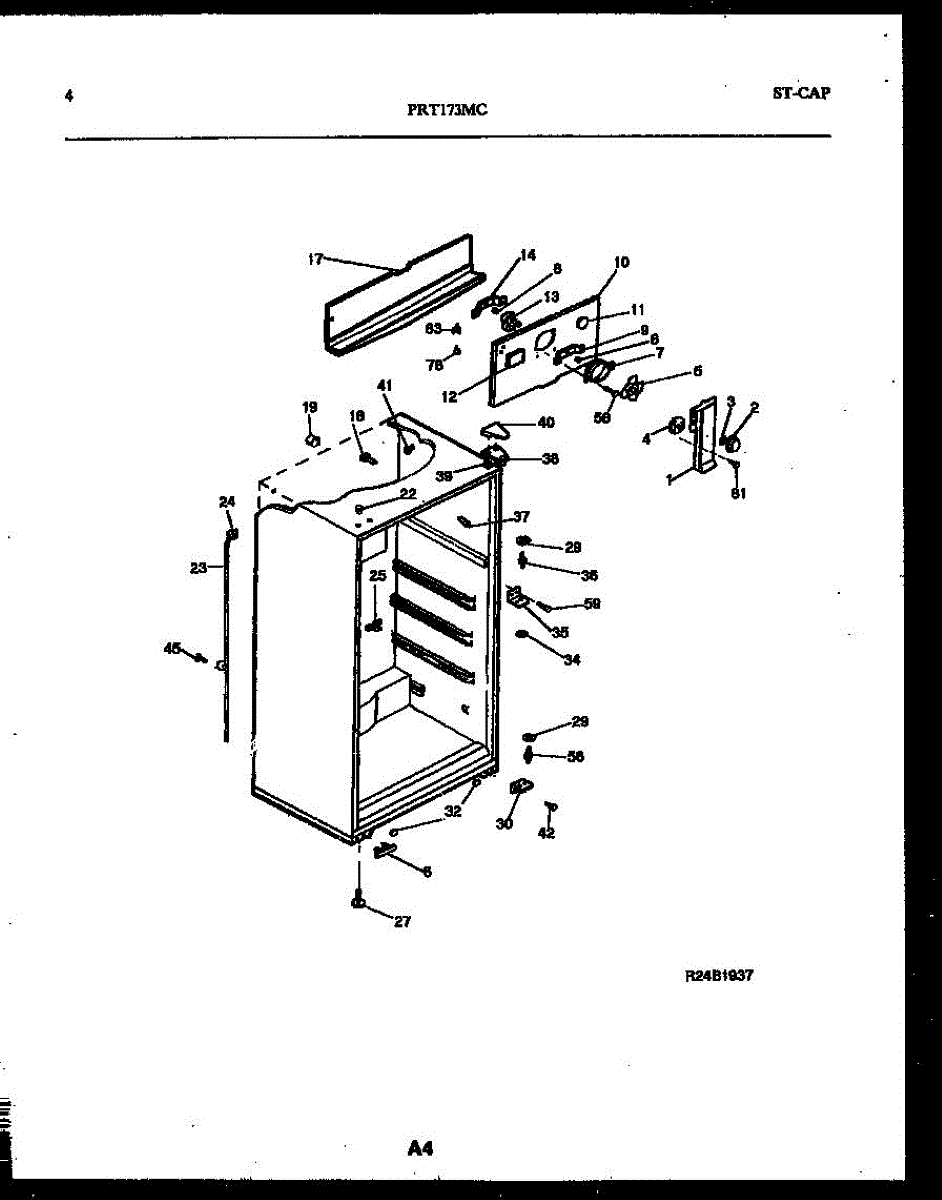

Parts for Frigidaire PRT173MCH2: 03 - Cabinet Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

The Evaporator Motor is an OEM part for Frigidaire refrigerators. This component powers the evaporator fan, which circulates cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures for proper food storage. Compatible fan blade is part number AP2152058

Causes of a bad evaporator motor can include electrical issues, worn-out bearings, or obstruction by debris. A malfunctioning evaporator motor can lead to improper cooling and temperature fluctuations within the refrigerator.

Symptoms of a bad evaporator motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises such as grinding or squealing from the freezer compartment
• Frost buildup on the evaporator coils
• The refrigerator running continuously without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
