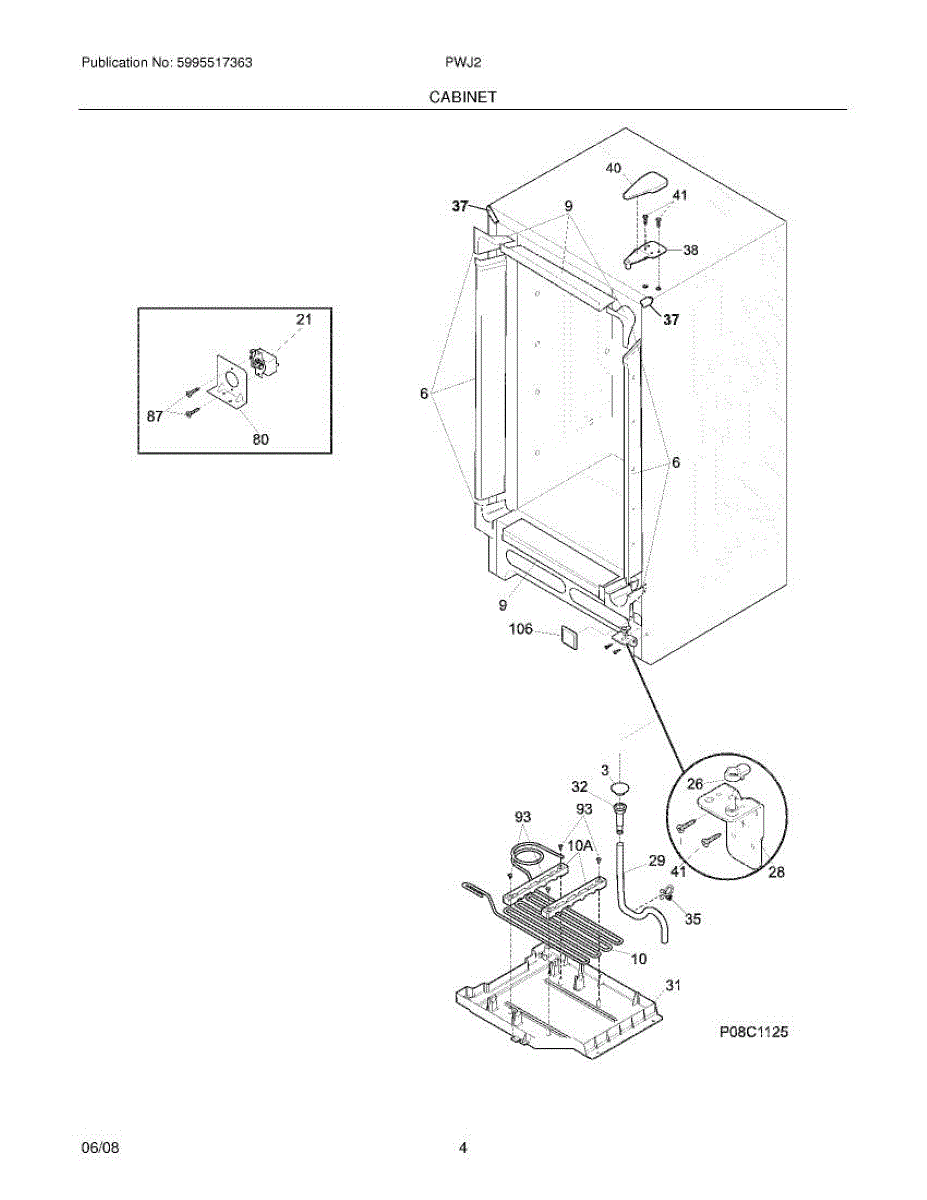

Parts for Frigidaire PWJ2: 05 - Cabinet Parts

Screen - drain keeps the drain path clear by trapping lint and small debris before it reaches the pump or drain hose, helping reduce clogs and improve drainage. Simple replacement restores proper water flow and drain performance. What it does:

• Traps lint, hair and small debris to help prevent clogs in the drain path
• Helps maintain consistent water drainage and pump operation
• Replace if you notice slow draining, standing water, or visible debris at the drain opening
• Sits in the appliance's drain assembly to protect downstream components

• Disconnect power to the appliance before servicing; turn off the water supply if the model requires it
• Access the drain area per your model's service instructions (remove access panel or wash tub components as needed)
• Inspect surrounding seals and hoses for damage and clean mating surfaces before installing the new screen

This bottom hinge replaces the lower door pivot on compatible Frigidaire refrigerators to restore proper door alignment and smooth opening. It provides a secure pivot point to help maintain an even close and consistent seal. What it does:

• Supports and pivots the lower edge of the refrigerator door for smooth opening and closing.
• Helps maintain correct door alignment so the gasket seals evenly.
• Common replacement for doors that sag, bind, or do not close evenly.
• Works with the factory mounting hardware and hinge locations on compatible models.

• Disconnect power and remove food and loose items from the door before starting.
• Always support the door while removing or installing the hinge to prevent injury or damage.
• Use appropriate hand tools and avoid overtightening fasteners; check door alignment after installation.
• Refer to your model's service manual or official parts diagram for model-specific steps and torque specs.

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This drain pan collects and channels defrost water from the evaporator to the refrigerator's drain system, preventing water buildup and keeping the cabinet dry. It restores normal drainage and helps avoid interior leaks and ice buildup. What it does:

• Catches defrost melt and funnels condensate to the drain line
• Prevents water pooling under or inside the refrigerator cabinet
• Helps reduce ice formation around the evaporator area when drainage is restored
• Limits odors caused by trapped standing water

• One drain pan

• Disconnect power before starting and remove food from affected compartments
• Remove access panels to reach the evaporator area; some models require partial disassembly
• Clear any clogged drain lines and verify pan is seated and aligned before reassembly

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

This corner cabinet trim replaces a damaged or missing corner finish piece on the appliance cabinet, restoring a clean edge and helping the door and adjacent panels fit correctly. It provides a cosmetically complete appearance. What it does:

• Covers and protects the cabinet corner for a finished look
• Helps maintain proper alignment and spacing at the cabinet corner
• Commonly replaced when cracked, chipped, broken, or missing
• Restores cosmetic appearance and helps prevent exposed sharp edges

• One corner cabinet trim piece

• Turn off and unplug the appliance before accessing trim or removing panels
• Trim may secure with clips, screws, or snap-fit tabs—inspect fasteners and retainers before removal
• Handle edges carefully; use appropriate tools to avoid scratching adjacent surfaces

This upper door hinge supports the refrigerator/freezer door at the top pivot, keeping it aligned so the gasket seals and the door opens smoothly. Replacing a worn hinge helps restore proper door swing and reliable closing.

• Supports and pivots the door at the top hinge point
• Maintains door alignment for an even, consistent gasket seal
• Helps prevent door sagging, rubbing, or binding
• Worn hinge symptoms include misalignment, squeaks, poor sealing, or the door popping open

• Disconnect power; remove items from the door.
• Support the door to prevent dropping; remove hinge cover and mounting screws.
• Lift the door off the lower hinge, transfer any spacers/shims, and install the new upper hinge.
• Reinstall and align the door; tighten hardware and verify gasket contact all around.

Specs: Hex head ,1/4-20 x 5/8

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
