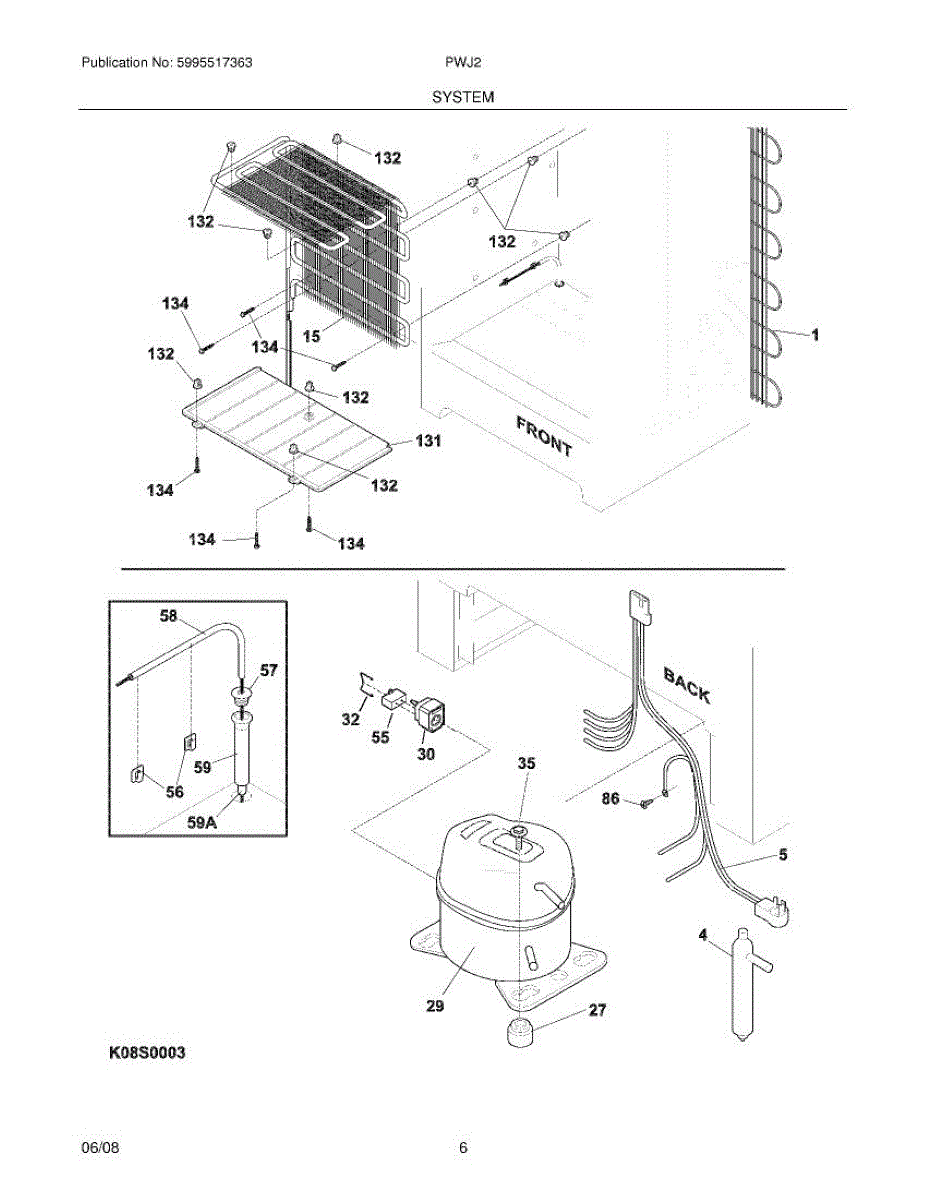

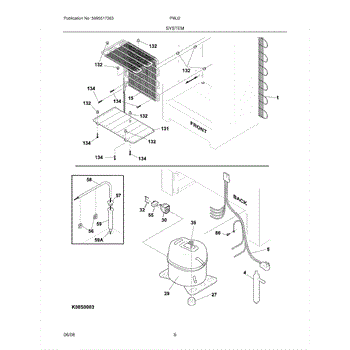

Parts for Frigidaire PWJ2: 07 - System Parts

Includes service line.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

Made for use with refrigerators by several major manufacturers, this is a full compressor kit. It is an internal part that is tasked with moving refrigerant throughout the appliance. It also works by adding pressure to part of the circuit to heat up the refrigerant. This creates a high pressure, hot gas that is moved to the compressor to be cooled and used to keep the appliance at the appropriate temperature. If the compressor is damaged or broken, it can cause the refrigerator to start making loud noises. The compressor may turn on and off more frequently than expected, created overheating and improper cooling, and create clicking noises. If the compressor kit is damaged, it should be replaced. Turn off the circuit breaker or unplug the refrigerator. Pull out the refrigerator and take off the access plate. Let it cool down before the compressor is removed. Use the contents of the kit to replace the part before reassembling and turning the power back on.This is a genuine OEM replacement part that can be used with Frigidaire, Kenmore, Gibson, Westinghouse, Tappan, Crosley, Kelvinator, Universal, and Electrolux freezers and refrigerators. It is sold as an individual part.

This electronic controller board manages key refrigeration functions and defrost routines so your appliance maintains proper temperatures. Replacing a failed board can restore automatic operation when cooling becomes erratic or frost buildup starts affecting performance.

• Governs programmed cooling and defrost cycles to help prevent frost accumulation and temperature swings
• Sends power to components per the control program, enabling fans, compressor, and heaters to run at the right time
• Typical failure signs: heavy frost on the evaporator, warm or no-cool conditions, nonstop running or short cycling, unresponsive controls
• May show visible damage such as burnt spots or a burnt odor on the board

• Disconnect power before servicing; use ESD protection and handle the board by the edges
• Access location varies by model; photograph wiring and move connectors one at a time to the new board
• Mount securely and ensure all harnesses are fully seated; avoid pinching wires during reassembly
• If frost was present, fully defrost the evaporator after installation and allow temperatures to stabilize after restoring power

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch
