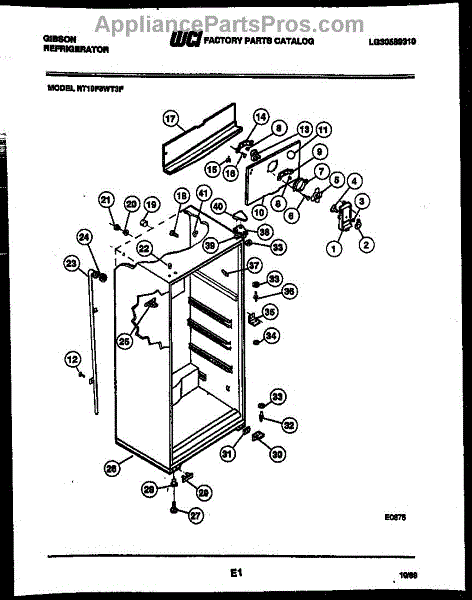

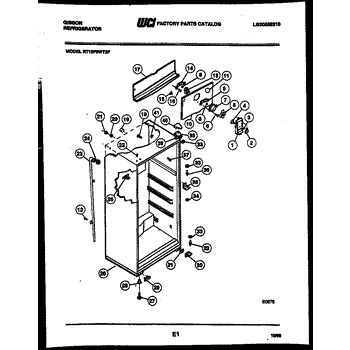

Parts for Frigidaire RT19F8WT3F: 03 - Cabinet Parts

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This is a replacement round control knob that restores accurate grip and easy control of a range or oven surface control. It provides a direct fit for the matching shaft so you can set heat and settings with confidence. What it does:

• Replaces a damaged, worn or missing control knob to restore manual control
• Provides a secure grip for turning temperature and function shafts
• Helps stop slipping, misalignment, or inaccurate dial settings
• Compatible with the matching splined control shaft for straightforward operation

• Remove power to the appliance before servicing to prevent injury
• Pull the old knob straight off the control shaft; press the new knob onto the splined shaft until fully seated
• No special tools usually required; use a soft cloth to protect surrounding surfaces during installation
• If the knob does not fit or seat fully, stop and verify shaft type and part number

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

This part has been discontinued by the manufacturer and is no longer available.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Evaporator Motor is an OEM part for Frigidaire refrigerators. This component powers the evaporator fan, which circulates cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures for proper food storage. Compatible fan blade is part number AP2152058

Causes of a bad evaporator motor can include electrical issues, worn-out bearings, or obstruction by debris. A malfunctioning evaporator motor can lead to improper cooling and temperature fluctuations within the refrigerator.

Symptoms of a bad evaporator motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises such as grinding or squealing from the freezer compartment
• Frost buildup on the evaporator coils
• The refrigerator running continuously without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Sold individually.

This lower hinge plug is a small plastic cover that snaps into the refrigerator's lower door hinge to protect hinge hardware and restore a finished look. It keeps the hinge area neat and helps prevent dirt buildup and snags. What it does:

• Covers and protects exposed lower hinge hardware from dust and debris
• Restores the refrigerator's original finished appearance after a missing or damaged cover
• Helps reduce the chance of clothing or items catching on the hinge area
• Can make inspection of hinge hardware easier and safer by providing a defined cover

• If you must move the door, support it to prevent tipping or injury; consider a second person for large doors
• Inspect hinge screws and mounting points before installing the plug; tighten hardware if needed
• No special tools required for most installations; press the plug into the hinge opening until it snaps in place

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

This lower hinge pin secures the refrigerator door to the cabinet, allowing the door to pivot smoothly and stay aligned. Replaces a worn or damaged hinge pin to restore proper door movement and closing. What it does:

• Acts as the pivot point for the refrigerator door, supporting door weight and rotation
• Helps keep the door aligned to prevent sagging, sticking, or uneven gaps
• Commonly replaced when the pin is bent, worn, or causing noisy/rough door movement
• Works with the lower hinge assembly to maintain a proper door seal and operation

• Installation requires removing the lower hinge or door; follow your model's service instructions
• Support the door while removing/installing hinge hardware to prevent injury or damage
• Use appropriate hand tools; avoid forcing parts or misaligning the hinge pin
• If any hinge housing or mounting hardware is damaged, replace those parts as well for safe operation

This cabinet corner trim restores the finished edge where two cabinet panels meet, covering exposed corners and improving the appliance's appearance. It's a direct-replacement trim piece that helps keep panels aligned and protected from chips. What it does

• Covers and protects exposed cabinet corners from chips, dings and wear
• Hides gaps where cabinet panels meet for a neater appearance
• Helps secure and align adjacent cabinet or console panels
• Useful when original trim is cracked, broken, bent or missing

• Remove any adjacent panels or screws that block access before installing the trim
• Align trim with cabinet edge and press or fasten per the original attachment method
• Use only the OEM replacement part to ensure proper fit; do not force or bend the trim
• Disconnect power before removing panels

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

This rubber grommet cushions and seals appliance components to reduce vibration and prevent wear where wiring, rods or panels pass through mounting openings. It helps keep parts aligned and protects against chafing and noise. What it does:

• Cushions and isolates vibration between moving parts and chassis
• Protects wiring, tubes or rods from rubbing and abrasion at mounting holes
• Helps reduce noise caused by contact or metal-on-metal vibration
• Aids in maintaining proper part alignment and secure fit

• Grommet

• Inspect mating hole and surrounding area for debris or sharp edges before installing
• Fit the grommet into the mounting hole so the flange seats evenly on both sides
• Replace any damaged or excessively worn grommets to restore protection
• Disconnect power and follow appliance safety procedures before attempting service

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.
