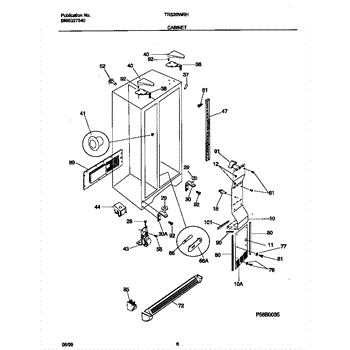

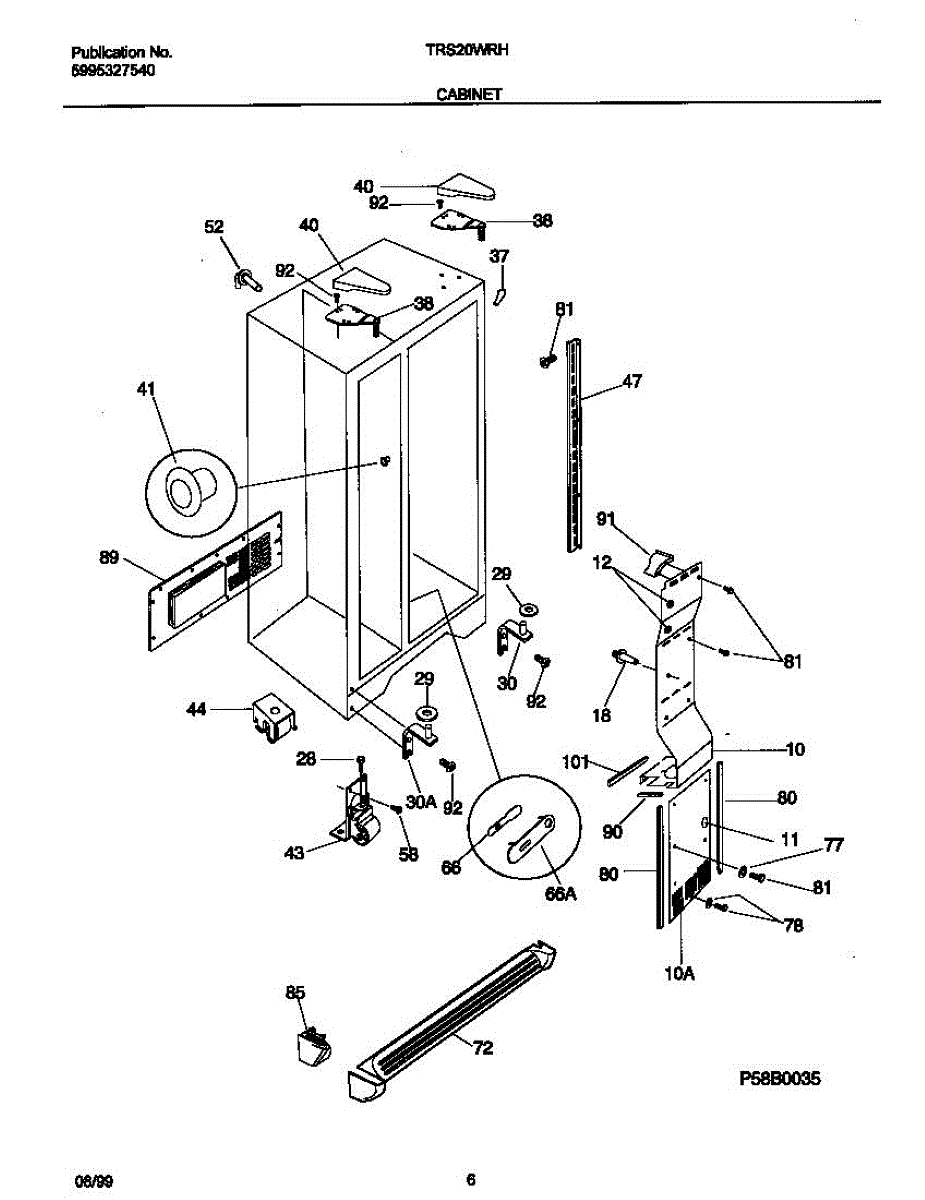

Parts for Frigidaire TRS20WRHD3: 04 - Cabinet Parts

Covers the factory test opening on your refrigerator cabinet or liner. Replace if missing, cracked, or damaged to restore a finished look and seal.

Support bracket for refrigerator air duct cover. Secures and stabilizes the duct cover assembly. Replace if broken, cracked, or missing to restore proper fit.

Hex head bolt that secures the adjustment roller assembly to your refrigerator. Replace if stripped, missing, or damaged to restore proper leveling.

Left

Almond-colored cover for the upper hinge assembly on your refrigerator. Replaces cracked, discolored, or missing hinge covers to restore a clean look.

Rubber grommet cushions and seals freezer components, reducing vibration and preventing wear where wiring or rods pass through. Replace if cracked or worn.

Rear roller assembly for refrigerators. Mounts under the back of the unit to allow smooth rolling and positioning. Replace if cracked, worn, or broken.

Mounting channel for refrigerator side shelves. Installs on the interior wall to support adjustable shelves. Replace if cracked, broken, or missing.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Seals evaporator coil cover to prevent air leaks and frost buildup. Replace when worn or damaged to restore efficient cooling. Confirm fit with model.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

#10 OD, steel

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Refrigerator foam tape seals gaps and reduces vibration. Replace if worn, compressed, or causing air leaks. Verify fit with your model number.

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Pan head mounting screw for refrigerator rails. Replace missing, stripped, or damaged screws during shelf or rail installation or repair work.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Plastic cap that covers and protects your refrigerator's water inlet valve connection. Replace if cracked, broken, or missing to prevent leaks and debris.

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Refrigerator foam tape seals gaps and reduces vibration. Replace if worn, compressed, or causing air leaks. Verify fit with your model number.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Color: Black

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Replacement water line tube for refrigerators. Connects water supply to dispenser or ice maker. Replace if cracked, kinked, leaking, or damaged.

#10 OD, steel

Hex head screw for securing panels and components in freezers, refrigerators, washers, and dryers. Replace if missing, stripped, or corroded.

Secures cantilever shelves to prevent shifting or slipping. Replace if cracked, broken, or missing to restore stable shelf support. Confirm fit with model.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Nylon washer for the evaporator fan motor shaft in refrigerators. Replace if worn, cracked, or missing to ensure proper fan alignment and operation.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.
