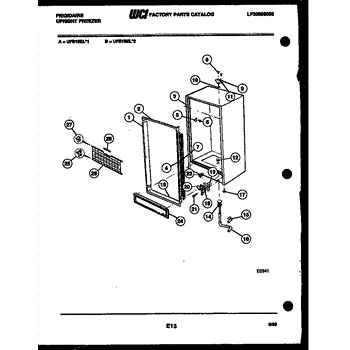

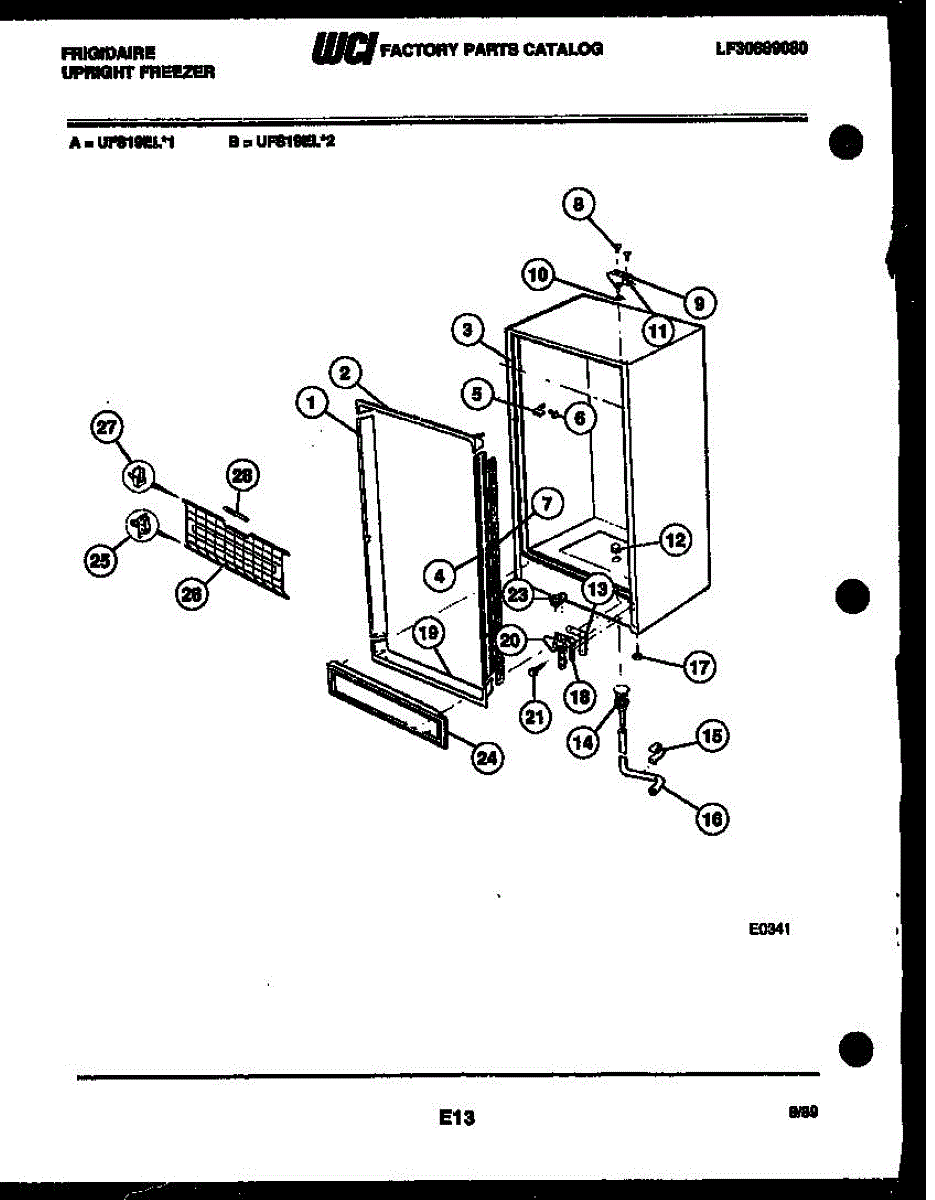

Parts for Frigidaire UFS19EL2: 03 - Cabinet Parts

This flat washer is a small hardware spacer that helps distribute fastener load and protect mating surfaces for appliance assemblies. It provides a stable, flush bearing surface to keep screws and bolts seated securely. What it does:

• Distributes clamping force from screws or bolts to reduce surface damage
• Helps maintain even, secure connections and prevents pull-through
• Acts as a spacer to ensure proper clearance and alignment of parts
• Can reduce vibration-related loosening when used with the correct fastener

• Disconnect power and water to the appliance before servicing
• Match washer size and thickness to the original part for proper fit
• Place washer between fastener head and mating surface; avoid overtightening
• If missing corrosion or wear is present on fasteners, replace the fastener and washer together

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

Sold individually.

This part has been discontinued by the manufacturer and is no longer available.

This flat washer is a small hardware spacer that helps distribute fastener load and protect mating surfaces for appliance assemblies. It provides a stable, flush bearing surface to keep screws and bolts seated securely. What it does:

• Distributes clamping force from screws or bolts to reduce surface damage
• Helps maintain even, secure connections and prevents pull-through
• Acts as a spacer to ensure proper clearance and alignment of parts
• Can reduce vibration-related loosening when used with the correct fastener

• Disconnect power and water to the appliance before servicing
• Match washer size and thickness to the original part for proper fit
• Place washer between fastener head and mating surface; avoid overtightening
• If missing corrosion or wear is present on fasteners, replace the fastener and washer together

This top support (left) is a molded mounting bracket that secures the refrigerator cabinet or inner liner at the cabinet's upper-left corner to restore proper alignment and stable fit of the top section. It replaces a cracked, broken or missing upper-left support. What it does:

• Provides a secure mounting point for the refrigerator upper cabinet/liner to prevent sagging at the top left corner
• Restores correct alignment for doors and trim that may bind or gap due to a failed support
• Reduces vibration or noise caused by a loose/compromised upper corner connection
• Helps maintain a tight seal and proper operation by supporting structural components

• Designed to install in the refrigerator upper-left cabinet/liner; follow OEM disassembly steps
• Inspect surrounding clips/screws and replace any damaged fasteners
• Always unplug the appliance or disconnect power before servicing
