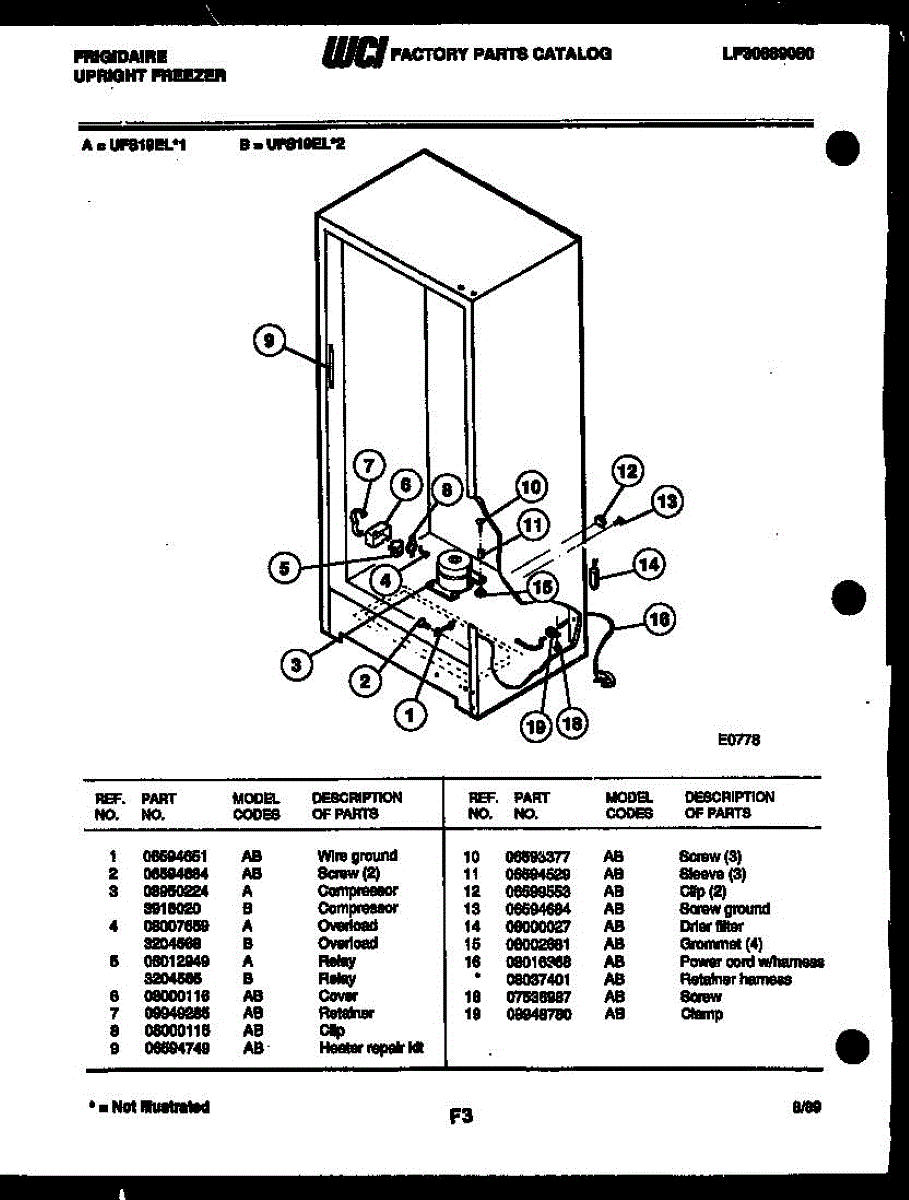

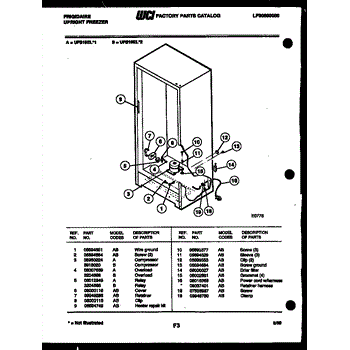

Parts for Frigidaire UFS19EL2: 05 - System Parts

This is a compressor used in several types of home appliances. The compressor is designed to take cold gas in the appliance and place it under pressure so the gas raises in temperature. It is then moved through the refrigerator system to ensure the unit stays cold throughout the appliance. This part can become damaged or malfunction, which may cause the motor to stop running, make the motor noisier, or cause the motor to never stop running.If this happens, the compressor will need to be replaced. A basic set of tools will be needed. A pair of work gloves can also be useful. First, locate the compressor as it may be in various locations depending on the appliance model. Unplug the appliance before removing the compressor. Install the new compressor using the original bolts and nuts before turning the power back on and resuming normal use.This part is sold on an individual basis. The compressor is made to be used with refrigerators, ranges, stoves, ovens, air conditioners, and freezers created by Gibson, Frigidaire, Kelvinator, Montgomery Wards, Westinghouse, Tappan, JCPenney, Universal, and Kenmore. It is an authentic OEM replacement part directly sourced from the manufacturer.

This compressor overload is a thermal/protective device that helps prevent compressor damage by cutting power when the motor overheats or draws excessive current. It restores normal operation once conditions return to safe levels. What it does:

• Protects the refrigerator compressor from overheating and electrical overloads
• Works with the compressor start relay to help the motor start and run properly
• Common symptom linkage: replaces a failed overload when the compressor hums but won't start
• Stops compressor cycling or prevents repeated trips that cause cooling loss

• One compressor overload (single piece as shown)

• Disconnect all power before replacing to avoid shock or injury
• Handle terminals carefully and reconnect matching terminal positions
• Replace only with the same part number or equivalent
• If compressor still won't start after replacing the overload, check the start relay and compressor condition.

The Starter is an OEM replacement part for Frigidaire refrigerators. This component is crucial for initiating the compressor, which is responsible for cooling the refrigerator. The starter works by providing the necessary electrical power to get the compressor running, ensuring that the refrigerator maintains the correct temperature.

Causes of a bad starter can include electrical malfunctions, wear and tear over time, or damage from power surges. A faulty starter can prevent the compressor from starting, leading to cooling issues.

Symptoms of a bad Starter include:

• The refrigerator not cooling properly
• The compressor not running or frequently cycling on and off
• Unusual clicking or buzzing noises from the compressor area
• The refrigerator being warmer than usual or food spoiling quickly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Includes service line.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose
