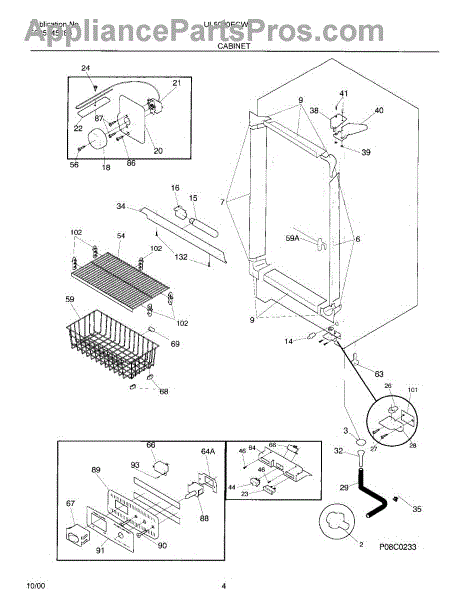

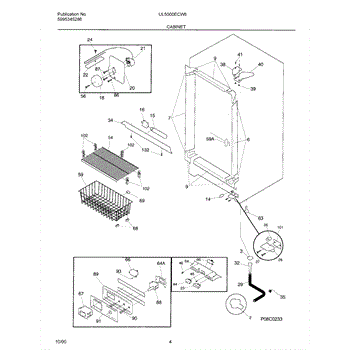

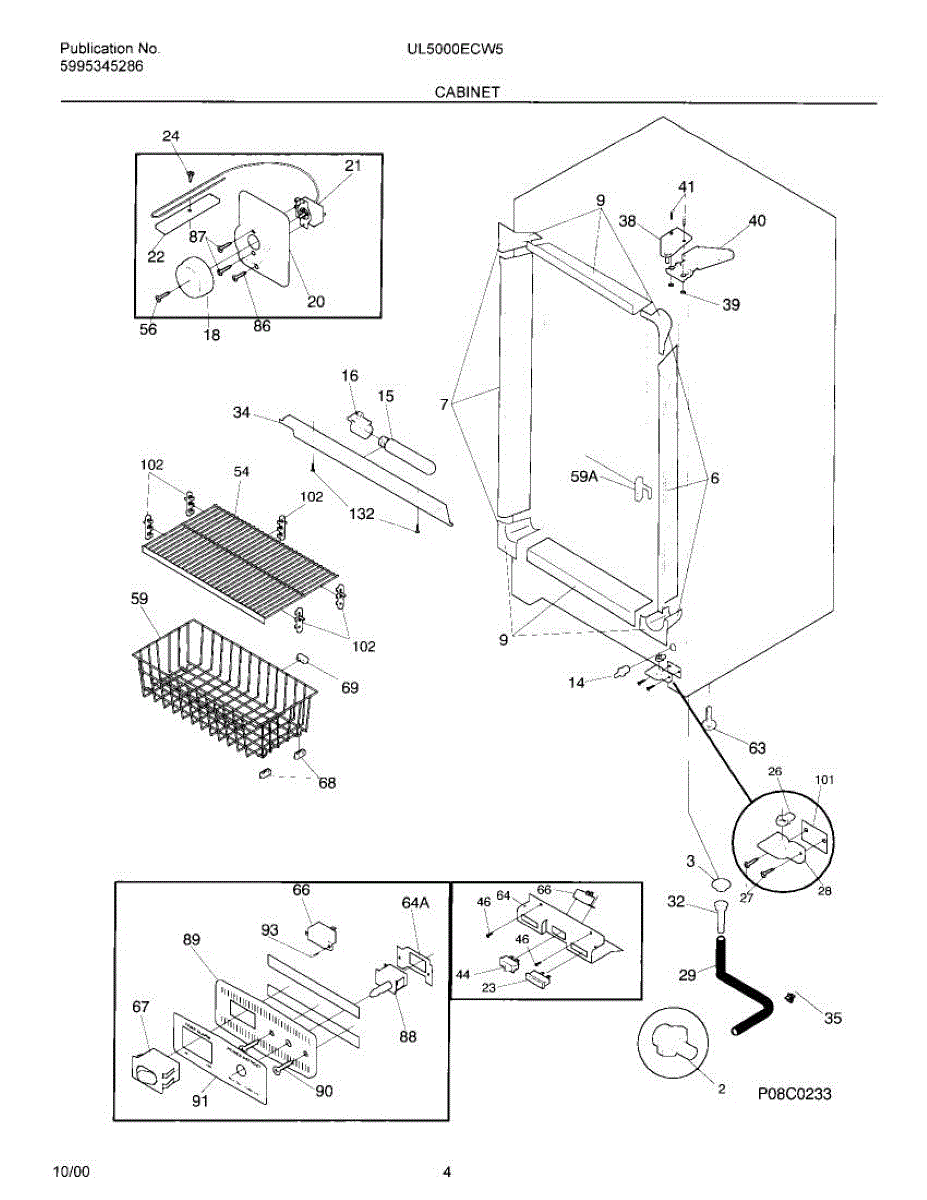

Parts for Frigidaire UL5000ECW5: 05 - Cabinet Parts

A removable cap that covers the freezer's defrost drain hole, typically located at the bottom rear of the freezer compartment. Replace when water pools in the freezer, the cap is missing, or ice blocks the drainage system.

This kit provides structural support and sealing for freezer compartments, including corner reinforcements to maintain proper door alignment. Replace it if you notice air leaks around the freezer door, frost buildup, or if the door doesn't close properly.

This door-activated light switch controls the interior lamp in your refrigerator or freezer. Replace it to restore dependable on/off lighting when the door opens and closes and prevent a light that stays on and warms the compartment.

• Activates the interior light when the door opens and switches it off when closed
• Helps resolve no interior light, light staying on, or a broken/stuck switch plunger
• Restores reliable visibility inside the compartment
• Direct replacement for the original switch connection

• Disconnect power before servicing
• Release the switch from the liner and gently pull it out
• Transfer wires to the new switch one at a time to maintain correct connections
• Seat the switch flush; restore power and verify the light turns off when the door closes

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Genuine freezer cabinet screw that secures trim pieces and internal panels. Replace worn, missing, or stripped fasteners to restore proper fit.

Drain hose that channels wastewater from your freezer to the household drain. Replace if cracked, clogged, or leaking to restore proper drainage.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

This mounting bracket secures the refrigerator/freezer alarm assembly, keeping the alarm in the correct position so alerts are audible and components stay stable. A simple replacement that helps restore reliable alarm operation. What it does

• Holds the alarm module or buzzer assembly in place inside the appliance chassis
• Prevents vibration or movement that can mute or misalign the alarm
• Commonly replaced when alarm is loose, rattling, or not properly secured
• Works with the alarm/buzzer housing to ensure audible temperature or door alerts

• Mounting bracket for alarm assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; keep fasteners removed from the appliance
• Match the bracket orientation to the alarm housing and secure all mounting screws snugly—do not overtighten

Replacement slide for freezer wire baskets. Attaches to basket bottom for smooth gliding along tracks. Replace when broken, cracked, or missing to restore alignment.

Authentic freezer basket bumper that attaches to baskets to prevent sliding inside the freezer. Replace if broken, cracked, or missing to keep baskets stable.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This part has been discontinued by the manufacturer and is no longer available.
