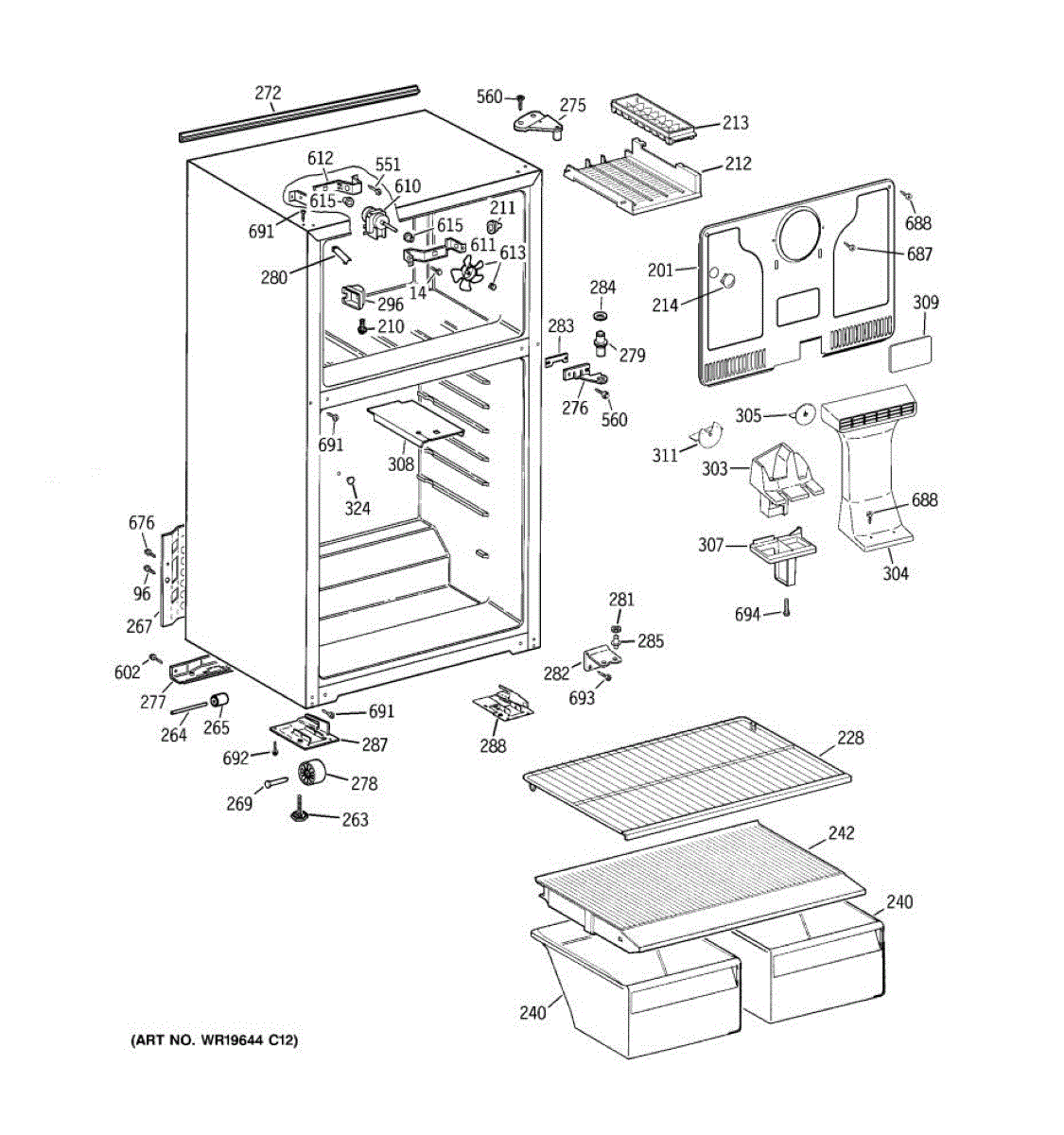

Parts for Ge GTE16BBSKRWW: 02 - Cabinet Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Shelf is an OEM part for GE refrigerators. It provides a stable and durable surface for storing food and other items within the refrigerator. The shelf is designed to fit seamlessly into the refrigerator's interior, maximizing space and organization. It measures approximately 25 inches wide by 14 inches deep.

Over time, the shelf can become damaged due to heavy loads, accidental impacts, or regular wear and tear. If you notice cracks, chips, or instability in the shelf, it is important to replace it to ensure safe and effective storage.

Symptoms of a bad shelf include:

• Cracks or visible damage
• Difficulty in keeping items stable
• Reduced storage capacity due to instability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan is an OEM part for GE refrigerators. It is designed to store fresh produce, helping to maintain optimal humidity levels to keep fruits and vegetables fresh for longer periods. The pan fits seamlessly into the refrigerator, providing a convenient and accessible storage solution for your produce.

Causes of a bad vegetable pan can include cracks or breaks due to impact or mishandling, warping from prolonged use, or damage from heavy or improperly stored items. Over time, regular use can also lead to wear and tear, affecting its functionality.

Symptoms of a bad Vegetable Pan include:

• Cracks or visible damage to the pan
• Difficulty sliding the pan in and out
• Produce not staying fresh as long
• Pan not fitting properly in its designated space

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. It is a crucial component designed to fit snugly over the vegetable or crisper drawers, helping to maintain the optimal humidity and temperature levels within these compartments. This white cover measures approximately 24 inches wide by 19 inches deep.

Causes of a bad vegetable pan cover can include physical damage, such as cracks or warping, or wear and tear over time, which can affect the cover's ability to seal properly.

Symptoms of a bad vegetable pan cover include:

• Wilted or dried-out produce in the crisper drawers
• Condensation buildup within the drawers or on the cover itself
• Difficulty in properly sealing or closing the cover
• Visible signs of damage or wear on the cover

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This rear mobility wheel replaces a worn or broken wheel on the back of your refrigerator, restoring smooth rolling movement so you can pull the unit out safely for cleaning, servicing, or leveling without dragging or floor damage.

• Mounts to the rear base/roller bracket to support and roll the refrigerator for positioning or service
• Replace if the wheel is cracked, missing, flat-spotted, or seized
• Common symptoms: unit is hard to move, scrapes the floor, sits unevenly, or makes grinding noises when moved
• Helps maintain proper cabinet support during movement

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a helper—appliances are heavy and can tip
• Access the rear base area; remove the old wheel and install the new wheel using the existing hardware
• After re-positioning, re-level the refrigerator per the owner's manual

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This white corner cap is a small plastic cover that snaps onto a refrigerator door corner to protect the hinge area, conceal fasteners, and restore a finished appearance. Simple replacement for visible damage or missing trim. What it does:

• Covers and protects the door corner and hinge area from dirt and damage
• Hides exposed screws and hardware for a cleaner look
• Prevents sharp edges or gaps that can catch clothing or fingers
• Commonly replaced when cracked, broken, or missing after impact or wear

• Snaps into place
• No wiring; no disassembly beyond removing the damaged cap in most installs
• Disconnect power only if you must remove nearby electrical components; otherwise work with the appliance idle
• Handle plastic parts carefully to avoid cracking; do not force into place

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Door Spacer positions the refrigerator door components with the correct clearance so the door swings smoothly and sits level. Replacing a worn spacer can restore alignment, reduce rubbing or squeaks, and help maintain proper gasket contact.

• Maintains proper spacing and alignment of the door assembly
• Helps the door open and close smoothly, reducing friction and wear
• Can address issues like door rubbing, squeaking, or not sitting level
• Supports consistent gasket contact for a reliable seal

• Unplug the refrigerator before servicing
• Support the door and remove the necessary hardware to access the spacer location
• Note spacer orientation; install the new spacer and reassemble
• Adjust hinges if needed

The Bottom Hinge Pin is an OEM replacement part for GE refrigerators. It facilitates the smooth and secure opening and closing of the refrigerator door. Positioned at the base of the door, this hinge pin ensures that the door is firmly attached, allowing it to swing open or closed with ease.

Causes of a bad Bottom Hinge Pin include wear and tear from regular use, corrosion, or mechanical damage that affects its structural integrity.

Symptoms of a bad Bottom Hinge Pin include:

• The refrigerator door not aligning properly
• Difficulty in opening or closing the door
• Unusual noises during the door’s operation
• Visible wear or damage to the hinge pin

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ice maker receptacle cover protects the electrical connector and housing where the ice maker plugs into the refrigerator, helping keep the connection clean and secure for reliable ice maker operation. What it does

• Covers and shields the ice maker electrical receptacle from debris and moisture
• Helps prevent accidental contact with the connector for improved safety
• Maintains proper alignment and fit of the ice maker plug to reduce connector strain
• Commonly replaced when cracked, broken, or missing, which can expose the receptacle

• Disconnect power to the appliance before inspecting or replacing the cover
• Usually snaps or screws into place; remove adjacent trim or ice bin for access if needed
• Handle gently to avoid damaging surrounding plastic housings or the connector
• If electrical damage or corrosion is present, inspect wiring and connector; replace damaged parts before reassembly

The Foam Duct is an OEM replacment part for GE refrigerators. It is an insulating conduit located within the fresh food compartment that helps direct chilled air circulation from evaporator coils throughout interior shelves and bins. The foam duct plays an important temperature regulation role by strategically venting cool air where needed.

Causes can involve cracks in rigid duct walls, compressed insulation, or obstructions within the airflow pathway restricting proper circulation

Symptoms of a defective duct include:

• Inconsistent temperatures with warmer/colder spots within the fridge
• Frost or ice buildup on interior surfaces away from coils
• Higher energy bills from the compressor overworking to maintain temps

Compatible with some Hotpoint, RCA, and some Kenmore models.

This is the evaporator fan blade that mounts on the freezer fan motor. It circulates cold air across the evaporator coils and throughout the compartments to maintain even, reliable temperatures. What it does:

• Moves air across the evaporator to cool and circulate airflow between freezer and fresh food sections
• Helps prevent warm spots and temperature swings inside the refrigerator
• Common failure signs include rattling/scraping noises from the freezer area
• Needed if the fan isn't moving air, the blade is cracked/loose, or cooling is weak despite the compressor running

• 1 evaporator fan blade

• Disconnect power before servicing; wear cut-resistant gloves around sharp sheet metal
• Remove shelves/drawers and the rear freezer panel to access the fan
• Pull the old blade straight off the motor shaft; transfer any clip/retainer if present
• Press the new blade fully onto the shaft; it spins freely without contacting the shroud before reassembly

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

Size: 10-16 ab.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

This 8-18 x 3/4 machine screw fastens appliance panels and small brackets to keep components secure and stable. It's a direct-fit replacement screw used where the original hardware has stripped, broken, or gone missing. What it does:

• Secures access panels, mounting brackets, and small assemblies
• Restores proper alignment and reduces rattling or vibration
• Replaces stripped or damaged fasteners
• Keeps wiring and components held in place for safe operation

• Unplug the appliance or disconnect power before starting work
• Use the correct driver and size to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts
• Replace corroded or damaged fasteners for best results
