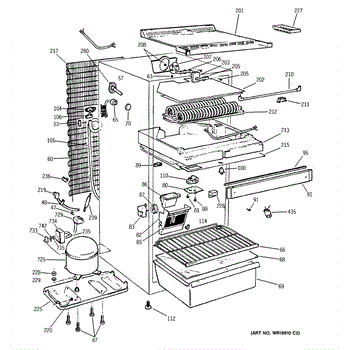

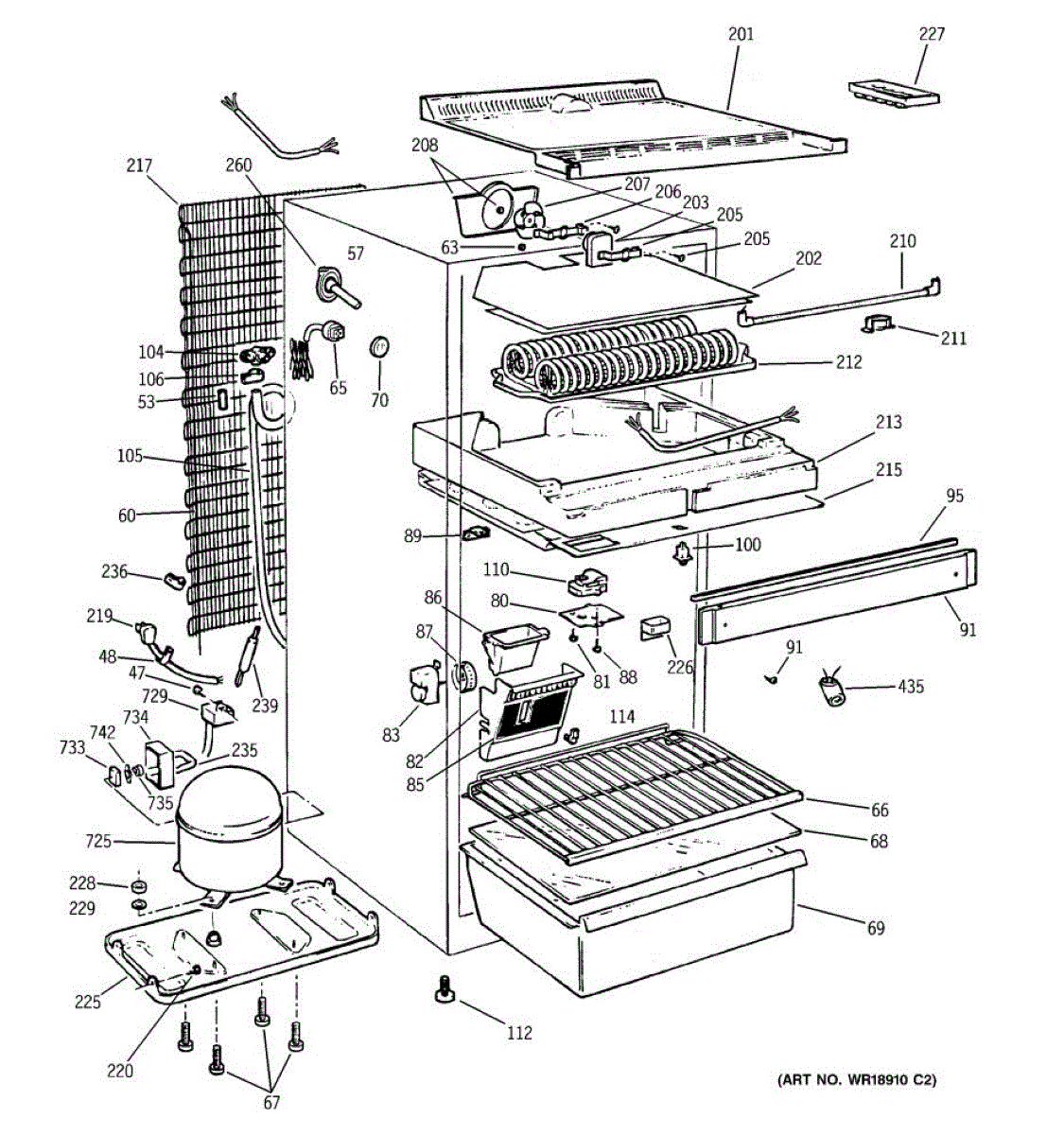

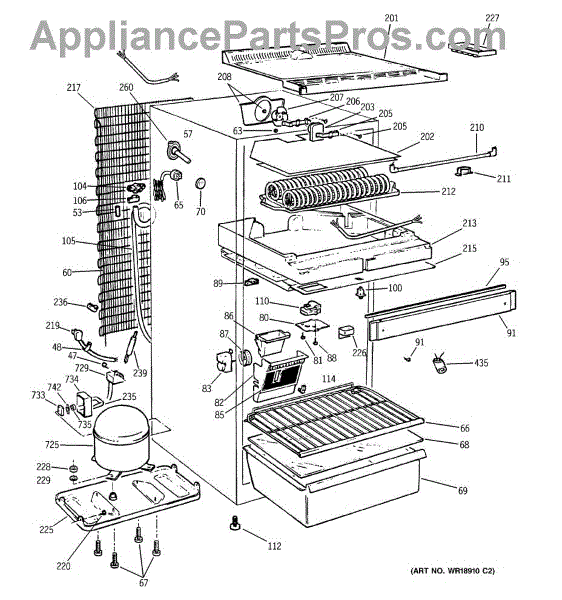

Parts for Ge GTS12BBMARCC: 02 - Cabinet Parts

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

This ice maker receptacle cover protects the electrical connector and housing where the ice maker plugs into the refrigerator, helping keep the connection clean and secure for reliable ice maker operation. What it does

• Covers and shields the ice maker electrical receptacle from debris and moisture
• Helps prevent accidental contact with the connector for improved safety
• Maintains proper alignment and fit of the ice maker plug to reduce connector strain
• Commonly replaced when cracked, broken, or missing, which can expose the receptacle

• Disconnect power to the appliance before inspecting or replacing the cover
• Usually snaps or screws into place; remove adjacent trim or ice bin for access if needed
• Handle gently to avoid damaging surrounding plastic housings or the connector
• If electrical damage or corrosion is present, inspect wiring and connector; replace damaged parts before reassembly

This control housing is the outer console shell that holds and protects the refrigerator's user controls and display, restoring a secure mounting surface and clean appearance for the front control area. What it does:

• Supports and secures the control board, buttons and display assembly in the front console
• Protects internal electronics from light impacts and everyday wear
• Helps keep buttons and touchpads aligned for reliable operation
• Replaces cracked, warped or damaged console housing that lets controls sit loose or exposed

• One control housing

• Disconnect power to the appliance before beginning any repair
• Remove surrounding trim and electronics carefully to avoid damaging wiring or the control board
• Handle the housing gently to avoid cracking plastic; align clips and screw holes before fastening

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

This is a replacement mounting screw used to secure panels, trim, and small components on compatible appliances. It provides a simple, durable fix when original fasteners are missing or damaged. What it does:

• Secures control panels, trim pieces, brackets, or other appliance components
• Restores proper fit and prevents rattling or loose parts
• Replaces missing, stripped, or corroded screws to maintain safe operation
• Works wherever the OEM-specified screw is required by the manufacturer

• One replacement screw

• Turn off and unplug the appliance before beginning any repair
• Use the correct screwdriver or driver bit to avoid striping the head
• Keep small parts away from children and pets; store extras in a safe place

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This evaporator cover protects the refrigerator's evaporator area and channels airflow for proper cold distribution. It helps shield coils and components from damage and limits ice buildup that can impair performance. What it does:

• Protects evaporator coils, fan and defrost components from accidental contact and debris
• Directs airflow over the evaporator for more even cooling in the compartment
• Helps reduce localized frost buildup that can indicate airflow or defrost issues
• Commonly replaced when cracked, broken mounting tabs prevent secure fit, or airflow is disrupted

• One evaporator cover

• Disconnect power before beginning any repair to avoid shock or compressor damage
• Remove interior panels and shelves as needed to access the evaporator area; retain fasteners for reassembly
• Inspect mounting tabs and surrounding seals; replace damaged clips or retainers for a secure fit
• Handle gently to avoid cracking the plastic

This evaporator fan motor kit powers the fan that moves air across the evaporator coils and through your refrigerator. Replacing a worn motor restores proper airflow to help maintain stable temperatures and dependable cooling performance.

• Drives the evaporator circulation fan to distribute chilled air through the compartments
• Helps keep temperatures even and reduces hot or cold spots
• Common failure signs: no fan sound or airflow, intermittent operation, or loud squealing/grinding
• Indicated by frost or ice buildup on the rear panel around the evaporator

• Disconnect power to the refrigerator before servicing
• Access the evaporator compartment; remove the rear cover and carefully clear any ice as needed
• Transfer the existing fan blade and any reusable mounting parts as required by your model; note fan orientation
• Make secure electrical connections, then reassemble and restore power

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

This defrost thermostat is a clip-on, bi-metal safety control for the freezer evaporator. Replacing a failed thermostat restores proper automatic defrost, helping prevent heavy frost buildup and temperature swings in the fresh food section.

• Monitors evaporator coil temperature and opens the defrost circuit when the coil warms to the cutoff point
• Helps prevent excessive frost that restricts airflow and reduces cooling performance
• Common failure symptoms: persistent frost on the evaporator, poor cooling/warm fridge, unit running longer than normal, or defrost heater staying on too long
• Mounts on the evaporator tubing; closes when cold and opens as the coil warms during defrost

• Disconnect power before servicing; use proper PPE
• Access the evaporator by removing the rear freezer panel
• Note wiring positions; make secure, insulated connections per appliance service guidelines
• Clip the thermostat firmly to the same coil location/orientation for accurate sensing and reassemble panels before restoring power

This rubber tube grommet cushions and protects a refrigerator water/tubing passage, helping prevent chafing and leaks where a tube passes through the cabinet. It's a simple replacement to restore a secure seal. What it does

• Cushions tubing where it passes through sheet metal or a cabinet panel to reduce wear.
• Helps keep the water/tube routing sealed and stable to minimize rubbing and potential leaks.
• Commonly replaced when the original grommet is cracked, split, or missing.
• Small, inexpensive part that prevents damage to lines and reduces vibration noise.

• One rubber tube grommet.

• Disconnect power and shut off the water supply before beginning any repair.
• Access location varies by model; remove panels or liners as needed to reach the tube/pass-through.
• Replace the damaged grommet by sliding the tube through the grommet and seating the grommet into the cabinet hole.
• Inspect tubing for damage while installing; replace tubing if abrasion or leaks are found.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This overload is a compressor protector that helps stop the compressor from overheating or drawing excessive current, keeping the refrigeration system safer and helping prevent premature compressor failure. What it does:

• Opens the compressor circuit when the compressor overheats or draws excessive current
• Helps protect the compressor motor from damage caused by electrical overloads or locked-rotor conditions
• Works with the start device/relay to allow normal compressor starting and operation
• Commonly used when a compressor fails to start, hums, or trips the circuit

• One overload protector

• Disconnect power to the appliance before attempting service
• Handle the part carefully and avoid bending terminals; secure it per OEM mounting method
• If compressor or start components show damage, inspect/replace those parts as well; consider service for sealed-system diagnosis

This part has been discontinued by the manufacturer and is no longer available.
