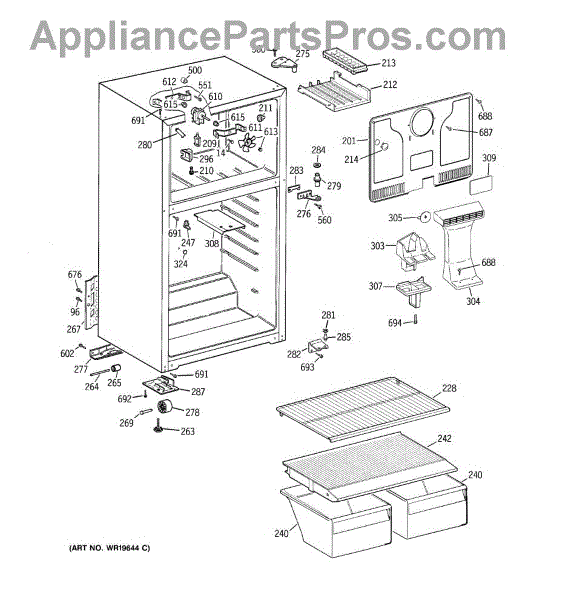

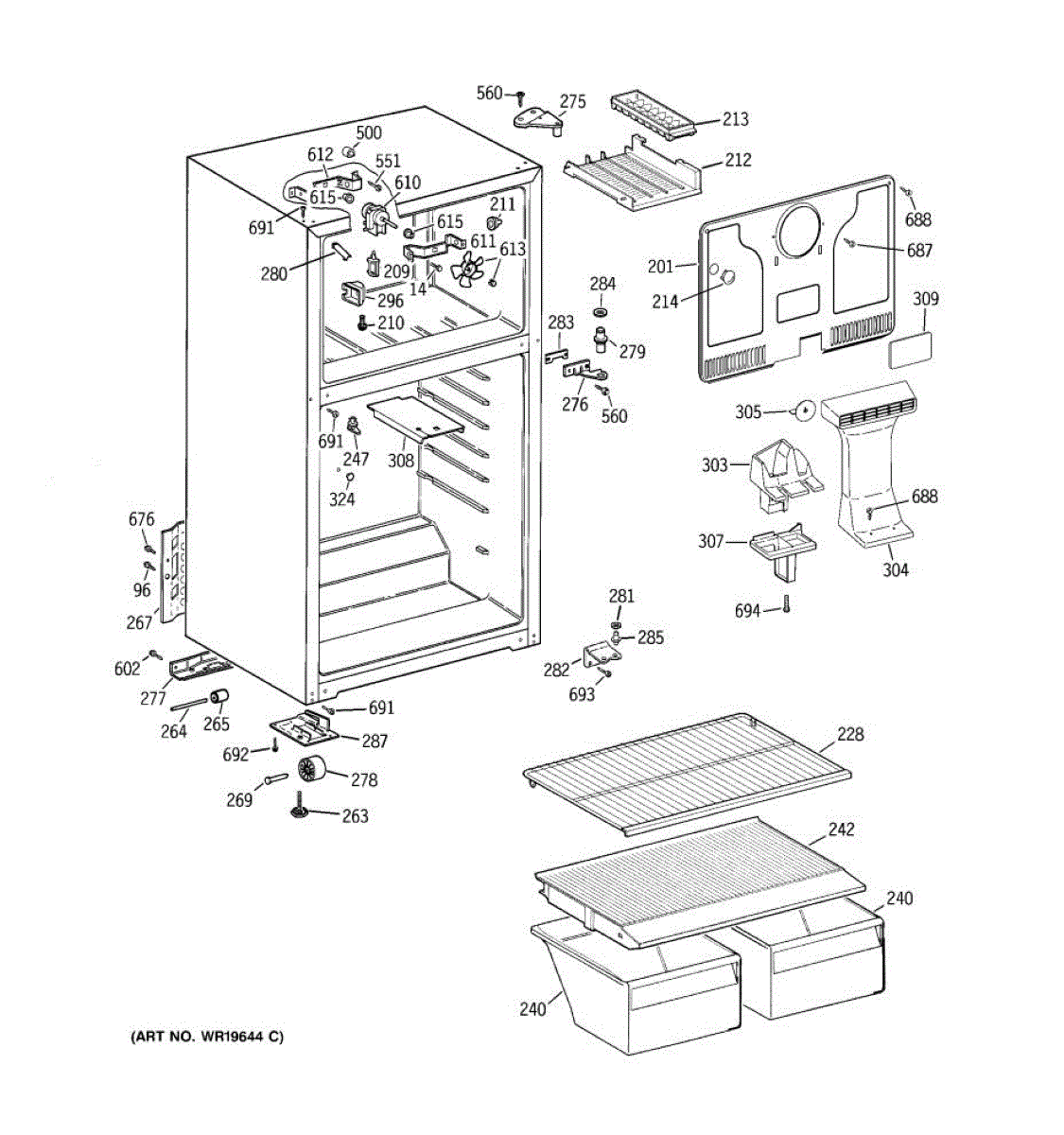

Parts for Ge GTS16BBSELBB: 02 - Cabinet Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Shelf is an OEM part for GE refrigerators. It provides a stable and durable surface for storing food and other items within the refrigerator. The shelf is designed to fit seamlessly into the refrigerator's interior, maximizing space and organization. It measures approximately 25 inches wide by 14 inches deep.

Over time, the shelf can become damaged due to heavy loads, accidental impacts, or regular wear and tear. If you notice cracks, chips, or instability in the shelf, it is important to replace it to ensure safe and effective storage.

Symptoms of a bad shelf include:

• Cracks or visible damage
• Difficulty in keeping items stable
• Reduced storage capacity due to instability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan is an OEM part for GE refrigerators. It is designed to store fresh produce, helping to maintain optimal humidity levels to keep fruits and vegetables fresh for longer periods. The pan fits seamlessly into the refrigerator, providing a convenient and accessible storage solution for your produce.

Causes of a bad vegetable pan can include cracks or breaks due to impact or mishandling, warping from prolonged use, or damage from heavy or improperly stored items. Over time, regular use can also lead to wear and tear, affecting its functionality.

Symptoms of a bad Vegetable Pan include:

• Cracks or visible damage to the pan
• Difficulty sliding the pan in and out
• Produce not staying fresh as long
• Pan not fitting properly in its designated space

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. It is a crucial component designed to fit snugly over the vegetable or crisper drawers, helping to maintain the optimal humidity and temperature levels within these compartments. This white cover measures approximately 24 inches wide by 19 inches deep.

Causes of a bad vegetable pan cover can include physical damage, such as cracks or warping, or wear and tear over time, which can affect the cover's ability to seal properly.

Symptoms of a bad vegetable pan cover include:

• Wilted or dried-out produce in the crisper drawers
• Condensation buildup within the drawers or on the cover itself
• Difficulty in properly sealing or closing the cover
• Visible signs of damage or wear on the cover

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This rear mobility wheel replaces a worn or broken wheel on the back of your refrigerator, restoring smooth rolling movement so you can pull the unit out safely for cleaning, servicing, or leveling without dragging or floor damage.

• Mounts to the rear base/roller bracket to support and roll the refrigerator for positioning or service
• Replace if the wheel is cracked, missing, flat-spotted, or seized
• Common symptoms: unit is hard to move, scrapes the floor, sits unevenly, or makes grinding noises when moved
• Helps maintain proper cabinet support during movement

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a helper—appliances are heavy and can tip
• Access the rear base area; remove the old wheel and install the new wheel using the existing hardware
• After re-positioning, re-level the refrigerator per the owner's manual

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom door hinge mounts at the lower corner of a refrigerator/freezer door to support and guide smooth opening and secure closing. It restores proper door alignment and helps prevent sagging or uneven gaps. What it does:

• Supports the weight of the door and provides a pivot point for opening and closing
• Keeps the door aligned to maintain an even seal and proper cooling
• Helps stop door sag, dragging, or uneven movement
• Reduces stress on upper hinges and closure mechanisms

• Disconnect power to the appliance before beginning any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; follow manufacturer torque and fastening recommendations

This Door Spacer positions the refrigerator door components with the correct clearance so the door swings smoothly and sits level. Replacing a worn spacer can restore alignment, reduce rubbing or squeaks, and help maintain proper gasket contact.

• Maintains proper spacing and alignment of the door assembly
• Helps the door open and close smoothly, reducing friction and wear
• Can address issues like door rubbing, squeaking, or not sitting level
• Supports consistent gasket contact for a reliable seal

• Unplug the refrigerator before servicing
• Support the door and remove the necessary hardware to access the spacer location
• Note spacer orientation; install the new spacer and reassemble
• Adjust hinges if needed

The Bottom Hinge Pin is an OEM replacement part for GE refrigerators. It facilitates the smooth and secure opening and closing of the refrigerator door. Positioned at the base of the door, this hinge pin ensures that the door is firmly attached, allowing it to swing open or closed with ease.

Causes of a bad Bottom Hinge Pin include wear and tear from regular use, corrosion, or mechanical damage that affects its structural integrity.

Symptoms of a bad Bottom Hinge Pin include:

• The refrigerator door not aligning properly
• Difficulty in opening or closing the door
• Unusual noises during the door’s operation
• Visible wear or damage to the hinge pin

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Foam Duct is an OEM replacment part for GE refrigerators. It is an insulating conduit located within the fresh food compartment that helps direct chilled air circulation from evaporator coils throughout interior shelves and bins. The foam duct plays an important temperature regulation role by strategically venting cool air where needed.

Causes can involve cracks in rigid duct walls, compressed insulation, or obstructions within the airflow pathway restricting proper circulation

Symptoms of a defective duct include:

• Inconsistent temperatures with warmer/colder spots within the fridge
• Frost or ice buildup on interior surfaces away from coils
• Higher energy bills from the compressor overworking to maintain temps

Compatible with some Hotpoint, RCA, and some Kenmore models.

This freezer air duct channels cold air from the evaporator fan through the freezer compartment, helping maintain consistent airflow and temperature. Replacing a cracked or missing duct restores a proper seal and reliable circulation. What it does:

• Directs and contains airflow from the evaporator fan within the freezer
• Helps maintain even cooling and reduces warm-air leaks
• A damaged duct may contribute to weak airflow, frost/ice around the vent, temperature swings, or vibration/rattling
• Restores proper alignment and fit with adjoining air tower/panel components

• 1 freezer air duct

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically from inside the freezer; remove shelves/ice bin and interior air tower or cover as needed
• Save and transfer any screws, clips, gaskets, or insulation from the original part
• Ensure panels and seals seat tightly after installation to prevent air leaks

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. It is a crucial component responsible for circulating air and maintaining proper airflow within the refrigerator compartments.,This evaporator fan motor is designed to power the fan blades that draw air over the evaporator coils.

Symptoms of a faulty Evaporator Fan Motor include:

• Insufficient cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice formation in the freezer compartment
• Loud or unusual noises coming from the fan area
• Complete failure of the fan to operate or turn on

Causes of a bad evaporator fan motor can include normal wear and tear over time, bearing failure, electrical malfunctions, or physical damage from foreign objects or debris.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator fan front bracket is an OEM replacement part for GE refrigerators. Located inside the freezer compartment, this bracket securely mounts and supports the evaporator fan assembly.

Causes of a bad front bracket include breakage from repeated fan motion, cracking from temperature fluctuations over many years, or loosening of mounting points.

Symptoms of a bad evaporator fan front bracket include:

• Abnormal rattling or vibrational noises coming from inside the refrigerator
• Reduced airflow circulation leading to ineffective cooling
• Potential shifting or misalignment of other evaporator components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Rear Bracket is an OEM part for GE refrigerators. It supports and secures the evaporator fan at the rear of the refrigerator, ensuring it operates correctly to circulate air throughout the appliance.

Causes of a bad evaporator fan rear bracket can include physical damage due to impact, wear and tear from prolonged use, or corrosion from exposure to moisture.

Symptoms of a bad evaporator fan rear bracket include:

• Unusual noises coming from the rear of the refrigerator
• Reduced cooling efficiency
• The evaporator fan becoming loose or detached
• Vibrations or rattling noises during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the evaporator fan blade that mounts on the freezer fan motor. It circulates cold air across the evaporator coils and throughout the compartments to maintain even, reliable temperatures. What it does:

• Moves air across the evaporator to cool and circulate airflow between freezer and fresh food sections
• Helps prevent warm spots and temperature swings inside the refrigerator
• Common failure signs include rattling/scraping noises from the freezer area
• Needed if the fan isn't moving air, the blade is cracked/loose, or cooling is weak despite the compressor running

• 1 evaporator fan blade

• Disconnect power before servicing; wear cut-resistant gloves around sharp sheet metal
• Remove shelves/drawers and the rear freezer panel to access the fan
• Pull the old blade straight off the motor shaft; transfer any clip/retainer if present
• Press the new blade fully onto the shaft; it spins freely without contacting the shroud before reassembly

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Size: 10-16 ab.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage
