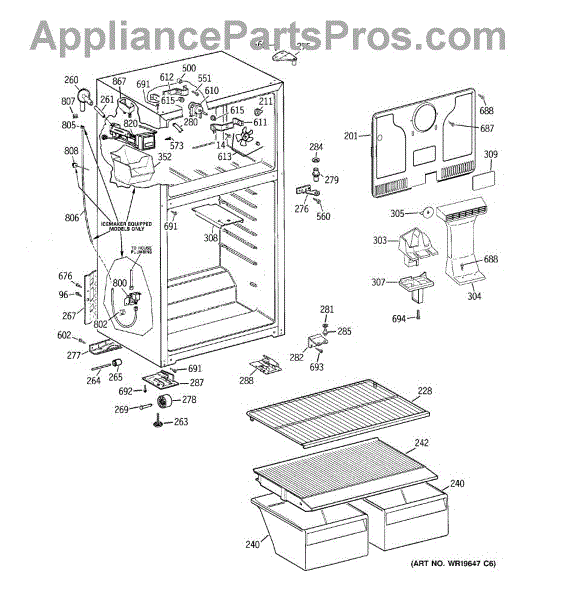

Parts for Ge GTS16BCSBLCC: 02 - Cabinet Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Vegetable Pan is an OEM part for GE refrigerators. It is designed to store fresh produce, helping to maintain optimal humidity levels to keep fruits and vegetables fresh for longer periods. The pan fits seamlessly into the refrigerator, providing a convenient and accessible storage solution for your produce.

Causes of a bad vegetable pan can include cracks or breaks due to impact or mishandling, warping from prolonged use, or damage from heavy or improperly stored items. Over time, regular use can also lead to wear and tear, affecting its functionality.

Symptoms of a bad Vegetable Pan include:

• Cracks or visible damage to the pan
• Difficulty sliding the pan in and out
• Produce not staying fresh as long
• Pan not fitting properly in its designated space

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. It is a crucial component designed to fit snugly over the vegetable or crisper drawers, helping to maintain the optimal humidity and temperature levels within these compartments. This white cover measures approximately 24 inches wide by 19 inches deep.

Causes of a bad vegetable pan cover can include physical damage, such as cracks or warping, or wear and tear over time, which can affect the cover's ability to seal properly.

Symptoms of a bad vegetable pan cover include:

• Wilted or dried-out produce in the crisper drawers
• Condensation buildup within the drawers or on the cover itself
• Difficulty in properly sealing or closing the cover
• Visible signs of damage or wear on the cover

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This rear mobility wheel replaces a worn or broken wheel on the back of your refrigerator, restoring smooth rolling movement so you can pull the unit out safely for cleaning, servicing, or leveling without dragging or floor damage.

• Mounts to the rear base/roller bracket to support and roll the refrigerator for positioning or service
• Replace if the wheel is cracked, missing, flat-spotted, or seized
• Common symptoms: unit is hard to move, scrapes the floor, sits unevenly, or makes grinding noises when moved
• Helps maintain proper cabinet support during movement

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a helper—appliances are heavy and can tip
• Access the rear base area; remove the old wheel and install the new wheel using the existing hardware
• After re-positioning, re-level the refrigerator per the owner's manual

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This outer corner cap replaces a broken or missing plastic trim piece on the appliance door, restoring a finished look and protecting the edge from further damage. Designed as a direct-fit cosmetic/trim component. What it does:

• Covers and protects the appliance door corner from chips, dings, and everyday wear.
• Restores a flush, finished appearance where the original corner trim is cracked or missing.
• Helps prevent moisture and debris from collecting in the corner joint.
• Common symptom: visible cracked, loose, or missing corner trim on the door edge.

• High-level replacement — usually snaps into place or secures with a small screw; remove any old, damaged trim before installing.
• Disconnect power or follow manufacturer safety guidance if working near electrical components.
• Use a non-marring tool to avoid scratching adjacent surfaces when prying out the old cap.
• Warming the new cap slightly can ease installation; do not force parts.

This white corner cap is a small plastic cover that snaps onto a refrigerator door corner to protect the hinge area, conceal fasteners, and restore a finished appearance. Simple replacement for visible damage or missing trim. What it does:

• Covers and protects the door corner and hinge area from dirt and damage
• Hides exposed screws and hardware for a cleaner look
• Prevents sharp edges or gaps that can catch clothing or fingers
• Commonly replaced when cracked, broken, or missing after impact or wear

• Snaps into place
• No wiring; no disassembly beyond removing the damaged cap in most installs
• Disconnect power only if you must remove nearby electrical components; otherwise work with the appliance idle
• Handle plastic parts carefully to avoid cracking; do not force into place

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Door Spacer positions the refrigerator door components with the correct clearance so the door swings smoothly and sits level. Replacing a worn spacer can restore alignment, reduce rubbing or squeaks, and help maintain proper gasket contact.

• Maintains proper spacing and alignment of the door assembly
• Helps the door open and close smoothly, reducing friction and wear
• Can address issues like door rubbing, squeaking, or not sitting level
• Supports consistent gasket contact for a reliable seal

• Unplug the refrigerator before servicing
• Support the door and remove the necessary hardware to access the spacer location
• Note spacer orientation; install the new spacer and reassemble
• Adjust hinges if needed

The Bottom Hinge Pin is an OEM replacement part for GE refrigerators. It facilitates the smooth and secure opening and closing of the refrigerator door. Positioned at the base of the door, this hinge pin ensures that the door is firmly attached, allowing it to swing open or closed with ease.

Causes of a bad Bottom Hinge Pin include wear and tear from regular use, corrosion, or mechanical damage that affects its structural integrity.

Symptoms of a bad Bottom Hinge Pin include:

• The refrigerator door not aligning properly
• Difficulty in opening or closing the door
• Unusual noises during the door’s operation
• Visible wear or damage to the hinge pin

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Foam Duct is an OEM replacment part for GE refrigerators. It is an insulating conduit located within the fresh food compartment that helps direct chilled air circulation from evaporator coils throughout interior shelves and bins. The foam duct plays an important temperature regulation role by strategically venting cool air where needed.

Causes can involve cracks in rigid duct walls, compressed insulation, or obstructions within the airflow pathway restricting proper circulation

Symptoms of a defective duct include:

• Inconsistent temperatures with warmer/colder spots within the fridge
• Frost or ice buildup on interior surfaces away from coils
• Higher energy bills from the compressor overworking to maintain temps

Compatible with some Hotpoint, RCA, and some Kenmore models.

This freezer air duct channels cold air from the evaporator fan through the freezer compartment, helping maintain consistent airflow and temperature. Replacing a cracked or missing duct restores a proper seal and reliable circulation. What it does:

• Directs and contains airflow from the evaporator fan within the freezer
• Helps maintain even cooling and reduces warm-air leaks
• A damaged duct may contribute to weak airflow, frost/ice around the vent, temperature swings, or vibration/rattling
• Restores proper alignment and fit with adjoining air tower/panel components

• 1 freezer air duct

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically from inside the freezer; remove shelves/ice bin and interior air tower or cover as needed
• Save and transfer any screws, clips, gaskets, or insulation from the original part
• Ensure panels and seals seat tightly after installation to prevent air leaks

The Ice Bucket is an OEM replacement part for GE refrigerator-freezers. It collects and stores freshly produced ice within the freezer compartment.  This bucket is made of white plastic and is approximately 13 inches in length and 9 inches wide at the widest point.

Causes of a bad ice bucket can include wear and tear over time, or damage to the bucket or its components due to mishandling or impact. Please note, this is just the ice bucket and does not include the auger or auger motor.

Symptoms of a bad ice bucket include:

• Cracks or breakage in the bucket
• Ice not dispensing properly
• Bucket not fitting securely in its compartment
• Visible damage or wear to the bucket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This screw is a genuine General Electric part, sold individually. This screw can be used as a replacement part for a refrigerator. A screw can suffer damage in the lifespan of a refrigerator. It can also be easily lost or misplaced. Screws are small parts and are usually installed in multiples to ensure components are reliably attached, so one screw loosening or going missing might not necessarily affect the operability of the refrigerator. However, if the components loosen or the screw suffers damage that strips the part, such as punctures or erosion to the metal material from general wear and tear or from a direct impact, the screw should be removed and replaced with this genuine OEM replacement part. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following appliance brands: General Electric, Hotpoint, RCA, and Americana.

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. It is a crucial component responsible for circulating air and maintaining proper airflow within the refrigerator compartments.,This evaporator fan motor is designed to power the fan blades that draw air over the evaporator coils.

Symptoms of a faulty Evaporator Fan Motor include:

• Insufficient cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice formation in the freezer compartment
• Loud or unusual noises coming from the fan area
• Complete failure of the fan to operate or turn on

Causes of a bad evaporator fan motor can include normal wear and tear over time, bearing failure, electrical malfunctions, or physical damage from foreign objects or debris.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator fan front bracket is an OEM replacement part for GE refrigerators. Located inside the freezer compartment, this bracket securely mounts and supports the evaporator fan assembly.

Causes of a bad front bracket include breakage from repeated fan motion, cracking from temperature fluctuations over many years, or loosening of mounting points.

Symptoms of a bad evaporator fan front bracket include:

• Abnormal rattling or vibrational noises coming from inside the refrigerator
• Reduced airflow circulation leading to ineffective cooling
• Potential shifting or misalignment of other evaporator components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Rear Bracket is an OEM part for GE refrigerators. It supports and secures the evaporator fan at the rear of the refrigerator, ensuring it operates correctly to circulate air throughout the appliance.

Causes of a bad evaporator fan rear bracket can include physical damage due to impact, wear and tear from prolonged use, or corrosion from exposure to moisture.

Symptoms of a bad evaporator fan rear bracket include:

• Unusual noises coming from the rear of the refrigerator
• Reduced cooling efficiency
• The evaporator fan becoming loose or detached
• Vibrations or rattling noises during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the evaporator fan blade that mounts on the freezer fan motor. It circulates cold air across the evaporator coils and throughout the compartments to maintain even, reliable temperatures. What it does:

• Moves air across the evaporator to cool and circulate airflow between freezer and fresh food sections
• Helps prevent warm spots and temperature swings inside the refrigerator
• Common failure signs include rattling/scraping noises from the freezer area
• Needed if the fan isn't moving air, the blade is cracked/loose, or cooling is weak despite the compressor running

• 1 evaporator fan blade

• Disconnect power before servicing; wear cut-resistant gloves around sharp sheet metal
• Remove shelves/drawers and the rear freezer panel to access the fan
• Pull the old blade straight off the motor shaft; transfer any clip/retainer if present
• Press the new blade fully onto the shaft; it spins freely without contacting the shroud before reassembly

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Size: 10-16 ab.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

This 8-18 x 3/4 machine screw fastens appliance panels and small brackets to keep components secure and stable. It's a direct-fit replacement screw used where the original hardware has stripped, broken, or gone missing. What it does:

• Secures access panels, mounting brackets, and small assemblies
• Restores proper alignment and reduces rattling or vibration
• Replaces stripped or damaged fasteners
• Keeps wiring and components held in place for safe operation

• Unplug the appliance or disconnect power before starting work
• Use the correct driver and size to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts
• Replace corroded or damaged fasteners for best results

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This U-shaped clip secures trim and components in place on compatible GE appliances, helping keep panels and assemblies aligned for reliable operation. Simple replacement when a broken or missing clip causes loose trim or rattling. What it does:

• Holds trim, panels or small assemblies in position to prevent movement
• Restores secure fit where a worn or broken clip allows gaps or vibration
• Helps eliminate rattling, misaligned doors, or loose internal components
• Works as a direct-fit replacement for the same OEM clip design

• One U-shaped retaining clip

• Turn power off and unplug the appliance before accessing panels or parts
• Remove any trim or screws carefully to reach the clip location; retain fasteners
• Clip typically snaps into place; replace any damaged surrounding hardware

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement clamp secures lines or components inside the refrigerator, keeping them properly routed and stable. Replacing a broken or missing clamp helps reduce vibration and prevents rubbing damage or leaks from loose tubing. What it does:

• Holds tubing or wiring harnesses securely in place inside the refrigerator
• Maintains correct routing and clearance to prevent chafing and wear
• Helps reduce vibration and rattling noises from unsecured lines
• Can help prevent drips or leaks when used to retain water tubing

• 1 clamp

• Unplug the refrigerator and, if working with water lines, shut off the water supply
• Note the original clamp orientation and routing; take a photo before removal
• Install the new clamp in the same location, securing lines without pinching or over-stressing them
• Restore power (and water if applicable) and check that lines are secure; inspect for leaks if used on water tubing

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.
