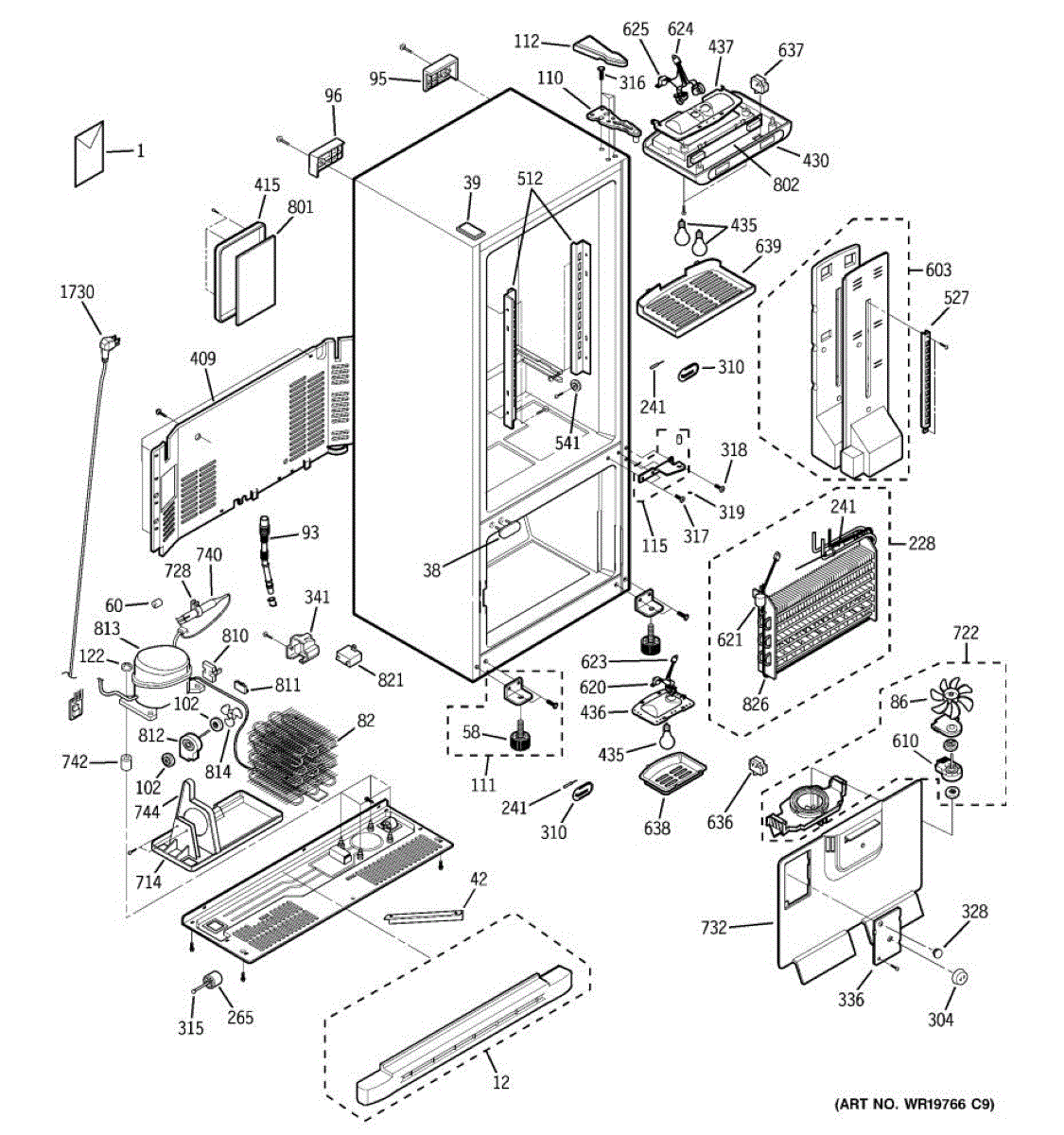

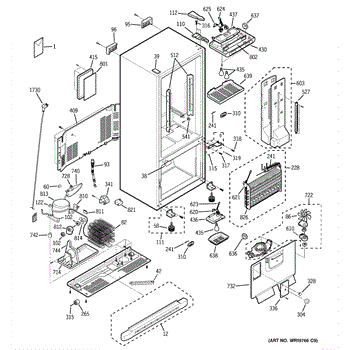

Parts for Ge PDS20MBRBCC: 02 - Cabinet Parts

Lower grille cover assembly for refrigerators. Installs at the base to cover mechanical components. Replace if cracked, broken, or missing.

Lower skirt panel for refrigerator base trim. Replaces cracked, broken, or missing bottom panels. Restores finished appearance at floor level.

This rubber damping bumper cushions and reduces vibration where two appliance components meet, helping doors and panels close more softly and preventing metal-on-metal noise and wear. It's a simple replacement that restores quieter operation. What it does:

• Absorbs shock and vibration between mating parts to reduce noise
• Helps door or panel close smoothly and prevents slamming
• Prevents direct metal-on-metal contact to reduce wear and rattles
• Small, flexible pad designed to sit in a mounting recess or on a bracket

• One rubber damping bumper

• Small part; verify mounting location and orientation before removing the old bumper
• Use basic hand tools as needed; replace only after disconnecting power if working near electrical components
• Inspect surrounding brackets and fasteners for damage and clean mounting area before installing
• If adhesive is present, allow it to cure per manufacturer instructions before normal use

Left cabinet support plate for refrigerators. Mounts inside the cabinet to provide structural support. Replace if cracked, broken, or missing.

Refrigerator door stopper component that cushions and limits door movement. Replace if cracked, broken, or missing to prevent door damage and ensure proper closure.

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

Secures small moving parts and assemblies in refrigerators. Replace if the original pin is bent, broken, or missing to restore proper alignment.

Protective cover cap for refrigerator water supply tube. Replaces cracked, broken, or missing tube covers. Installs on water line connection points.

Main cover cap for refrigerator. Protects internal components and provides finished appearance. Replace if cracked, broken, or missing. Direct fit.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

Refrigerator not cooling but freezer works? A failing evaporator fan motor stops cold air circulation. This assembly restores airflow and temperature.

L175-20F

L140-30F

Fix a refrigerator light that won't turn on with this light socket assembly. Simple DIY repair that restores interior lighting in minutes.

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a refrigerator that won't cool or has temperature control issues with this main control board. Moderately difficult repair, taking 15-45 minutes.

Refrigerator won't start or clicks repeatedly? A faulty PTC relay prevents the compressor motor from starting. This start device restores operation.

Fixes refrigerator clicking noise and compressor not starting. This overload relay protects the compressor from overheating and restores normal operation.

Refrigerator not cooling or running hot? A failed condenser fan motor prevents heat removal from the condenser coils. DIY repair in under 30 minutes.

Refrigerator not cooling or compressor clicking on and off? This compressor kit restores cooling. Requires certified technician with specialty tools.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Supplies electrical power from wall outlet to refrigerator. Replace this cord if cut, frayed, overheated, or damaged to restore safe electrical connection.
