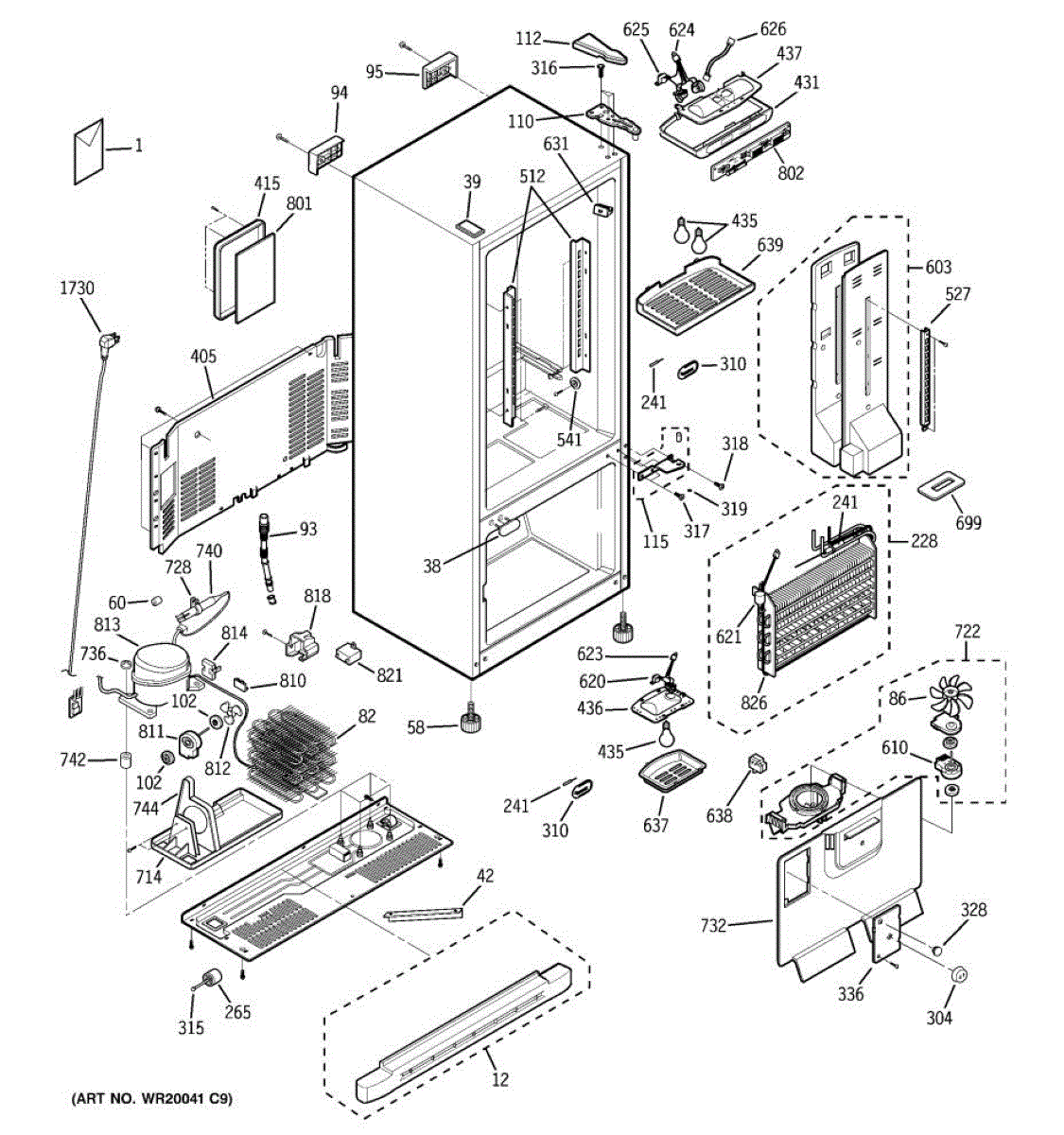

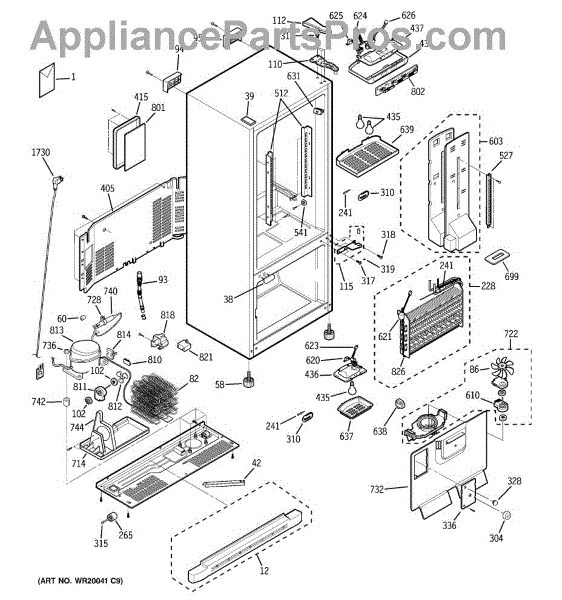

Parts for Ge PDS20MBSBBB: 02 - Cabinet Parts

This right-side cabinet support secures and aligns the appliance cabinet for proper door and panel fit, helping restore stable operation and reduce cabinet movement or gaps. It's a direct-fit replacement designed to reinstall quickly with common tools. What it does:

• Provides structural support for the appliance cabinet on the right side to prevent sagging or misalignment
• Keeps panels and doors properly aligned to stop rubbing, uneven gaps, or poor sealing
• Restores stable mounting points for attached components and hardware
• Helps reduce vibration or movement that can occur when cabinet supports are worn or damaged

• Disconnect power (and water, if applicable) before starting any repair
• Remove outer panels or trim as needed to access the right-side support; keep fasteners organized
• Use basic hand tools; verify orientation and fit before tightening all fasteners
• Replace with OEM-approved parts for secure installation

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor assembly circulates cold air across the evaporator coils to maintain even temperatures and help the refrigerator cool efficiently. Replaces a worn or noisy evaporator fan motor to restore airflow. What it does:

• Moves air over the evaporator coils to support consistent cooling and temperature distribution.
• Helps prevent frost buildup by maintaining airflow across the evaporator.
• Reduces noise or vibration caused by a failing or unbalanced fan motor.
• Supports proper defrost performance by ensuring air circulation during cycles.

• One evaporator fan motor assembly

• Disconnect power to the appliance before inspecting or replacing the fan assembly.
• Replacement may require removing interior panels or the freezer evaporator cover; keep fasteners organized.
• Handle the fan blades carefully to avoid bending; ensure proper blade alignment on the motor shaft.

L175-20F

L140-30F

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Board Asm Main Control is an OEM replacement part for GE refrigerators. It serves as the electronic brain of the appliance, controlling and coordinating all the essential functions and operations of the refrigerator.

Causes of a bad refrigerator main control board can include electrical malfunctions, power surges, or physical damage due to moisture or impact over time.

Symptoms of a bad main control board include:

• The refrigerator not powering on or responding to user inputs
• Inconsistent temperature regulation or cooling performance
• Error codes or fault indicators displayed on the control panel
• Individual components or systems, like the ice maker or defrost cycle, not functioning properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the display/control circuit board for the refrigerator's user interface. It drives the temperature/readout display and processes button inputs so you can adjust settings and dispenser functions from the front panel.

• Manages the front-panel display and keypad signals
• Helps when the display is blank or dim
• Helps when buttons don't respond or settings won't change
• Helps with erratic or incorrect temperature readouts

• Disconnect power to the refrigerator before servicing
• Use proper ESD precautions when handling the board
• Take photos of wire/ribbon connections to ensure correct reassembly
• After installation, restore power and verify display and button operation

This overload relay protects and helps start the refrigerator/freezer compressor by cutting power if the motor overheats or draws excessive current. Replaces a failed relay to restore normal compressor start and protect the compressor from damage. What it does:

• Senses excessive compressor current or heat and interrupts power to prevent motor damage
• Works with the compressor start device to help the compressor start reliably
• Commonly replaces a failed relay when the compressor hums but won't start or the refrigerator is not cooling
• Helps prevent repeated compressor attempts that can trip breakers or overheat wiring

• Disconnect power to the appliance before accessing electrical components
• Handle terminals carefully; ensure correct seating on the compressor motor pins
• Only install parts that match the appliance's service literature and wiring configuration

This condenser fan motor circulates air across the refrigerator condenser to help remove heat and support efficient cooling. Replacing a faulty motor restores proper condenser airflow and can prevent temperature rise and compressor overwork. What it does:

• Spins the condenser fan to draw air across condenser coils, aiding heat dissipation
• Helps the compressor run efficiently by preventing condenser overheating
• Common symptoms of failure: refrigerator or freezer running warm, motor not running, humming, or loud/abnormal fan noise
• Can cause longer run cycles and higher energy use when airflow is restricted or stopped

• Disconnect power to the appliance before starting any repair
• Handle the fan blade and condenser fins carefully to avoid damage
• Verify wiring and mounting locations match the original; secure all connectors and fasteners

PTC relay is a start device that helps the appliance motor begin turning by providing a brief boost to the start winding. Replacing a faulty relay restores reliable motor starting and can return normal operation. What it does:

• Provides a temporary start assist to the motor's start winding so the motor can overcome initial inertia.
• Commonly replaced when the motor hums but won't start or when the unit fails to begin operation.
• Can address symptoms such as clicking noises at startup, intermittent motor starting, or no motor movement despite power.
• Works as the motor start control — failure can prevent the appliance from operating properly.

• Disconnect power before servicing to avoid electric shock.
• Note terminal locations and orientation before removal; install replacement on the same terminals.
• Handle terminals gently and ensure tight, corrosion-free connections.
• After installation, restore power and verify the motor starts and runs normally.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation
