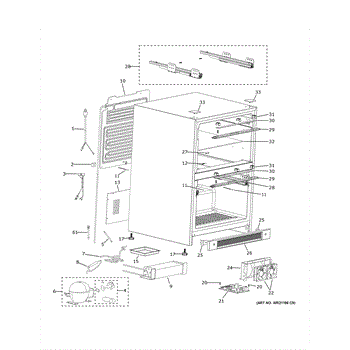

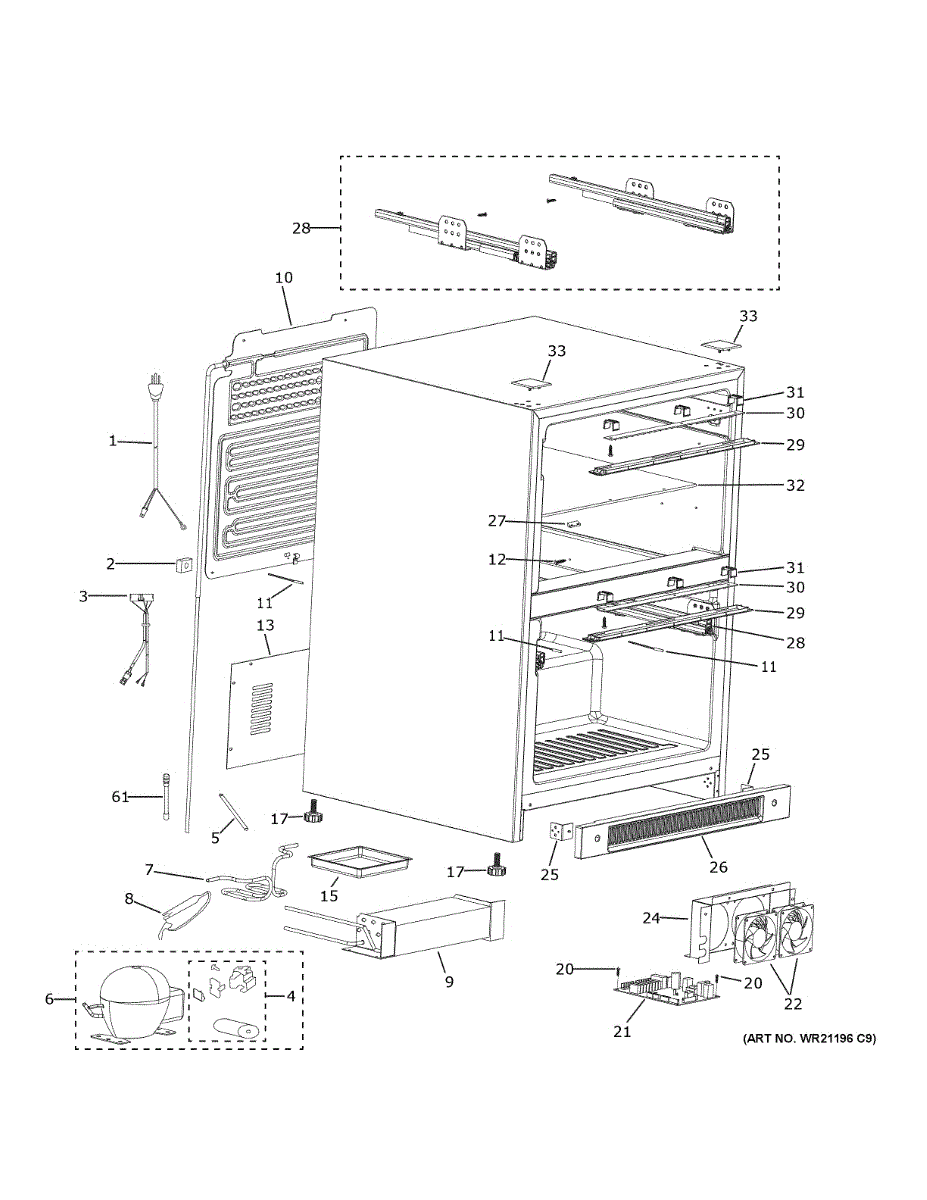

Parts for Ge CDE06RP3NDD1: Cabinet Parts

The Sensor Cable is an OEM replacement part for GE refrigerators. It is responsible for monitoring the temperature inside your refrigerator and transmitting accurate readings to the control board.

A bad sensor cable can occur due to wear and tear, damage, or loose connections. If you notice symptoms such as inconsistent temperature readings, rapid temperature fluctuations, or the refrigerator not cooling as it should, it may indicate a need to replace the sensor cable.

Symptoms of a bad sensor cable include:

• Inconsistent temperature readings
• Rapid temperature fluctuations
• Ineffective cooling

Restore your refrigerator by replacing the faulty sensor cable with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This sensor clamp is a small mounting clip that secures a refrigerator temperature/defrost sensor to tubing or the evaporator, keeping the sensor in place for consistent temperature sensing and reliable operation. What it does:

• Secures a fridge temperature or defrost sensor to tubing, evaporator fins, or mounting points
• Keeps the sensor stable to maintain consistent contact and accurate temperature readings
• Prevents sensor movement that can cause temperature fluctuations or incorrect control behavior
• Helps resolve symptoms like intermittent temperature changes, incorrect temperature display, or sensor-related error codes

• One sensor clamp / mounting clip

• Disconnect power to the appliance before inspecting or replacing parts
• Locate the sensor, remove the old clip, and fit the new clamp around the sensor and tubing or mounting point until it snaps into place
• Avoid pinching or sharply bending sensor wires; ensure the sensor tip maintains contact with the surface it's monitoring
• Replace the clamp if damaged or cracked; use only the specified clamp for proper fit

This toe kick bracket secures the refrigerator's lower kick panel/grille to the cabinet, restoring a snug fit and preventing rattling or the panel from falling. Use when the lower grille is loose, misaligned, or missing its mounting support. What it does:

• Fastens the toe kick/lower grille to the appliance cabinet for a secure fit
• Keeps the kick panel aligned to prevent gaps and vibration noise
• Replaces a broken, bent, or missing mounting bracket that allows the panel to sag or detach
• Helps maintain proper airflow path behind the grille when installed correctly

• One toe kick bracket

• Disconnect power to the appliance before beginning any work
• Remove the lower grille or kick panel to access mounting location; reinstall grille after securing bracket
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This reed switch and magnet assembly senses door open/close to tell the appliance when to turn lights on and control door-activated features. It replaces a failed door sensor to restore proper door detection. What it does:

• Acts as the door sensor: magnet closes the reed switch when the door is shut.
• Controls interior light and other door-activated functions by signaling open/closed status.
• Commonly replaces a faulty switch when lights stay on or won't turn on with the door.
• Helps stop false "door open" behavior that can affect cooling or dispenser operation.

• Disconnect power to the appliance before starting any work.
• Handle the switch and wiring gently; avoid pulling on wires or connectors.
• Mount the switch and magnet so the magnet aligns closely with the switch when the door is closed.
• After installation, restore power and verify the light and door-activated functions operate correctly.

The R600 Process Valve with Red Cap is an OEM part for GE refrigerators. It regulates the flow of refrigerant within the cooling system, ensuring proper cooling and temperature control.

A bad process valve can occur due to wear and tear, refrigerant leaks, or mechanical failure. If you notice symptoms such as inadequate cooling, excessive frost buildup, or unusual noises coming from the refrigerator, it may indicate a faulty or malfunctioning process valve.

Symptoms of a bad process valve include:

• Inadequate cooling or inconsistent temperature control
• Excessive frost buildup in the freezer
• Unusual noises coming from the refrigerator

Restore your refrigerator by replacing the faulty process valve with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
