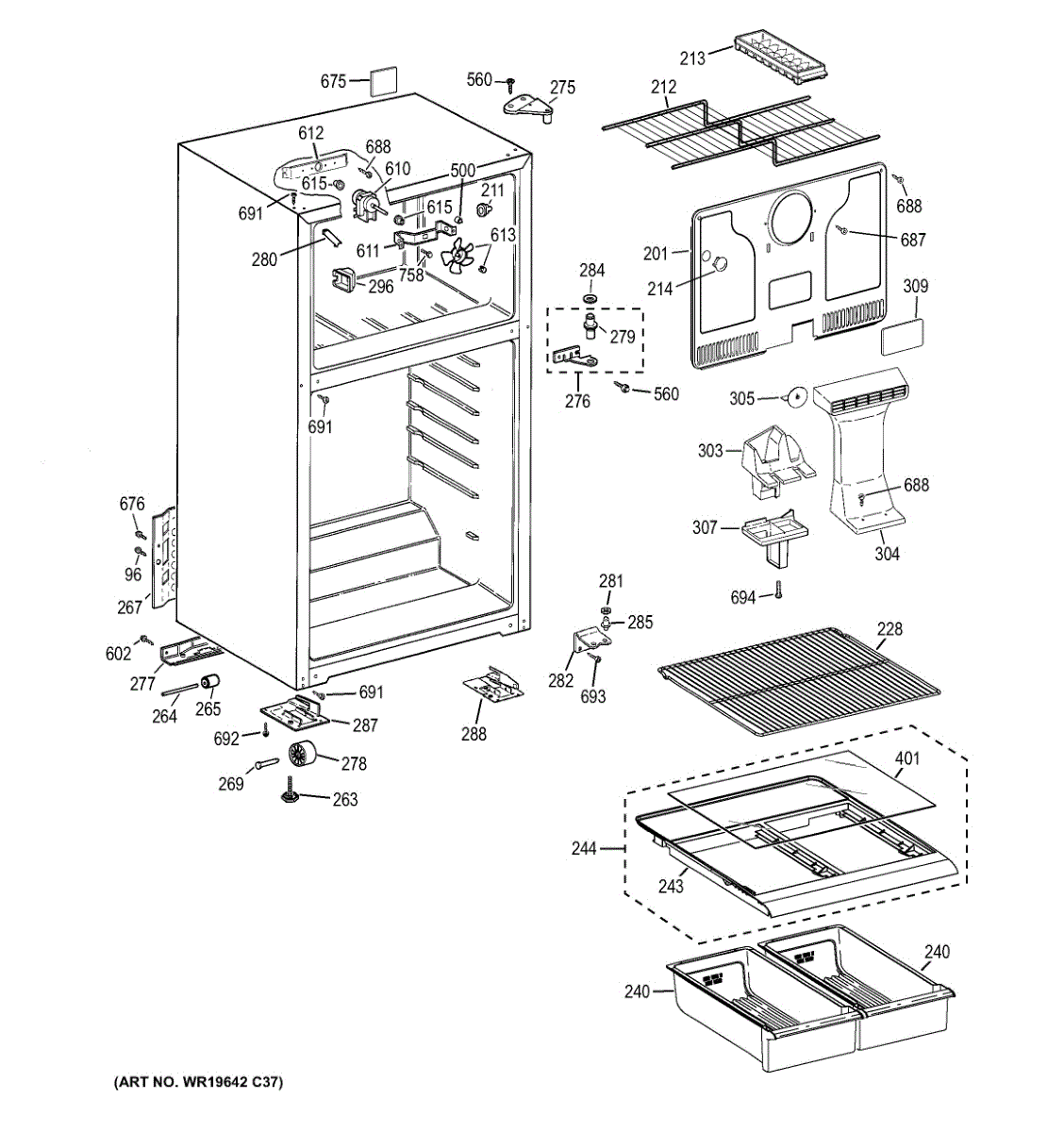

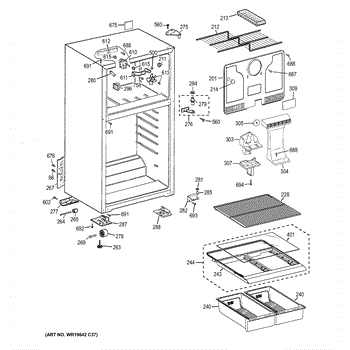

Parts for Ge GTH16DBEFRBB: Cabinet Parts

Mounting bracket that secures shelves and internal components in your refrigerator. Replace if cracked, broken, or missing to keep shelves stable and prevent shifting.

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your broken or cracked refrigerator ice tray. This flexible plastic tray installs in the freezer compartment to hold and form ice cubes.

Wire shelf for refrigerator fresh food section. Provides stable storage surface for organizing food items. Replace if cracked, broken, or missing.

Clear lower crisper drawer for refrigerator vegetable storage. Replace your cracked, broken, or missing drawer to restore organized produce storage.

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. This transparent cover fits over the vegetable/crisper drawers, helping to maintain the ideal humidity levels and keep produce fresh for longer periods. The pan measures approximately 24 inches wide by 19 inches deep.

Symptoms of a bad vegetable pan cover include:

• Crisper drawers drying out too quickly, causing produce to wilt or spoil prematurely
• Inability to properly control humidity levels within the crisper compartment
• Cracks or damage to the cover, preventing an airtight seal

Causes of needing to replace the vegetable pan cover can range from physical damage due to impact or mishandling, to general wear and tear over time that can cause warping or degradation of the plastic material.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Leveling leg threads into the refrigerator base to support and stabilize the cabinet. Replace if cracked, broken, or worn to keep your unit level.

Rear mobility wheel mounts to the back base of your refrigerator. Replace if worn, cracked, or causing uneven rolling when moving the unit for cleaning.

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secure rivet for refrigerator interior panels and structural components. Replace if worn, loose, or missing to restore proper assembly and fit.

Center hinge and pin assembly for top-mount refrigerators. Replaces broken or worn hinge hardware that connects upper and lower doors. Includes pin.

Rear rail support plate for refrigerators. Mounts inside the cabinet to support shelving rails. Replace if cracked, broken, or missing for stability.

Black corner cap cover for top-mount refrigerators. Replaces cracked, broken, or missing corner trim pieces. Installs on exterior cabinet edges.

Small washer that fits on refrigerator door hinges to distribute weight and reduce friction. Replace if worn, cracked, or missing to restore proper alignment.

Bottom door hinge for top-mount refrigerators. Secures and supports the lower refrigerator door. Replace if cracked, bent, or causing door misalignment.

Positions refrigerator door components with correct clearance for smooth swinging and level alignment. Replace if worn, cracked, or missing to restore fit.

Bottom hinge pin secures the refrigerator door at the base, allowing smooth opening and closing. Replace if worn, damaged, missing, or door sags.

Left-hand support gusset plate for top-mount refrigerators. Replaces cracked, broken, or missing structural brackets that secure internal components.

Replace the right-hand mounting gusset bracket in your top-mount refrigerator. Needed when the original bracket is cracked, broken, or missing.

Protective cover for the icemaker receptacle in your freezer compartment. Prevents moisture from entering the socket when an icemaker is not installed.

Insulating foam duct that directs cold air from the evaporator through the fresh food compartment. Replace if cracked, compressed, or missing.

Channels cold air from the evaporator fan through the freezer compartment. Replace if cracked, broken, or missing to restore proper airflow seal.

Air duct gasket seals the air passage in your refrigerator to maintain proper airflow and temperature. Replace if torn, compressed, or causing cooling issues.

Replacement glass panel for refrigerator shelves. Installs in shelf frame to hold food items. Order when original glass is cracked, shattered, or broken.

Replacement mounting screw for refrigerator interior components. Needed when original hardware is stripped, missing, or damaged during repairs or maintenance.

Fixes noisy fan, ice buildup, or warm fridge temps. This evaporator fan motor circulates cold air between compartments. DIY-friendly repair, 1 hour.

Mounts the evaporator fan assembly inside the freezer compartment. Replace if cracked, broken, or damaged from repeated fan motion or temperature stress.

Rear mounting bracket that secures the evaporator fan in your refrigerator. Replace if bracket is cracked, bent, or broken, causing fan misalignment.

Refrigerator not cooling evenly or making noise? The evaporator fan blade circulates cold air. Simple press-on installation in under 30 minutes.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Size: 10-16 ab.

Hex washer head screw for refrigerator assembly. Secures internal components like fan housings and panels. Replace if stripped, missing, or damaged.

Secures brackets, panels, trim, and covers inside your refrigerator. Replace this screw if stripped, missing, or damaged to restore tight assembly.

This silicon controlled rectifier (SCR) is an electrical switching device used on appliances to regulate power to heating elements and motors. It restores reliable power flow for consistent operation when the original SCR fails. What it does:

• Controls and switches current to heating elements or motors for temperature and power regulation
• Prevents uncontrolled power delivery that can cause erratic heating or cycling
• Common symptom: appliance won't heat or heats inconsistently
• Common symptom: appliance displays erratic temperature control or intermittent operation

• One silicon controlled rectifier (SCR) unit

• Disconnect all power at the breaker before accessing or replacing the SCR
• Handle the part carefully; avoid contact with conductive terminals and observe ESD precautions
• Use the original mounting hardware and torque to OEM specifications where applicable

Replace missing or stripped mounting screws in your refrigerator. This screw secures internal components and panels. Essential for reassembly after repairs.

Secures brackets, panels, and internal components in your refrigerator. Replace missing or damaged screws to eliminate rattles and keep parts aligned.
