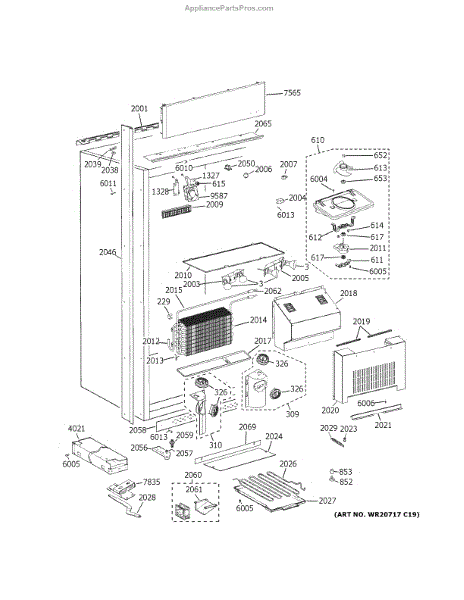

Parts for Ge ZIRS360NPBLH: Cabinet Parts

This halogen light bulb restores interior lighting so you can clearly see inside your appliance while cooking and cleaning. It replaces a burned-out or dim halogen lamp to improve visibility and safe operation. What it does:

• Provides bright, focused light for appliance interiors so you can check food and settings.
• Replaces a burned-out or flickering halogen lamp that leaves the oven or cooktop dimly lit.
• Matches the OEM part style for direct replacement when this part number is specified.
• Helps restore normal lighting without modifying the fixture or wiring.

• One halogen light bulb.

• Allow the appliance to cool and disconnect power before replacing the bulb.
• Handle the bulb by the base or wear clean gloves; oils from skin can shorten halogen bulb life.
• Test the light after installation and dispose of the old bulb properly.

This right-side bottom light assembly replaces the damaged or burned-out light housing in the refrigerator fresh-food section, restoring interior illumination and a finished appearance. Fits in the lower right area where the original light assembly mounts. What it does:

• Houses and protects the refrigerator interior light bulb so the fresh-food area stays illuminated
• Restores secure mounting and proper light direction when the original housing is cracked, loose, or missing
• Helps prevent moisture and debris from contacting the bulb or socket
• Resolves symptoms such as dim or no light in the lower/right compartment, rattling or a loose lens

• One right-side bottom light assembly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove only the fasteners or clips specified by the appliance design; handle the lens and bulb carefully to avoid damage
• If replacing the bulb, use the correct replacement bulb type and do not overtighten

This left-hand bottom light assembly restores illumination to the lower compartment, making it easier to see food and controls. It replaces a damaged or non-working lower light housing for improved visibility and safe use. What it does:

• Provides interior lighting for the refrigerator's lower/bottom left area
• Replaces a cracked lens, damaged housing, or faulty light assembly that causes no light or flickering
• Secures into the factory left-hand mounting location and connects to the existing wiring harness
• Helps you locate items and read controls in the lower compartment

• Disconnect power to the appliance before starting any repair
• Remove shelves/drawers as needed to access the lower left light housing
• Handle lens and bulb/socket carefully to avoid damage; replace bulb if necessary
• Secure assembly with factory screws and restore power; test operation before reassembling

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test

Keep the refrigerator's rear fan assembly secure and airflow on track with this fan orifice bracket. It supports the fan shroud/orifice so the motor and blade stay aligned, helping maintain proper cooling and reduce vibration.

• Secures the fan orifice/shroud to the machine-compartment frame
• Maintains correct fan motor and blade positioning for smooth operation
• Helps direct airflow through the condenser area for effective heat removal
• Typical symptoms of a failed bracket include rattling/buzzing from the back, a loose or wobbling fan assembly, reduced airflow, or warm temperatures

• Disconnect power and move the refrigerator to access the rear machine compartment
• Remove the rear access cover; support the fan motor/blade before loosening fasteners
• Transfer any reusable mounting hardware to the new bracket; align the orifice/shroud properly
• Ensure the fan spins freely and the assembly is secure before reinstalling the rear cover and restoring power

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

A shoulder-style bolt used to secure and locate moving parts so they pivot or slide smoothly. Replaces a worn or damaged shoulder bolt to restore proper alignment and reduce binding or noisy operation. What it does:

• Provides a precise bearing surface for pivots, hinges, or sliding linkages.
• Keeps assembly components aligned and prevents lateral play.
• Commonly replaced when parts bind, rattle, or fail to move smoothly.
• Helps eliminate uneven movement, misalignment, or unusual noises near the joint.

• Disconnect power to the appliance before starting any repair.
• Use the correct socket or wrench to avoid rounding the head.
• Do not overtighten; tighten to snug fit allowing intended pivoting motion.
• Inspect mating holes and bushings for wear; replace if excessively worn.

This top fan bracket secures the refrigerator's top/condenser fan assembly to the cabinet, helping keep the fan aligned for proper airflow and quiet operation. Replaces a worn or broken mounting bracket to restore stable fan mounting. What it does:

• Provides a secure mounting point for the top/condenser fan assembly
• Keeps the fan aligned to prevent rubbing, vibration, and noise
• Helps maintain proper airflow for consistent cooling performance
• Commonly replaced when bracket is cracked, bent, or broken

• Disconnect power to the appliance before beginning work
• Typical installation requires removing the top access cover and fan housing; keep track of all fasteners
• Handle sheet metal edges carefully and wear gloves to avoid cuts
• Reuse original screws if not supplied; verify fan alignment and clearance after installation

This master light switch kit replaces the main oven light switch assembly so the oven light turns on and off reliably. Designed for direct-fit replacement to restore normal oven lighting control. What it does:

• Replaces the oven's master light switch assembly that controls interior lighting
• Restores the ability to turn the oven/cabinet light on and off
• Helps eliminate flickering, intermittent operation, or complete light failure
• Works with existing wiring and mounting points for a straightforward swap

• One master light switch kit (assembly) as shown

• Disconnect power to the appliance before starting any work
• Basic hand tools required; follow OEM wiring and grounding instructions
• Verify proper operation after installation before returning appliance to service

This DC evaporator fan motor assembly circulates cold air across the evaporator coil to maintain proper refrigerator/freezer temperatures and efficient cooling. Replaces a failed or noisy evaporator fan to restore normal airflow. What it does:

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Helps prevent frost buildup by maintaining airflow across the coil.
• Common symptoms of failure: loud or grinding noise, fan not running, uneven cooling, or warm compartments.
• Works as the airflow drive behind frost buildup and temperature fluctuation issues when the compressor and thermostat are otherwise functioning.

• One evaporator fan motor assembly (DC) as shown.

• Disconnect power at the breaker or unplug the appliance before starting any repairs.
• Access typically requires removing interior panels/evaporator cover and handling evaporator components carefully to avoid coil damage.
• Confirm connector orientation and secure mounting; test operation before reassembling panels.
• If you find ice on the evaporator, fully defrost the compartment and verify no air leaks or drainage issues remain.

This evaporator coil assembly circulates refrigerant and absorbs heat inside the freezer section to enable efficient cooling and proper temperature control. Replacing a worn or damaged coil restores normal refrigeration performance. What it does:

• Circulates refrigerant through the freezer evaporator to remove heat from the air
• Helps maintain cold temperatures and proper defrost cycling when functioning correctly
• Commonly linked to symptoms such as reduced cooling, excessive frost or ice buildup, or long run times
• Works with the freezer compartment's fan and defrost system to keep airflow and temperature stable

• Disconnect power before beginning any service to avoid electrical shock
• Refrigerant system work (evacuating or recharging) must be performed by a certified HVAC/refrigeration technician per local regulations
• Handle the coil carefully to avoid bending fins or damaging the tubing and connections
• Confirm fit and necessary mounting hardware or gaskets before installation; additional components may be required

This is a replacement edge trim piece that restores a clean, finished edge and helps protect cabinet or door surfaces from chips and wear. It improves the appearance and prevents edges from catching on seals or gaskets. What it does:

• Covers and protects exposed metal or plastic edges on appliance doors or panels
• Replaces cracked, split, or missing trim that can catch on clothing or seals
• Helps maintain a smooth sealing surface to reduce gaps or snags
• Restores finished appearance after damage or wear

• One edge trim piece as shown

• Remove any old adhesive or debris before installing for a secure fit
• Trim to length if required and press firmly into place; some installations use adhesive or snaps
• Wear gloves to avoid sharp edges during removal and installation

This Evaporator trough (catch) collects defrost water from the evaporator and channels it to the refrigerator drain pan, helping prevent water buildup and freezing around the evaporator assembly. What it does:

• Catches melt water produced during automatic defrost cycles and directs it to the drain path
• Helps prevent water pooling or ice buildup inside the freezer/evaporator area
• Supports proper drainage to the condenser/drip pan to avoid leaks under the appliance
• Fits behind the evaporator cover to maintain correct water flow and containment

• One evaporator trough (catch) as shown

• Disconnect power to the appliance before starting any repair
• Remove evaporator cover/panels carefully to access the trough; avoid bending evaporator fins
• Verify correct orientation and secure with existing screws/clips; ensure drain outlet aligns with the drain tube

This left-hand link actuator moves a device linkage to restore proper mechanical motion in the appliance. Replacing a worn or broken actuator helps stop erratic movement and restores reliable operation at the affected linkage. What it does:

• Converts motor or lever movement into motion at the left-hand linkage
• Replaces a cracked, stuck or broken actuator that prevents proper linkage movement
• Can stop clicking, grinding or failed movement caused by a damaged link actuator
• Works where a left-side linkage needs an exact-fit actuator to restore function

• Disconnect power to the appliance before starting work
• Remove only the panels and fasteners necessary to access the actuator; label connectors if needed
• Handle plastic tabs and mounting points carefully to avoid breakage during removal and installation
• Reconnect wiring and test the mechanism through a full cycle before reassembling all panels

Spring should have GOLD color.

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

The Switch Light is an OEM part for GE refrigerators. It is designed to activate the refrigerator’s interior light when the door is opened and turn it off when the door is closed. This ensures visibility inside the refrigerator, making it easy to locate items even in low-light conditions.

Over time, the switch light can become faulty due to wear and tear, exposure to moisture, or repeated use. These factors can cause the switch to malfunction or become unresponsive.

Symptoms of a bad switch light include:

• The refrigerator light not turning on when the door is opened
• The light staying on even when the door is closed
• Flickering or dimming of the interior light
• No response from the light switch when the door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

A drain fan bracket assembly that secures the drain/fan motor and mounting hardware to the appliance, helping keep the fan stable and aligned for reliable operation. What it does:

• Holds the drain fan or motor in the correct position to maintain airflow and drainage
• Reduces vibration and noise caused by a loose or damaged bracket
• Prevents the fan from rubbing or binding, which can cause motor wear or failure
• Can be replaced when cracked, bent, or otherwise broken to restore proper fan operation

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Remove surrounding panels and fasteners to access the bracket; retain mounting screws for re-use if not replaced.
• Inspect adjacent components (fan blade, motor mounts, wiring) and replace any damaged parts.

This toe kick skirt replaces the lower front trim that covers the gap beneath the appliance, restoring a finished look and protecting under-cabinet components from dust and debris. It's a direct-fit exterior trim piece designed to match factory appearance. What it does:

• Covers the open space under the appliance to improve appearance and conceal components
• Helps keep dust, dirt and small debris out of the area beneath the unit
• Restores a secure lower trim that may have been cracked, bent or missing
• Re-establishes a flush edge to prevent small items from sliding under the appliance

• One toe kick skirt (single lower front kickplate)

• Disconnect power to the appliance before starting work to ensure safety
• Typically installs from the front using existing clips or screws; retain original fasteners if possible
• Handle trim carefully to avoid scratching painted or plastic surfaces during installation
• Purchase replacement clips/screws specified for your model

This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

Size: 10-32 GXTT FLP.595 S

Size: 10-32 GXTT FLP.595 S

This fresh food compartment fan circulates cool air inside the refrigerator section to help maintain even temperatures and reduce hotspots. Replacing a worn fan can restore airflow and improve overall cooling consistency. What it does:

• Moves air through the fresh food compartment to help distribute cold air evenly
• Helps prevent warm spots and reduces temperature fluctuations in the refrigerator section
• Common symptom of failure: reduced airflow or unusual noise coming from the fresh food area

• One fresh food compartment fan

• Disconnect power to the appliance before attempting any repairs
• Access often requires removing interior panels or shelves; keep track of fasteners and trim
• Inspect wiring and connectors for damage before installing the new fan
