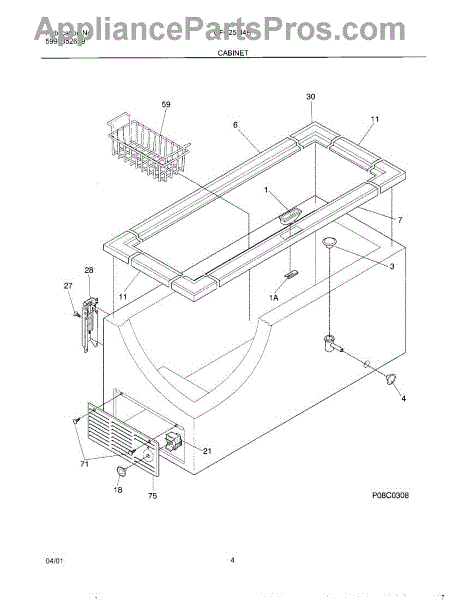

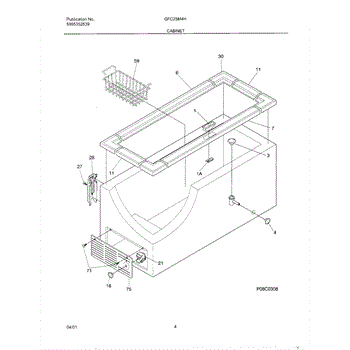

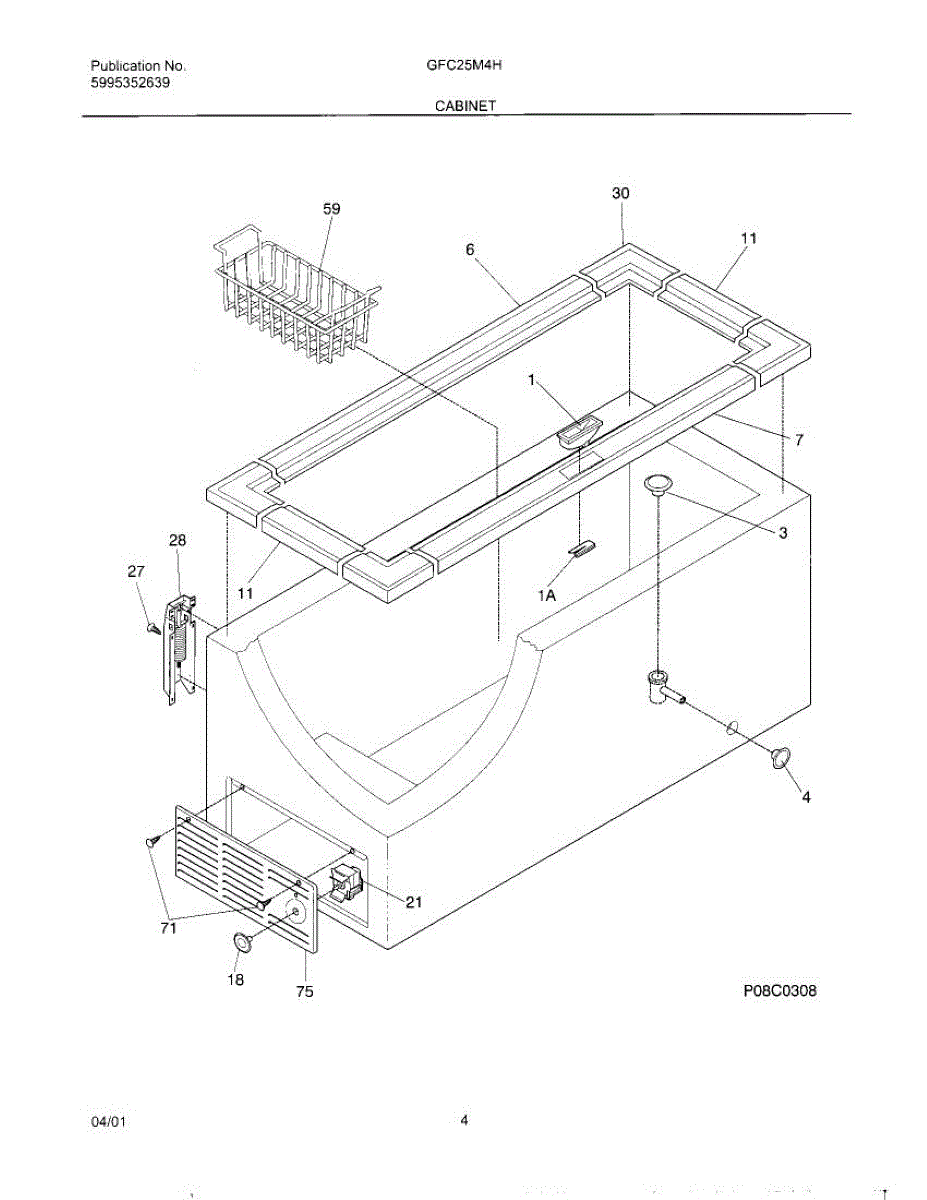

Parts for Gibson GFC25M4HW2: 05 - Cabinet Parts

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

This temperature control thermostat regulates the cabinet temperature by cycling the cooling system on and off as needed. Replacing a faulty control restores consistent cooling performance and makes the setting dial respond correctly.

• Senses cabinet temperature via the capillary bulb and opens/closes contacts to start or stop the compressor
• Corrects issues such as no cooling/won't run (open control) or running constantly/won't shut off (stuck closed)
• Addresses erratic temperatures or a dial that has little or no effect on temperature
• Helps maintain stable, food-safe temperatures once adjusted

• Unplug the appliance before servicing; do not work on live circuits
• Remove the control housing/escutcheon, pull off the knob, note wire positions, and transfer any brackets as needed
• Route the new capillary in the original path; avoid kinks/sharp bends and secure the sensing bulb in the original clips
• Reassemble, restore power, and allow up to 24 hours for temperatures to stabilize; adjust the setting as needed

This door hinge supports the appliance door and provides a smooth pivot for opening and closing. Replacing a bent or worn hinge restores door alignment and helps the gasket seal correctly to maintain proper performance.

• Supports door weight and provides the pivot point for movement
• Maintains alignment for even gasket contact and reliable closing
• Common symptoms: door sags or rubs, pops open, won't close smoothly, squeaks/grinds, visible bend or wear
• Direct replacement for a damaged hinge to restore proper door operation

• Unplug the appliance and remove items from the door before starting
• Support the door; mark hinge position, then remove mounting screws and swap the hinge
• Save and reuse the original mounting hardware
• After installation, check door alignment and gasket contact; adjust as needed

Color: white. Measures about 12 inches wide by 6 inches high by 23 inches deep.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
