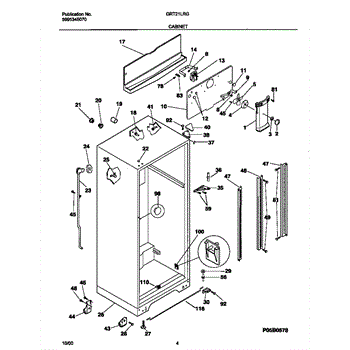

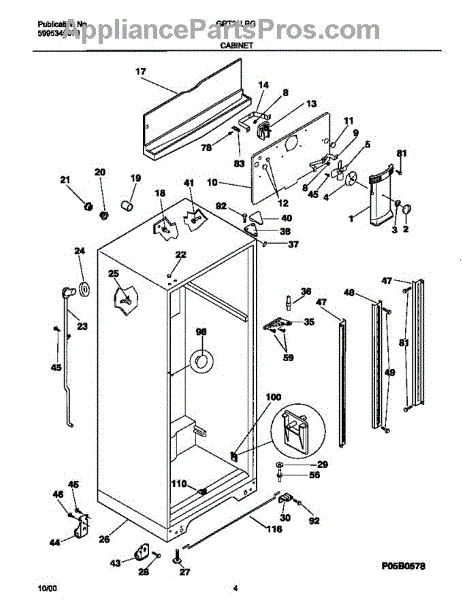

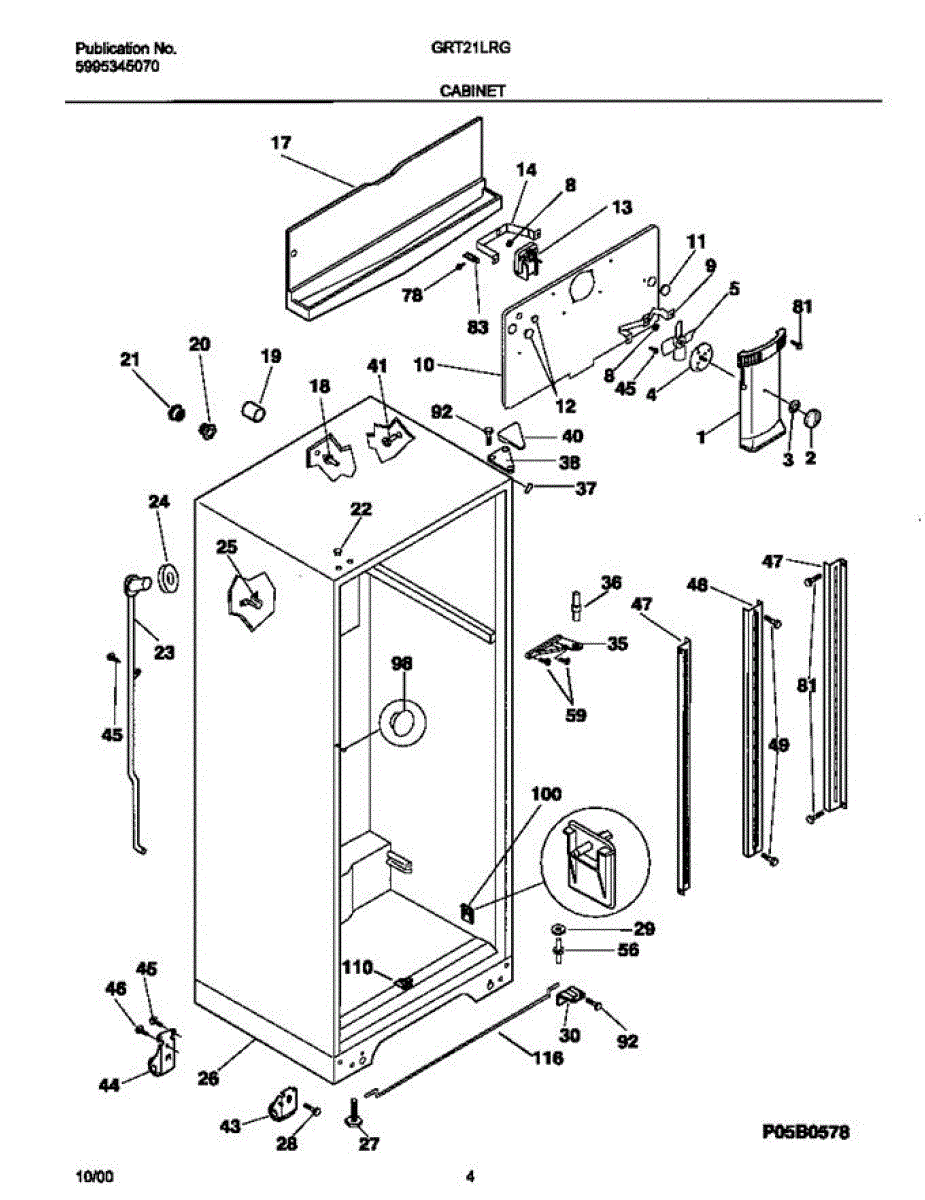

Parts for Gibson GRT21LRGD2: Cabinet Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

This center hinge pin is the door pivot pin that secures and aligns the middle hinge on compatible refrigerators, restoring smooth door movement and proper sealing. It's a direct-fit replacement when the existing pin is worn or damaged. What it does:

• Serves as the pivot pin for the center door hinge, allowing the door to swing and stay aligned
• Helps maintain proper door alignment and sealing to prevent gaps and cold air loss
• Commonly replaced when the door sags, drags, binds, or produces metal-on-metal noise
• Simple, single-piece mechanical replacement — no electrical connection

• One center hinge pin

• Unplug or disconnect power to the appliance before starting work to avoid electrical hazards
• Support the door with a second person or a suitable prop before removing the hinge to prevent injury and damage
• Remove hinge fasteners carefully, replace the pin, then reassemble and hand-tighten fasteners before checking alignment
• After installation, verify the door opens/closes smoothly and seals properly; make small hinge adjustments as needed

This rubber grommet cushions and seals appliance components to reduce vibration and prevent wear where wiring, rods or panels pass through mounting openings. It helps keep parts aligned and protects against chafing and noise. What it does:

• Cushions and isolates vibration between moving parts and chassis
• Protects wiring, tubes or rods from rubbing and abrasion at mounting holes
• Helps reduce noise caused by contact or metal-on-metal vibration
• Aids in maintaining proper part alignment and secure fit

• Grommet

• Inspect mating hole and surrounding area for debris or sharp edges before installing
• Fit the grommet into the mounting hole so the flange seats evenly on both sides
• Replace any damaged or excessively worn grommets to restore protection
• Disconnect power and follow appliance safety procedures before attempting service

This replacement drum support roller helps the dryer drum turn smoothly and reduces noise from worn or seized rollers. Restores proper drum alignment for more reliable drying and quieter operation. What it does:

• Supports the dryer drum and allows it to rotate on a stable axle
• Reduces squealing, grinding, or scraping noises caused by worn rollers
• Prevents drum wobble and uneven wear that can lead to fabric damage or belt stress
• Helps maintain proper drum alignment to improve drying performance

• Disconnect power before servicing and ensure the dryer is fully powered off.
• Access may require removing the dryer back panel or front bulkhead; support the drum while replacing the roller.
• Inspect adjacent parts (shaft, felt seals, idler, belt) and replace if worn to avoid repeat failures.
• Tighten fasteners securely but avoid over-torquing; test drum rotation by hand before reassembly.

This lower hinge pin secures the refrigerator door to the cabinet, allowing the door to pivot smoothly and stay aligned. Replaces a worn or damaged hinge pin to restore proper door movement and closing. What it does:

• Acts as the pivot point for the refrigerator door, supporting door weight and rotation
• Helps keep the door aligned to prevent sagging, sticking, or uneven gaps
• Commonly replaced when the pin is bent, worn, or causing noisy/rough door movement
• Works with the lower hinge assembly to maintain a proper door seal and operation

• Installation requires removing the lower hinge or door; follow your model's service instructions
• Support the door while removing/installing hinge hardware to prevent injury or damage
• Use appropriate hand tools; avoid forcing parts or misaligning the hinge pin
• If any hinge housing or mounting hardware is damaged, replace those parts as well for safe operation

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

The Crisper Shelf Support is an OEM part for Frigidaire refrigerators. It is designed to hold the crisper shelf securely in place, providing stable support for the storage of fruits and vegetables.

Over time, the crisper shelf support can become worn or damaged due to regular use, heavy loads, or accidental impacts. If the support breaks or fails, it can lead to an unstable or sagging crisper shelf.

Symptoms of a bad crisper shelf support include:

• The crisper shelf not sitting level
• The shelf falling out of place or not staying securely in position
• Difficulty in inserting or removing the crisper drawer
• Visible cracks or damage to the support

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
