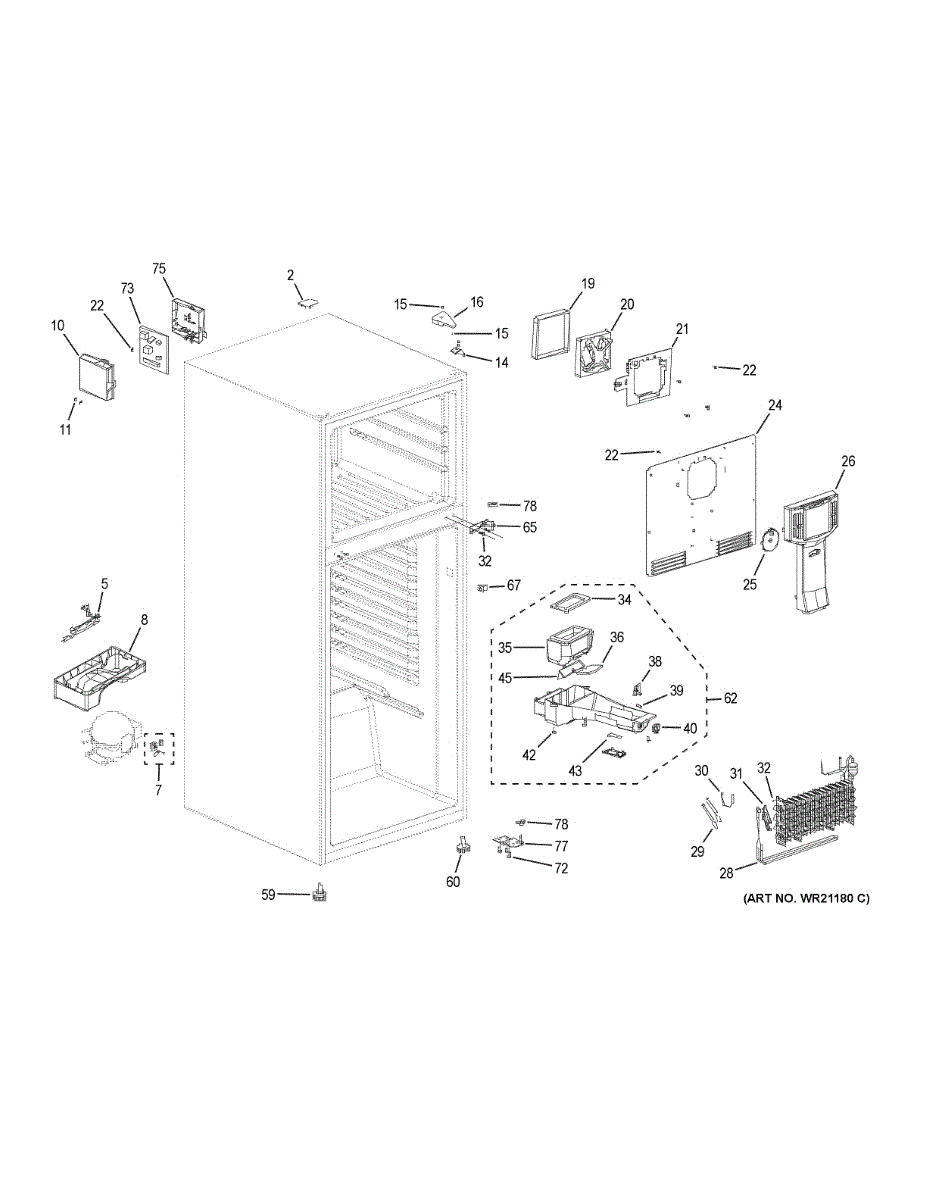

Parts for HA10TG31SS: Cabinet Parts

The Compressor Electricals & Drain Pan is an OEM replacement part for GE refrigerators. This kit consists of the compressor overload, start relay, and drain pan. The overload and start relay work together to provide the necessary electrical current and start-up sequence for the compressor, while the drain pan collects and directs any condensation or water that may accumulate from the defrost cycle.

A bad compressor overload, start relay, or drain pan can occur due to electrical issues, component failure, or damage over time. If you notice symptoms such as the compressor not starting, excessive noise coming from the refrigerator, or water leakage around the unit, it may indicate a need to replace these components.

Symptoms of a bad compressor overload, start relay, or drain pan include:

• Compressor not starting
• Excessive noise from the refrigerator
• Water leakage around the unit

Restore your refrigerator by replacing the faulty compressor overload, start relay, and drain pan with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Compressor Electricals & Drain Pan is an OEM replacement part for GE refrigerators. This kit consists of the compressor overload, start relay, and drain pan. The overload and start relay work together to provide the necessary electrical current and start-up sequence for the compressor, while the drain pan collects and directs any condensation or water that may accumulate from the defrost cycle.

A bad compressor overload, start relay, or drain pan can occur due to electrical issues, component failure, or damage over time. If you notice symptoms such as the compressor not starting, excessive noise coming from the refrigerator, or water leakage around the unit, it may indicate a need to replace these components.

Symptoms of a bad compressor overload, start relay, or drain pan include:

• Compressor not starting
• Excessive noise from the refrigerator
• Water leakage around the unit

Restore your refrigerator by replacing the faulty compressor overload, start relay, and drain pan with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Self-tapping mounting screw for refrigerator interior components. Replace when stripped, missing, or damaged during appliance repairs or part installations.

If your refrigerator isn't cooling evenly or the freezer is warm, the evaporator fan bracket may be loose or broken. This mount secures the fan motor.

Refrigerator not cooling evenly or freezer too warm? This evaporator fan assembly circulates cold air across the coils to restore proper temperatures.

This clip harness secures a refrigerator appliance wiring harness to the cabinet to keep wires routed and stable, reducing movement and contact with sharp edges. It helps maintain reliable electrical connections and a tidy interior layout. What it does

• Secures wiring harness to the appliance cabinet to prevent sagging or loose wires
• Helps reduce wire chafing and connector stress that can lead to intermittent connections
• Keeps harnesses routed away from heat sources, moving parts and sharp sheet metal
• Maintains factory routing so connectors stay seated and accessible for service

• Disconnect power before servicing to avoid shock or injury
• Remove access panels as needed to reach original clip location; replace like-for-like
• Route the harness through the clip so wires are snug but not pinched
• If any wiring or connectors are damaged, replace or repair before restoring power

Fix inconsistent cooling or warm fridge issues with this temperature sensor. Detects internal temperatures and sends readings to the control board.

Fixes frost buildup in freezer and poor cooling. This defrost control board cycles the heater to prevent ice accumulation on the evaporator coils.

This is a self-tapping ST3.5 x 9.5 screw used to secure panels, trim and small appliance components. It replaces missing or damaged screws to restore proper fit and prevent rattling or loose parts. What it does:

• Fastens control panels, brackets, trim pieces and light assemblies
• Replaces stripped, corroded or missing screws that allow parts to shift
• Restores secure mounting and helps eliminate vibration noise
• Small size for low-profile applications where a compact fastener is required

• Use the correct sized Phillips or Pozidriv driver to avoid cam-out
• Start screws straight and drive until snug; avoid overtightening to prevent stripping
• Disconnect power and remove any sharp panels before working to stay safe
• Keep a small parts tray to avoid losing tiny screws during repair

This replacement screw fastens appliance components and restores secure mounting where the original screw is missing or damaged. It's a direct-fit hardware fastener that helps maintain proper alignment and safe operation. What it does:

• Secures panels, brackets, or assemblies to prevent rattling and movement
• Restores proper mounting after stripped or lost screws
• Helps maintain door/panel alignment and component stability
• Works as a standard hardware replacement for the specific OEM application

• One replacement screw

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until secure but avoid over-torquing which can damage threads or plastic parts
• Replace like-for-like: match thread size and length to the original screw
• Disconnect power and follow safety guidelines before servicing electrical components

LED light bulb for top-mount refrigerator compartments. Replace when flickering, dim, or burnt out. Verify fit with your model number before ordering.

Fix unresponsive temperature controls or a blank display panel. This control housing assembly restores proper function to your top-mount refrigerator.

Fixes refrigerator not cooling, display not working, or erratic temperature control. This main control board regulates all refrigerator functions.
