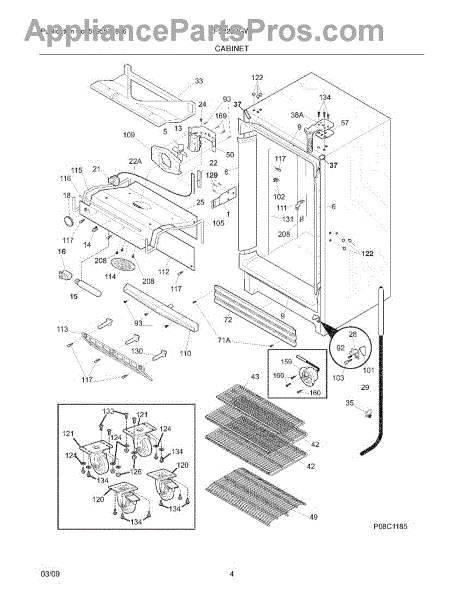

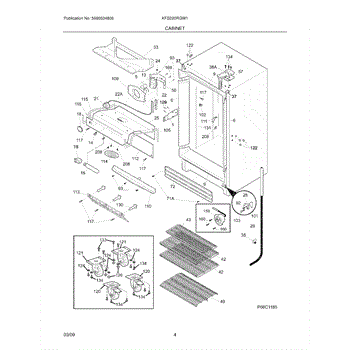

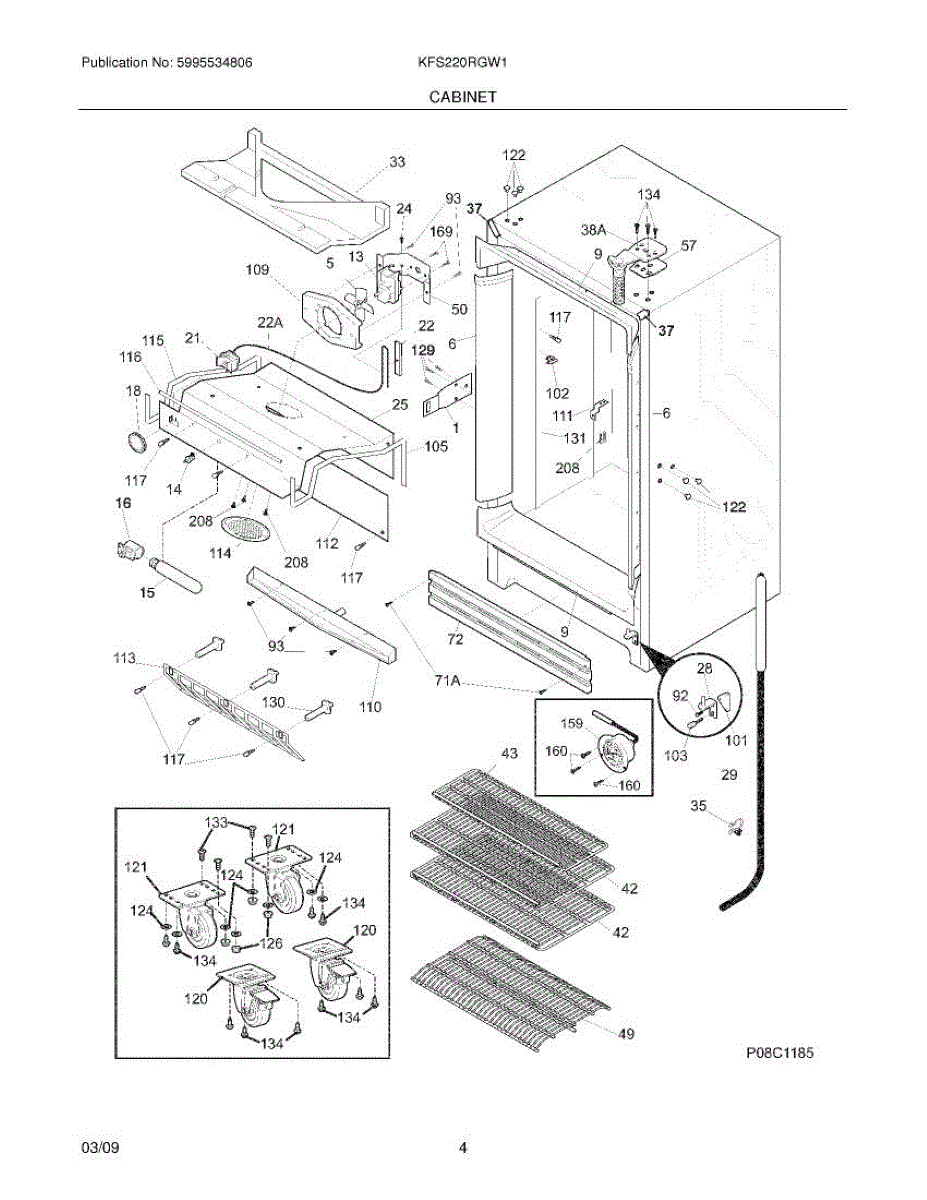

Parts for Kelvinator KFS220RGW1: 05 - Cabinet Parts

Fix a freezer door that won't stay closed or latched properly with this door lock catch. Simple DIY repair to restore secure door closure in minutes.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

Door breaker trim kit with corner pieces for freezers. Installs along door edges to protect and seal. Replace if cracked, broken, or missing pieces.

This cabinet breaker kit forms the insulating trim around the appliance opening. It provides a proper surface for the door or lid gasket to seal against and helps minimize condensation along the edge for clean, reliable performance.

• Creates the thermal break and finished edge around the cabinet opening
• Supports correct seating of the door/lid gasket for a consistent seal
• Helps reduce sweating or moisture at the perimeter
• Replaces cracked, warped, or missing breaker trim components

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the door/lid if required for access and retain all fasteners
• Carefully remove old breaker components and clean the mounting surfaces
• Install the new breaker and corners, align evenly, avoid overtightening, and verify the gasket seals all around

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

This door-activated light switch controls the interior lamp in your refrigerator or freezer. Replace it to restore dependable on/off lighting when the door opens and closes and prevent a light that stays on and warms the compartment.

• Activates the interior light when the door opens and switches it off when closed
• Helps resolve no interior light, light staying on, or a broken/stuck switch plunger
• Restores reliable visibility inside the compartment
• Direct replacement for the original switch connection

• Disconnect power before servicing
• Release the switch from the liner and gently pull it out
• Transfer wires to the new switch one at a time to maintain correct connections
• Seat the switch flush; restore power and verify the light turns off when the door closes

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

This light socket holds the interior appliance bulb and connects it to the unit's wiring. Replace a damaged or loose socket to restore dependable cabinet lighting when the door is opened.

• Secures the interior light bulb and provides reliable electrical contact
• Supplies power to the lamp when the door switch closes
• Helps resolve flickering or intermittent lighting from a worn or heat-damaged socket
• Common symptoms: light won't turn on, bulb won't seat or stays loose, visible charring at the socket

• Disconnect power to the appliance before servicing
• Remove the lens/cover and bulb; release the socket from its mounting
• Transfer wires one at a time to the new socket and ensure snug connections
• Reinstall bulb and cover, restore power, and test; use the bulb type/wattage specified by the manufacturer

This replacement control knob restores simple, reliable operation for an appliance control so you can adjust heat, power or function settings with a secure grip. It replaces a cracked, loose or missing knob to make controls usable again. What it does

• Provides a secure grip to turn and set appliance controls.
• Replaces knobs that are cracked, worn, loose or missing.
• Restores basic user control over temperature, power or function settings.
• Helps prevent accidental slips when adjusting controls.

• Always disconnect power to the appliance before servicing electrical components.
• Remove the old knob by pulling it straight off the control shaft; align the new knob and push on until fully seated.
• Do not force the knob onto the shaft—if it won't seat easily, verify shaft type and orientation.

This temperature control thermostat senses cabinet temperature and cycles the cooling system to match your set point. Replace it to restore consistent, adjustable cooling when the original control is worn or unresponsive.

• Senses cabinet temperature and opens/closes internal contacts to regulate cooling
• Cycles the compressor to maintain the selected coldness
• Common symptoms of failure: too warm or too cold, runs continuously or won't start
• Temperature knob has little/no effect or causes erratic temperature swings

• Disconnect power to the appliance before servicing
• Photograph/label wiring; transfer leads one at a time to matching terminals
• Reinstall and secure the sensor/control in its original location; avoid sharp bends or damage
• Set to mid-range and allow up to 24 hours for temperatures to stabilize after replacement

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Bottom door hinge with stepped pin for refrigerators and freezers. Replaces worn, cracked, or broken hinges that no longer hold the door securely.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Restores the finished edge on your refrigerator cabinet and hides gaps. Replaces cracked, broken, or missing corner trim for a cleaner appearance.

Top door hinge for freezers. Mounts to the cabinet and door to provide pivot support. Replace if cracked, worn, or causing misalignment issues.

Partial shelf for refrigerators and freezers. Installs inside the unit to organize food and beverages. Replace if cracked, broken, or missing.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Metal shelf support clip installs on refrigerator or freezer walls to hold shelves securely in place. Replace if bent, broken, or missing clips.

The blower venturi is located in the freezer section and helps circulate cold air throughout the refrigerator compartments. Signs of failure include inconsistent temperatures, frost buildup, or unusual noises from the cooling system.

This condensate drain pan sits at the base of the refrigerator to collect defrost water and allow it to evaporate over the warm compressor, helping prevent floor puddles, moisture damage, and musty odors around the unit.

• Collects and holds defrost condensate from the drain tube (also called a drain pan or drip tray)
• Stages water to evaporate safely using compressor/condenser heat
• Replace if the pan is cracked, warped, missing, or leaking
• Common symptoms: water under/behind the refrigerator, damp flooring, or persistent musty odors near the bottom rear

• Unplug the refrigerator and pull it away from the wall; shut off water supply if connected
• Remove the rear lower access panel to reach the pan near the compressor
• Lift out the old pan; clear any debris from the drain outlet; transfer original mounting hardware if needed
• Seat the new pan level under the drain tube; ensure it's secure and reinstall the access panel

Threaded insert nut creates secure anchor point in thin metal or plastic panels. Replace worn, stripped, or missing insert nuts to properly mount covers.

Replacement mounting screw secures internal panels and brackets in refrigerators and freezers. Needed when original hardware is lost, stripped, or damaged.

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Specs: Hex head ,1/4-20 x 5/8

Freezer not cooling properly or running too cold? This temperature control dial regulates interior temperature. Simple DIY fix in 15 minutes.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation
