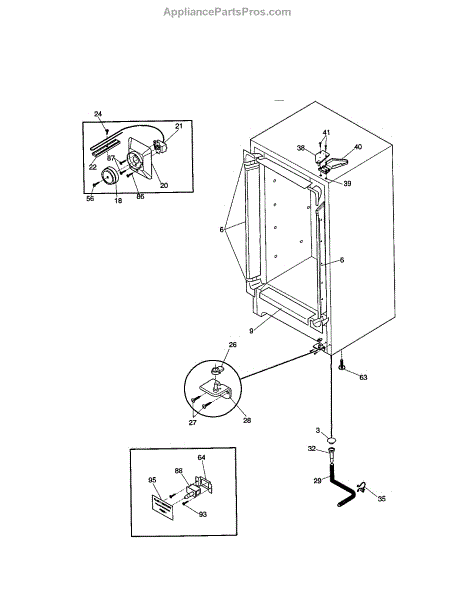

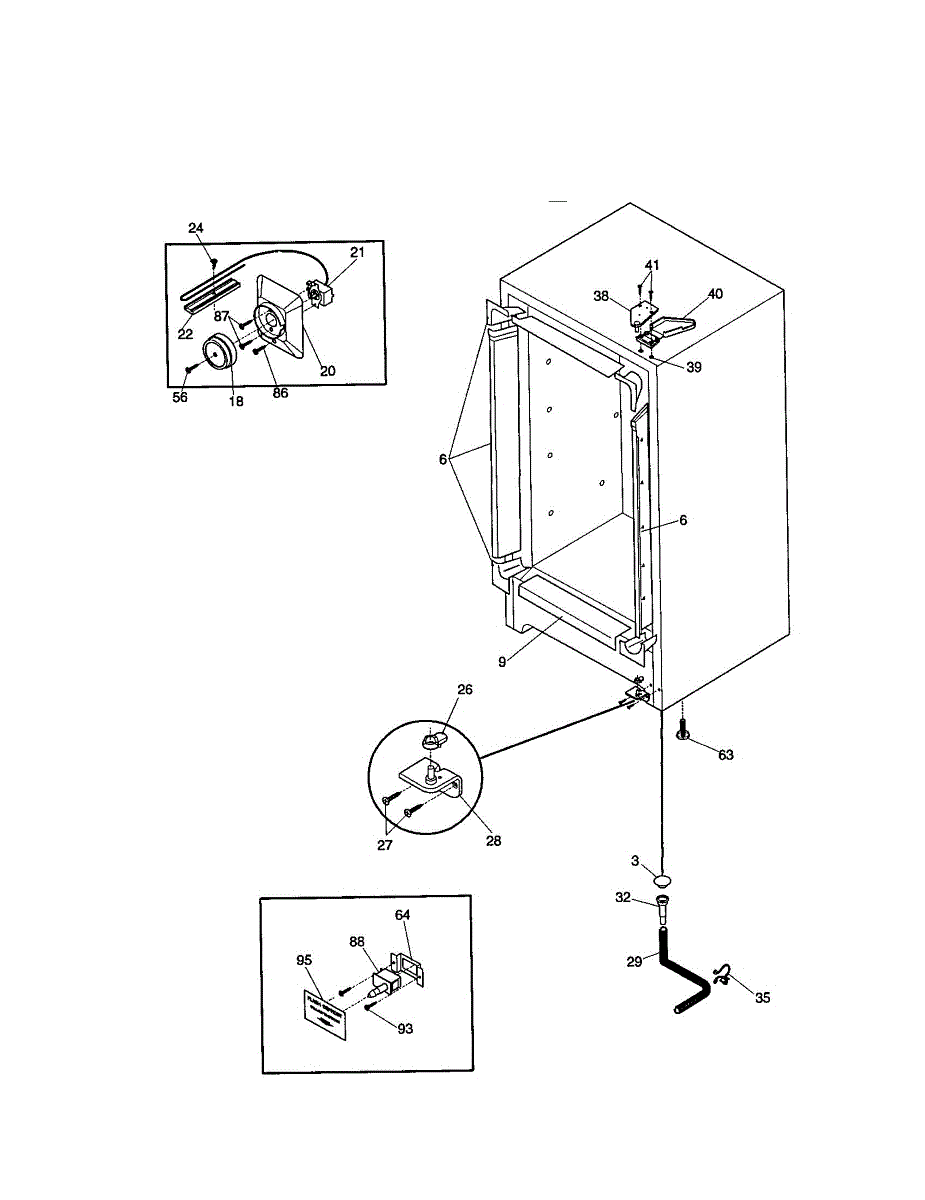

Parts for Kenmore 253.20402003 (25320402003, 253 20402003): Cabinet Parts

A removable cap that covers the freezer's defrost drain hole, typically located at the bottom rear of the freezer compartment. Replace when water pools in the freezer, the cap is missing, or ice blocks the drainage system.

This breaker kit is a factory-style replacement kit that restores the cabinet bracket and corner supports so the appliance components stay properly aligned and secure. It helps fix loose or damaged mounting where breaks or worn corners allow movement. What it does

• Replaces the breaker bracket assembly and corner pieces that secure cabinet components.
• Restores alignment and prevents shifting or sagging caused by broken or worn parts.
• Common symptom: noisy or loose cabinet sections, misaligned panels, or parts that move when the appliance is bumped.
• Designed to match OEM fit and function for a direct replacement.

• High-level replacement: remove access panels and old bracket/corners, then install the kit using original fasteners or supplied hardware.
• Use basic hand tools; keep track of removed screws and clips for reassembly.
• Disconnect power and follow appliance safety procedures before starting work.

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

Replacement control housing cover for freezers. Snaps over the control panel assembly. Replace if cracked, broken, or missing to restore appearance.

Freezer running constantly or not cold enough? This temperature control thermostat cycles the compressor to maintain proper temperature. DIY fix in 1 hour.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

Drain hose that channels wastewater from your freezer to the household drain. Replace if cracked, clogged, or leaking to restore proper drainage.

Alignment sleeve bushing maintains smooth part movement in freezers and refrigerators. Replace when worn to eliminate play and restore operation.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

A service parts catalog containing exploded diagrams and part numbers to help identify and order replacement components quickly. Ideal for technicians and DIYers who need a clear reference for locating parts. What it does:

• Provides exploded views and part reference numbers for accurate identification
• Speeds repair planning by showing part locations and relationships
• Useful for matching symptoms (no cooling, unusual noises, leaks) to likely service parts

• This item is a reference/document — not a physical repair part to install
• Use the catalog with the appliance's model-specific service instructions
• Keep document dry and readable; replace if damaged or illegible
• For safety, disconnect power to the appliance before performing repairs shown in the catalog

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.
