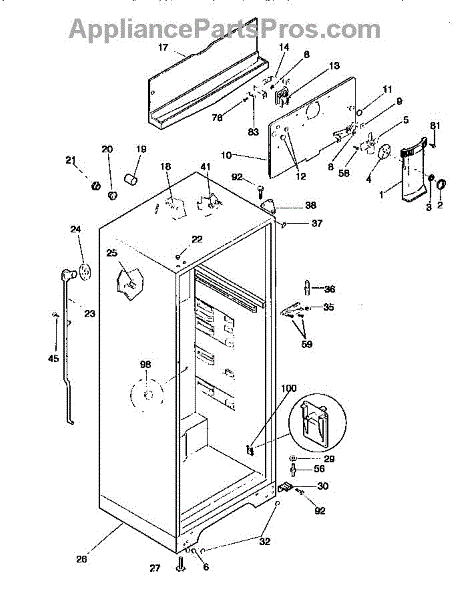

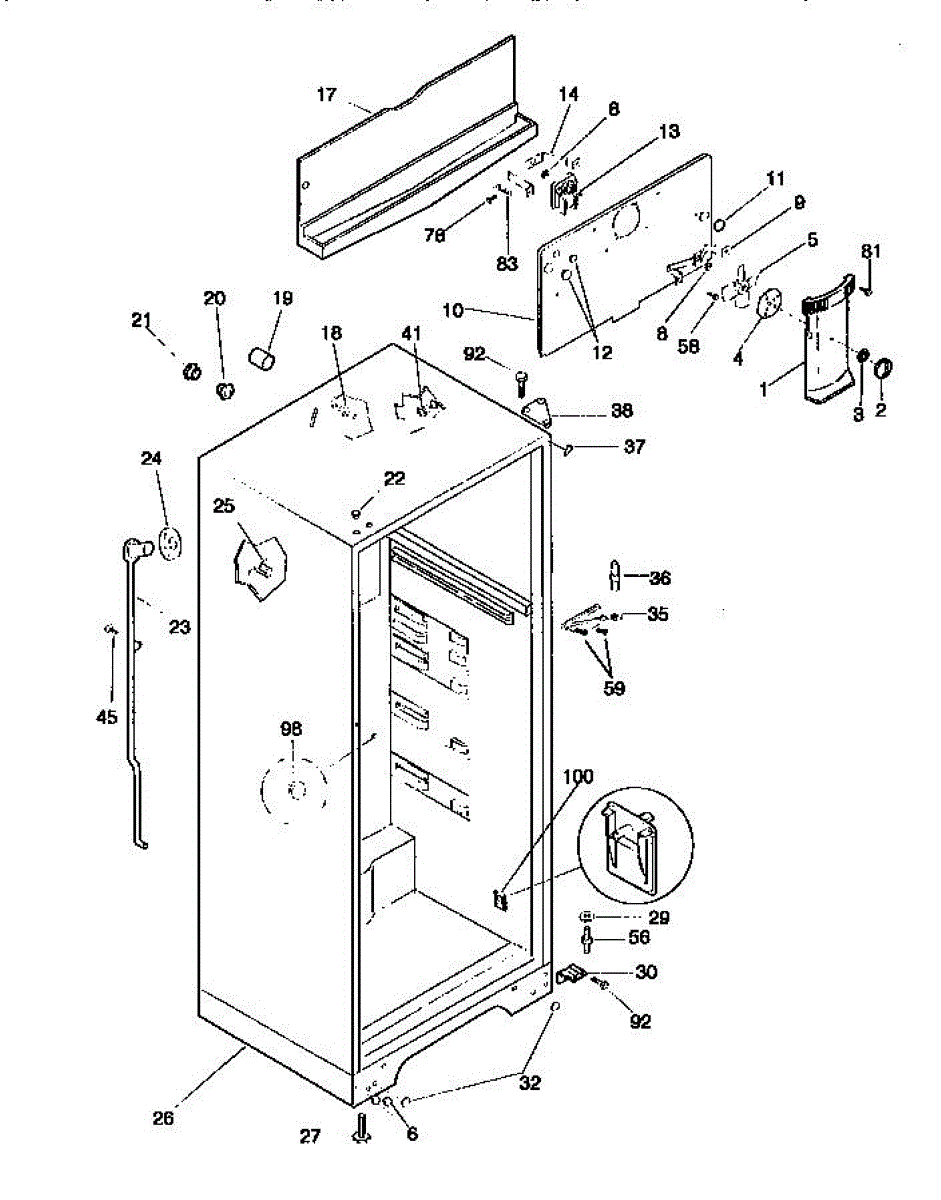

Parts for Kenmore 253.9366016 (2539366016, 253 9366016): Cabinet Parts

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

Covers the factory test opening on your refrigerator cabinet or liner. Replace if missing, cracked, or damaged to restore a finished look and seal.

Fix squealing freezer noise or warm fridge temps? Your evaporator fan motor may have failed. Most DIYers replace this in 10-15 minutes with basic tools.

Almond button plug insert that covers upper hinge mounting holes on refrigerator cabinets. Replace when original plug is cracked, missing, or discolored.

White plastic button plug that covers unused hinge holes on refrigerator doors. Replace if cracked, missing, or discolored for a clean finished look.

This left-side tapping plate/gusset is a metal mounting bracket that reinforces appliance panels and hinge areas, restoring secure attachment and alignment for doors or panels. It helps reduce wobble and maintains proper fit where the original bracket is damaged or worn. What it does:

• Reinforces and secures hinge or panel attachment points to restore alignment
• Provides a threaded or tapped surface for fasteners where sheet metal cannot accept screws
• Stops movement or sagging that can cause gaps, noise, or poor door sealing
• Helps prevent further damage to the cabinet or door mounting area

• Always disconnect power (and water, if applicable) before beginning repairs
• Inspect mounting holes and surrounding metal; remove any damaged fasteners or debris before installing
• Use the correct replacement screws and hand-tighten, then torque to manufacturer specs if available; do not over-tighten
• If the cabinet or hinge area is severely corroded or stripped, additional repair or reinforcement may be required

Center hinge pin that secures and aligns the middle door hinge on your refrigerator. Replace when worn, damaged, or missing to restore door support.

This cabinet corner trim restores the finished edge where two cabinet panels meet, covering exposed corners and improving the appliance's appearance. It's a direct-replacement trim piece that helps keep panels aligned and protected from chips. What it does

• Covers and protects exposed cabinet corners from chips, dings and wear
• Hides gaps where cabinet panels meet for a neater appearance
• Helps secure and align adjacent cabinet or console panels
• Useful when original trim is cracked, broken, bent or missing

• Remove any adjacent panels or screws that block access before installing the trim
• Align trim with cabinet edge and press or fasten per the original attachment method
• Use only the OEM replacement part to ensure proper fit; do not force or bend the trim
• Disconnect power before removing panels

Tapping plate that mounts to the freezer cabinet structure. Replace this metal plate if it's cracked, bent, corroded, or missing to restore proper assembly.

Rubber grommet cushions and seals freezer components, reducing vibration and preventing wear where wiring or rods pass through. Replace if cracked or worn.

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Lower hinge pin secures the refrigerator door to the cabinet, acting as the pivot point. Replace if worn, damaged, or broken to restore smooth operation.

Secures panels, brackets, and handles in refrigerators and other appliances. Replace missing or stripped screws to restore secure mounting.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Replaces a worn, cracked, or missing push-cap on your refrigerator's control panel. Restores the protective cover over switches and buttons.

The Crisper Shelf Support is an OEM part for Frigidaire refrigerators. It is designed to hold the crisper shelf securely in place, providing stable support for the storage of fruits and vegetables.

Over time, the crisper shelf support can become worn or damaged due to regular use, heavy loads, or accidental impacts. If the support breaks or fails, it can lead to an unstable or sagging crisper shelf.

Symptoms of a bad crisper shelf support include:

• The crisper shelf not sitting level
• The shelf falling out of place or not staying securely in position
• Difficulty in inserting or removing the crisper drawer
• Visible cracks or damage to the support

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
