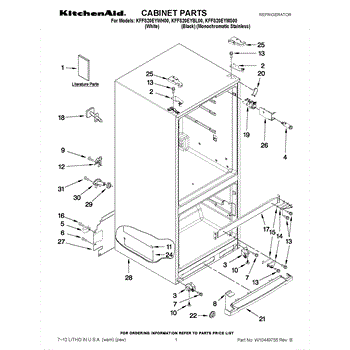

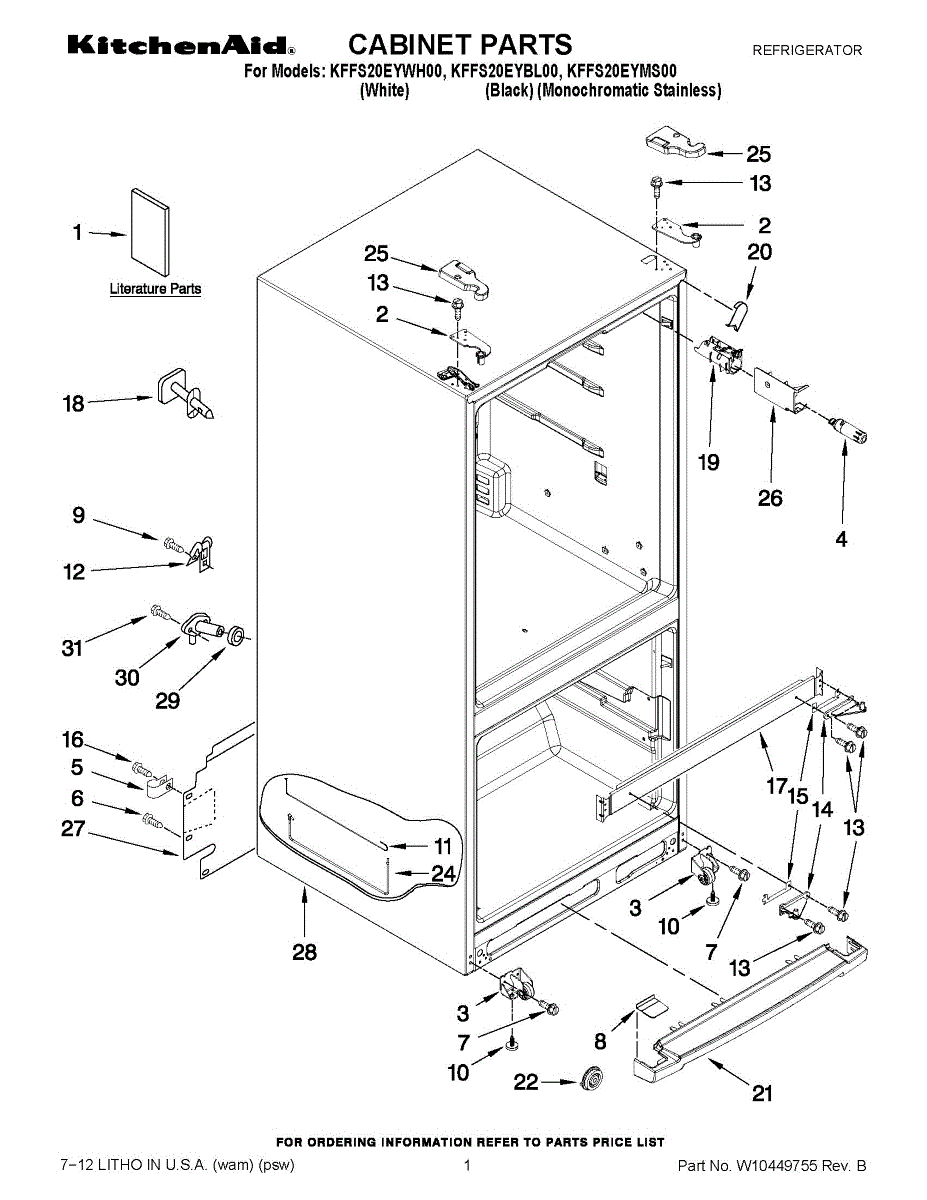

Parts for Kitchenaid KFFS20EYMS00: 01 - Cabinet Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

Top hinge assembly restores proper support and a smooth pivot for the refrigerator door, helping maintain alignment and a tight seal. Use this exact replacement when a top hinge is bent, worn, or causing door sag. What it does:

• Provides the upper pivot point that supports the refrigerator door and enables smooth opening and closing.
• Restores proper door alignment to help eliminate sagging, uneven gaps, or rubbing at the top edge.
• Replaces worn, bent, or damaged hinge components that cause wobble or inconsistent door movement.
• Works with factory mounting locations and hardware to return the door to intended operation.

• Disconnect power to the appliance and remove items from the door before beginning work.
• Support the door (have a second person assist) when removing or installing the top hinge to prevent injury or damage.
• Use appropriate hand tools; snug mounting screws securely but avoid over-tightening.

This door hinge supports the appliance door and provides a smooth pivot point so it opens and closes correctly. A worn hinge can cause sagging, rubbing, or poor sealing that affects performance and safety. What it does:

• Supports and guides the door for smooth opening and closing
• Helps maintain correct door alignment and sealing
• Common symptoms include door sagging, rubbing/binding, squeaking, or not closing flush
• Replace if the hinge is bent, cracked, loose, or excessively worn

• One door hinge

• Disconnect power to the appliance before servicing
• Support the door during removal/installation; some hinges are spring-loaded—use caution
• Remove any panels/trim as needed and transfer spacers/bushings from the old hinge if present
• Adjust mounting points as needed per the service manual

This front roller assembly replaces a worn wheel/bracket so the appliance or drawer moves smoothly and stays properly supported. Restore easy glide and alignment to reduce drag, noise, and strain during everyday use.

• Supports the front of the cabinet or drawer and allows smooth rolling
• Helps maintain proper alignment and level during movement
• Reduces scraping, squeaking, or hard-to-move operation
• Common signs of failure: broken/missing wheel, bent bracket, uneven stance, or dragging

• Disconnect power before servicing; shut off water or gas if applicable. Use help when moving heavy appliances
• Support the drawer or appliance and access the front roller mount
• Remove retaining fasteners, noting orientation; transfer any reusable hardware
• Install and secure the new assembly, then check for smooth travel and proper alignment/level

A front roller assembly that supports the dryer's drum edge to help the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and helps reduce rubbing, squeaks, and uneven spinning. What it does:

• Supports the front of the dryer drum so it rotates freely and stays centered.
• Reduces noise and vibration caused by worn or rough rollers.
• Prevents drum wobble that can cause rubbing against the cabinet or seals.
• Helps the drum turn smoothly so airflow and drying performance remain consistent.

• Disconnect power before any service. For gas dryers, turn off gas supply if required by your local codes.
• Remove the dryer front panel or cabinet as required to access the drum; support the drum while removing and installing the roller.
• Inspect related parts (rear roller/glides, drum seals, belt) and replace if worn to avoid repeat failures.
• Use common hand tools; do not force parts. Follow OEM service instructions for torque/fastening details.

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This grille enclosure replaces a damaged lower front grille to restore the appliance's appearance and protect internal components. It provides a secure cover that helps direct airflow and prevents debris from entering the cabinet. What it does:

• Covers and protects lower front components from dirt, dust and accidental contact
• Helps direct airflow around vents and intake areas for proper operation
• Restores a finished, gap-free appearance when the original grille is cracked or broken
• Reduces rattling caused by loose or damaged grille pieces

• One lower front grille enclosure

• Disconnect power before starting any repair to avoid electrical shock
• Remove nearby panels or kickplate screws/clips as needed for access
• Align tabs and secure with the factory screws or clips; do not force or bend mounting tabs

Size: 8-18 x 1/2 inch.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This water inlet tube routes the appliance's water from the external supply to the internal valve and components, restoring proper water flow for dispensing and ice-making when the original tube is damaged or leaking. Easy replacement for common leak issues. What it does:

• Directs water from the household supply to the appliance's internal water valve and dispenser/ice system.
• Replaces cracked, split, or kinked tubing that can cause visible leaks or reduced water flow.
• Helps stop dripping or puddling under the appliance when the original tube is compromised.
• Maintains a sealed water path to prevent contamination and ensure consistent water delivery.

• One replacement water inlet tube

• Disconnect power and shut off the water supply before starting any work.
• Verify fittings and orientation match your appliance before tightening; use appropriate tools to avoid damaging connections.
• Inspect adjacent seals and clamps and replace if worn to ensure a leak-free installation.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This center door hinge assembly keeps the refrigerator doors aligned and able to pivot smoothly for reliable opening and closing. It replaces a worn or damaged center hinge to restore proper door operation and fit. What it does:

• Provides the central pivot point that supports and aligns the refrigerator door
• Restores correct door swing and helps maintain an even door-to-frame seal
• Helps reduce rubbing, sagging, or misalignment that can cause closing issues
• Works with existing hinge pins and mounting hardware to maintain door stability

• Disconnect power to the appliance before beginning work.
• Support the door while removing or installing the hinge to prevent dropping or damage.
• Keep original screws and pins if they remain undamaged; replace any stripped fasteners.

This hinge center assembly connects and supports the refrigerator door hinge, restoring proper door alignment and smoother opening. Use it when the door is sagging or not closing securely to improve sealing and operation. What it does:

• Provides the central pivot point for the door hinge and helps keep the door aligned.
• Restores smooth opening/closing when a cracked, bent, or worn hinge causes binding or grinding.
• Helps correct door sag and poor sealing that can lead to uneven temperatures or drafts.
• Secures the hinge pin and attaches the door hinge to the cabinet in the center hinge location.

• Disconnect power to the appliance before beginning work and follow all safety precautions.
• Support the door while removing hinge fasteners to prevent sudden movement or damage.
• Remove any hinge covers or trim as needed; transfer existing hinge hardware unless the replacement includes it.
• Reassemble carefully, align the door, and tighten fasteners securely without over-torquing.

A center hinge spacer that positions and centers the door hinge for proper alignment and smooth operation. Replaces a worn or missing spacer to help restore correct door spacing and reduce sag or rubbing. What it does:

• Keeps the center hinge at the correct distance to maintain door alignment and even gaps.
• Helps the door open and close smoothly by preventing metal-on-metal contact.
• Reduces door sag, uneven closing, and rubbing along the cabinet.
• Protects hinge components from premature wear by maintaining correct spacing.

• Disconnect power to the appliance and remove any contents from the door before starting.
• Support the door while loosening or removing hinge fasteners to prevent injury or damage.
• Install the spacer in the same orientation as the original; replace any damaged screws or hardware.
• Tighten fasteners securely but avoid overtightening; check door alignment and operation after installation.

Size; 8-18 x 1/2 inch.

This replacement housing serves as the structural cover/mount for a specific appliance assembly. Replacing a cracked or damaged housing restores secure mounting and protection so components stay aligned and operate as intended. What it does:

• Holds and positions the related components for correct operation
• Shields internal parts and wiring from impact and vibration
• Restores proper fit when the original housing is cracked, warped, or broken
• Common symptoms include loose/misaligned parts, rattling noises, broken tabs, or visible damage in the affected area

• 1 housing

• Disconnect power; if the serviced area ties into water, shut off the water supply
• Wear cut-resistant gloves; edges and surrounding sheet metal can be sharp
• Transfer any sensors, seals, or hardware from the old housing to the new one
• Reuse existing screws/clips; align carefully and do not overtighten, then test operation

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

This toe grille covers the lower front of your refrigerator and allows proper ventilation to the condenser compartment. Replacing a cracked or missing grille restores a clean, finished look while helping maintain clear airflow at the base.

• Covers and finishes the lower front opening of the cabinet
• Directs intake air to the condenser area for correct ventilation
• Helps keep debris from entering the compartment under the unit
• Common symptoms: visible cracks or broken tabs, grille won't stay attached, missing piece, rattling at the base

• Disconnect power and wear work gloves for safety
• Remove the old grille by releasing side clips or removing the mounting screws (varies by model)
• Align the new grille and press to engage clips or reinstall screws; ensure it's secure and unobstructed
• Keep the front vent area clear after installation to maintain airflow

This toe grille is the lower front kick panel that covers the refrigerator's base and leveling feet. It restores a clean, finished look and helps direct airflow to the condenser area for proper cooling performance.

• Covers the bottom front opening and protects components from bumps and debris
• Helps channel air across the condenser area
• Common signs it's needed: cracked or broken panel, missing grille, difficulty keeping grille attached
• Cosmetic damage or loose fit at the base of the refrigerator

• Unplug the appliance before servicing
• Open the doors to relieve pressure on the grille, then release retaining tabs or screws
• Align tabs and snap or screw the new grille into place
• Verify doors open/close freely and grille is secure

The Reservoir is an OEM part for Whirlpool refrigerators. This partis responsible for storing and dispensing water for your refrigerator's water and ice dispenser. It ensures a steady flow of water to the dispenser, allowing you to enjoy refreshing drinks and ice cubes whenever you need them.

A bad water reservoir and filter outlet tube can occur due to damage, leaks, or blockages. If you notice symptoms such as reduced water flow, water leaks, or inconsistent water dispensing, it may be time to replace the water reservoir and filter outlet tube with this genuine OEM part..

Symptoms of a bad part include:

• Reduced water flow from the dispenser
• Water leaks around the dispenser area
• Inconsistent or intermittent water dispensing

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: White / Left Hand

Color: White / Right Hand

Color: Black / Right Hand

Color: Black / Left Hand

Color: Grey / Left Hand

Color: Grey / Right Hand

This filter cover secures the appliance's filter element, keeping debris out of the sump and maintaining proper water flow for efficient cleaning. Replaces a worn or cracked cover to help restore normal filter function and reduce recurring clogs. What it does:

• Secures and protects the filter assembly from food particles and large debris
• Helps maintain correct water circulation through the filter area
• Prevents loose debris from entering the pump or spray system
• Can resolve symptoms like visible cover damage, persistent clogs, or debris in the sump

• One filter cover

• Turn off power to the appliance before accessing internal components
• Remove the old cover, clean the filter area, and snap or fasten the new cover into place per manufacturer guidance
• Do not force the cover; verify proper seating to avoid leaks or damage

This cover-unit is the outer housing cover that protects internal components and provides a finished appearance. It keeps wiring and mechanisms enclosed and helps maintain safe, reliable operation. What it does:

• Shields internal parts from dust, debris and accidental contact
• Helps maintain proper airflow and component spacing
• Restores the appliance's exterior appearance after panel damage or disassembly
• Reduces the risk of snagging or exposed wiring near service areas

• Disconnect power before servicing to avoid electrical shock
• Use basic hand tools; follow for correct removal and reinstallation sequence
• Inspect mounting clips and fasteners; replace any broken hardware for a secure fit
• Handle carefully to avoid scratching the finish or bending mounting tabs

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

The Fill Tube is an OEM part for Whirlpool-brand refrigerator ice makers and water dispensers. It facilitates filling of the ice mold tray with water during the freezing process.

Symptoms of a bad fill tube include:

• Ice maker not filling molds properly or producing ice inconsistently
• Water dispenser failing to function or dispensing slowly
• Leaks noticed around the fill tube area
• Buildup of mineral deposits blocking water flow

Over many years of repeated use, mineral deposits inside can clog the tiny fill tube openings. Bends or cracks may also form from the continuous impact of ice during the ejection cycle.

Causes of a bad fill tube are usually just standard wear issues like mineral buildup reducing water flow or plastic material fatigue rendering it brittle.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
